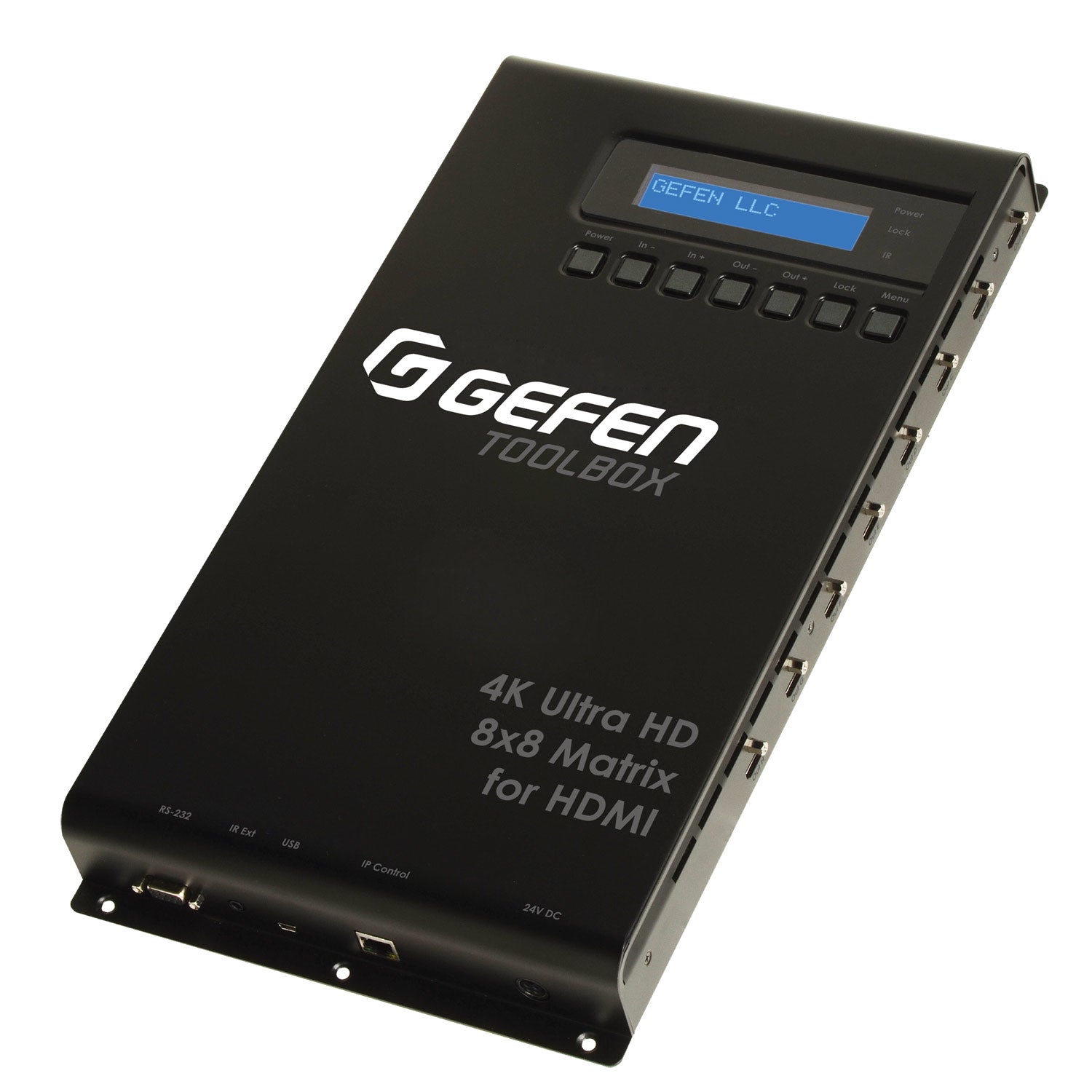

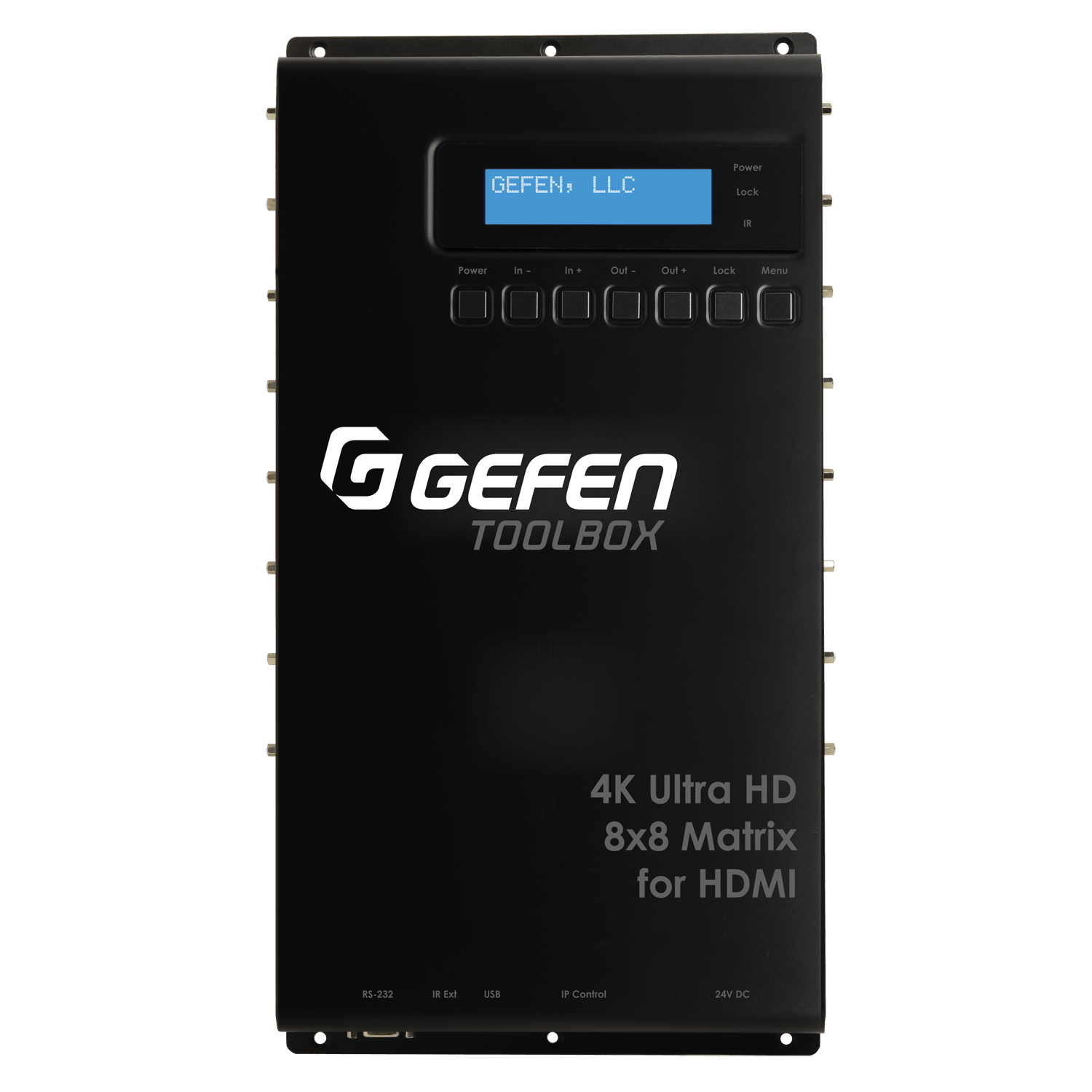

ToolBox 4K Ultra HD 8x8 HDMI Matrix Switcher w/ HDMI 2.0 & HDCP 1.4 (GTB-HD4K2K-848-BLK)

GTB-HD4K2K-848-BLK

The Gefen ToolBox 4K Ultra HD 8x8 HDMI Matrix provides a compact and powerful solution for routing high-definition video and audio. This professional HDMI switcher allows you to connect up to eight 4K Ultra HD sources and distribute them independently to any of eight 4K displays. Supporting resolutions up to 4K DCI (4096 x 2160) and 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), this HDCP 1.4 compliant matrix is ideal for applications requiring pristine video quality. With advanced features like EDID management and pass-through of 7.1-channel LPCM and HBR digital audio, it offers a flexible and robust hub for any professional AV system.
$3,494.40
ToolBox 4K Ultra HD 8x8 HDMI Matrix Switcher w/ HDMI 2.0 & HDCP 1.4 (GTB - HD4K2K - 848 - BLK) - GTB - HD4K2K - 848 - BLK - Gefen
ToolBox 4K Ultra HD 8x8 HDMI Matrix Switcher w/ HDMI 2.0 & HDCP 1.4 (GTB - HD4K2K - 848 - BLK) - GTB - HD4K2K - 848 - BLK - Gefen
ToolBox 4K Ultra HD 8x8 HDMI Matrix Switcher w/ HDMI 2.0 & HDCP 1.4 (GTB - HD4K2K - 848 - BLK) - GTB - HD4K2K - 848 - BLK - Gefen
ToolBox 4K Ultra HD 8x8 HDMI Matrix Switcher w/ HDMI 2.0 & HDCP 1.4 (GTB - HD4K2K - 848 - BLK) - GTB - HD4K2K - 848 - BLK - Gefen

Key Features

Flexible 8x8 Routing: Independently routes any of eight 4K Ultra HD sources to any of eight connected displays.



High-Resolution 4K Support: Supports resolutions up to 4K DCI (4096times2160 at 24 Hz), 4K Ultra HD (3860times2160 at 60 Hz, 4:2:0 color space), 1080p Full HD, and 1920times1200 (WUXGA).



Advanced EDID Management: Ensures rapid and reliable integration of sources and displays for seamless operation.



Immersive Audio Pass-Through: Supports LPCM 7.1, Dolby® TrueHD, Dolby® Digital Plus, and DTS-HD Master Audio™.



Comprehensive Control Options: Control the matrix via front-panel push buttons, IR remote control, RS-232 serial interface, or IP control using Telnet, UDP, and the built-in web server interface.



Deep Color and 3D Ready: Supports 12-bit Deep Color up to 1080p Full HD and features full 3D pass-through.



Effortless IP Configuration: Gefen Syner-G™ software simplifies initial IP configuration with its Discovery and Show-Me features.



Field-Upgradeable Firmware: Update the firmware in the field via the web server interface or USB port to keep the unit current.



Convenient Form Factor: Features a compact, surface-mountable enclosure, making it a great alternative to larger rack-mounted units.

How It Works

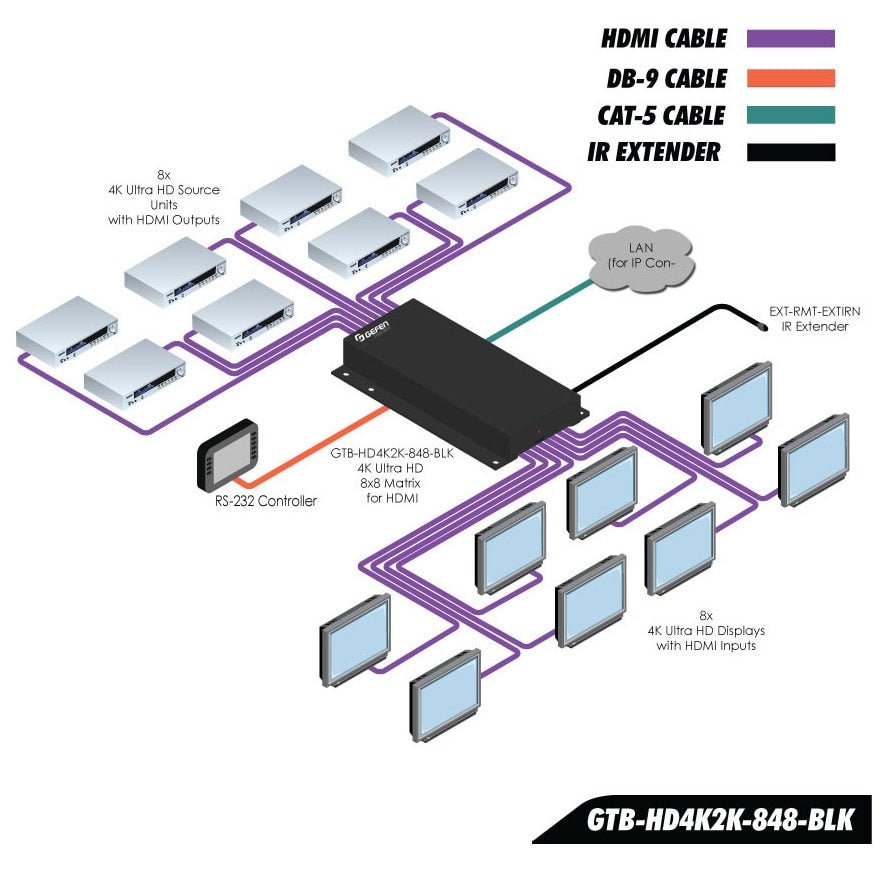

The Gefen 4K Ultra HD 8x8 Matrix for HDMI operates as a central hub for your AV signals. First, connect up to eight source devices, such as Blu-ray players or media servers, to the matrix inputs using standard HDMI cables. Next, connect up to eight displays to the matrix outputs. Once powered on, you can control the routing using the front-panel buttons or the included IR remote. For advanced control and automation, connect the matrix to a computer or control system via the RS-232 port, or connect it to your Local Area Network (LAN) using an Ethernet cable for IP control via Telnet, UDP, or the intuitive built-in web server interface.

Additional Information

Specifications

Maximum Pixel Clock: 300 MHz

Video Input Connectors: 8 x HDMI Type A, 19-pin, female, locking

Video Output Connectors: 8 x HDMI Type A, 19-pin, female, locking

USB Port: 1 x Mini-B

RS-232 Port: 1 x DB-9, female

Ethernet Port: 1 x RJ-45

IR Extender Port: 1 x 3.5mm mini-stereo jack

Power Supply: 24V DC

Power Consumption: 27W maximum

Operating Temperature: +32 to +122 °F (0 to +50 °C)

Operating Humidity: 5% to 90% RH, non-condensing

Storage Temperature: -4 to +140 °F (-20 to +60 °C)

Storage Humidity: 5% to 95% RH, non-condensing

MTBF: 50000 hours

Dimensions (W x H x D): 9.3” x 17.9” x 1.75” (236mm x 454mm x 44mm)

Unit Weight: 3.9 lbs. (1.8 kg)

UPC: 888814217599

What's in the Box

1 x 4K Ultra HD 8x8 Matrix for HDMI

1 x IR Remote

1 x 24V DC Power Supply

1 x AC Power Cord

1 x Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen GTB-HD4K2K-848-BLK Datasheet
Gefen GTB-HD4K2K-848-BLK Manual
Gefen GTB-HD4K2K-848-BLK Declaration of Conformity
