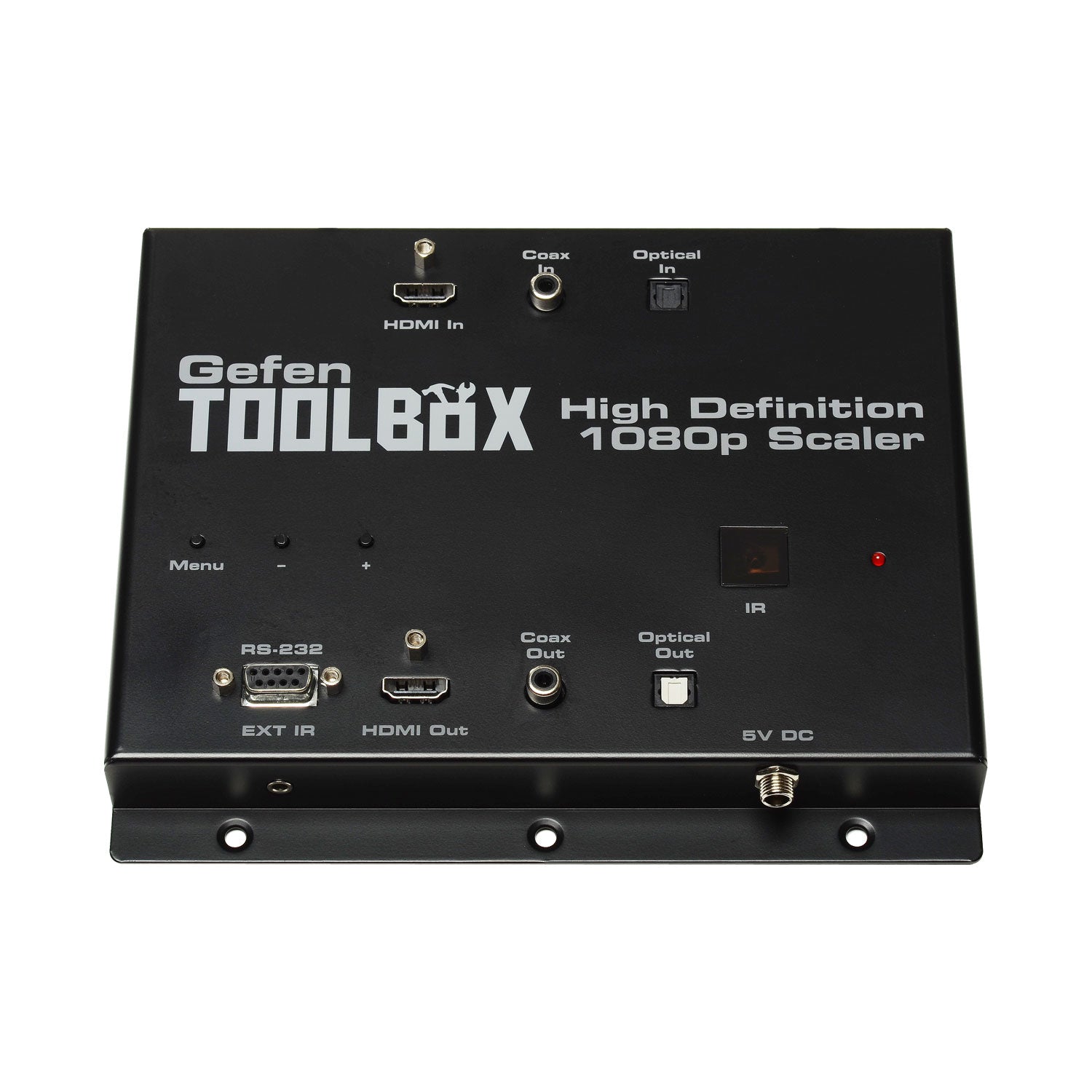

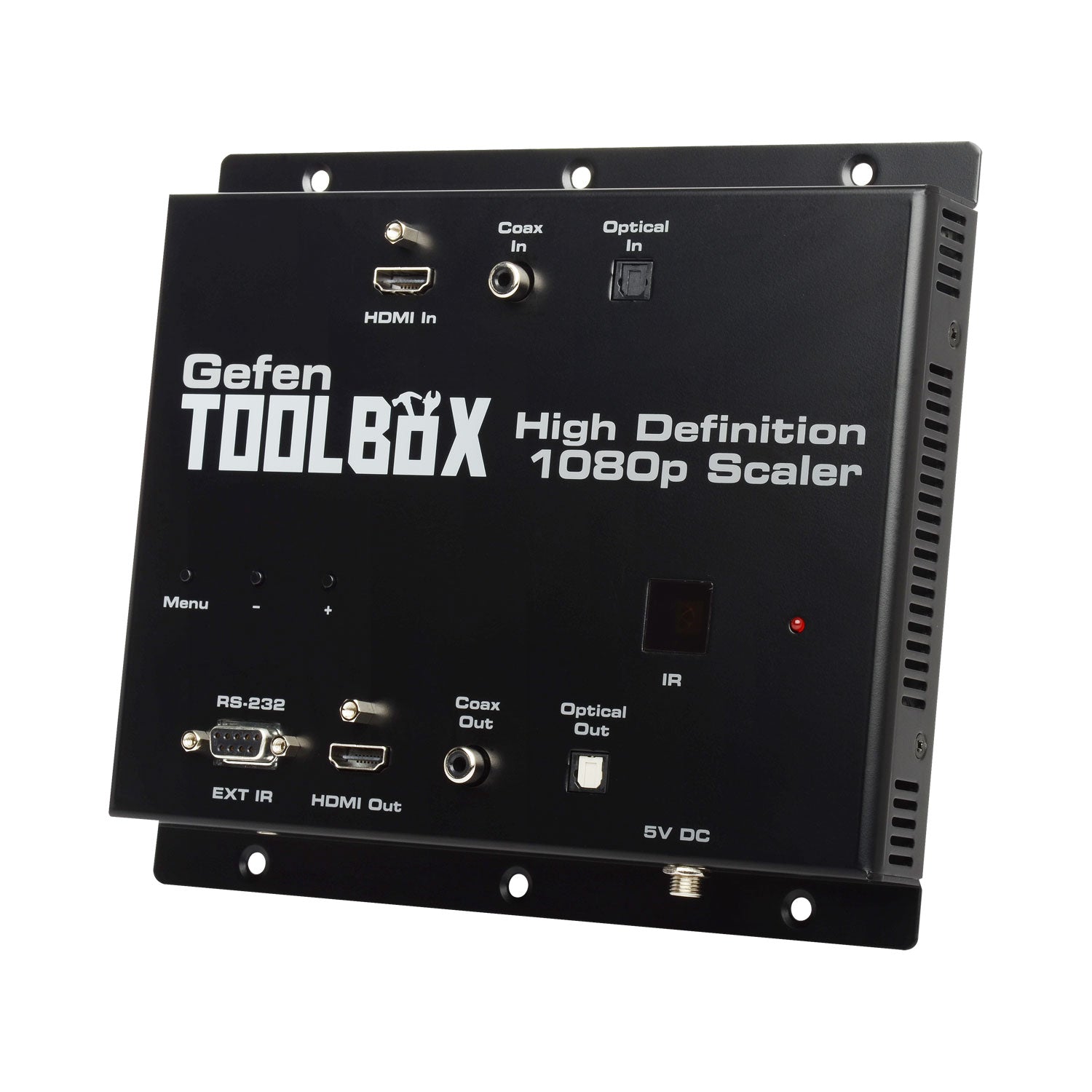

ToolBox High Definition 1080p HDMI Video Scaler (GTB-HD-1080PS-BLK)

Name: ToolBox High Definition 1080p HDMI Video Scaler (GTB-HD-1080PS-BLK)
Brand: Gefen
SKU: GTB-HD-1080PS-BLK
Price: 460.95 USD
Availability: InStock

GTB-HD-1080PS-BLK

The Gefen ToolBox High Definition 1080p Scaler is a versatile video processor that allows you to upscale or downscale a single HDMI or DVI source to a pristine HDMI output. It is engineered to deliver optimal image quality by bypassing a display's internal scaler and outputting video perfectly matched to the display's native resolution, supporting up to 1080p Full HD and Deep Color. This unit is ideal for professional AV systems, such as those using an HDMI matrix with multiple displays that have different resolution capabilities. By automatically detecting the display's maximum resolution or allowing for manual adjustments, the scaler ensures a reliable, high-quality video signal is delivered across any installation.

$460.95

ToolBox High Definition 1080p HDMI Video Scaler (GTB - HD - 1080PS - BLK) - GTB - HD - 1080PS - BLK - Gefen

Key Features

Versatile Video Scaling: Upscale or downscale an HDMI or DVI input to match the native resolution of the connected display , supporting output resolutions up to 1080p Full HD and 2K. This feature is ideal for use in distribution systems where multiple displays have different maximum resolutions.

Advanced Video Processing: Features a proprietary Advanced Color Engine for brilliant color, intensified contrast, and vivid skin tones. The unit also includes a high-performance frame rate conversion engine , 3D noise reduction , and automatic 3:2 and 2:2 pull-down detection for optimized video quality.

Flexible Audio Integration: Allows for selectable audio input from HDMI, TOSLINK, or S/PDIF sources. It supports high bit-rate audio, Dolby TrueHD, DTS-HD Master Audio, and up to eight channels of LPCM via HDMI. A digital audio delay feature is included to ensure proper audio and video timing.

Broad Signal Compatibility: Supports HDMI and DVI-D signals (via an adapter) and is DVI/HDCP/HDMI compliant.

Comprehensive Control: Can be fully configured through a built-in on-screen display (OSD) menu using the included IR remote. The unit also provides full RS-232 control for integration with third-party automation systems.

Professional Installation Features: Features a compact, wall-mountable design for discreet installation and has field-upgradeable firmware.

How It Works

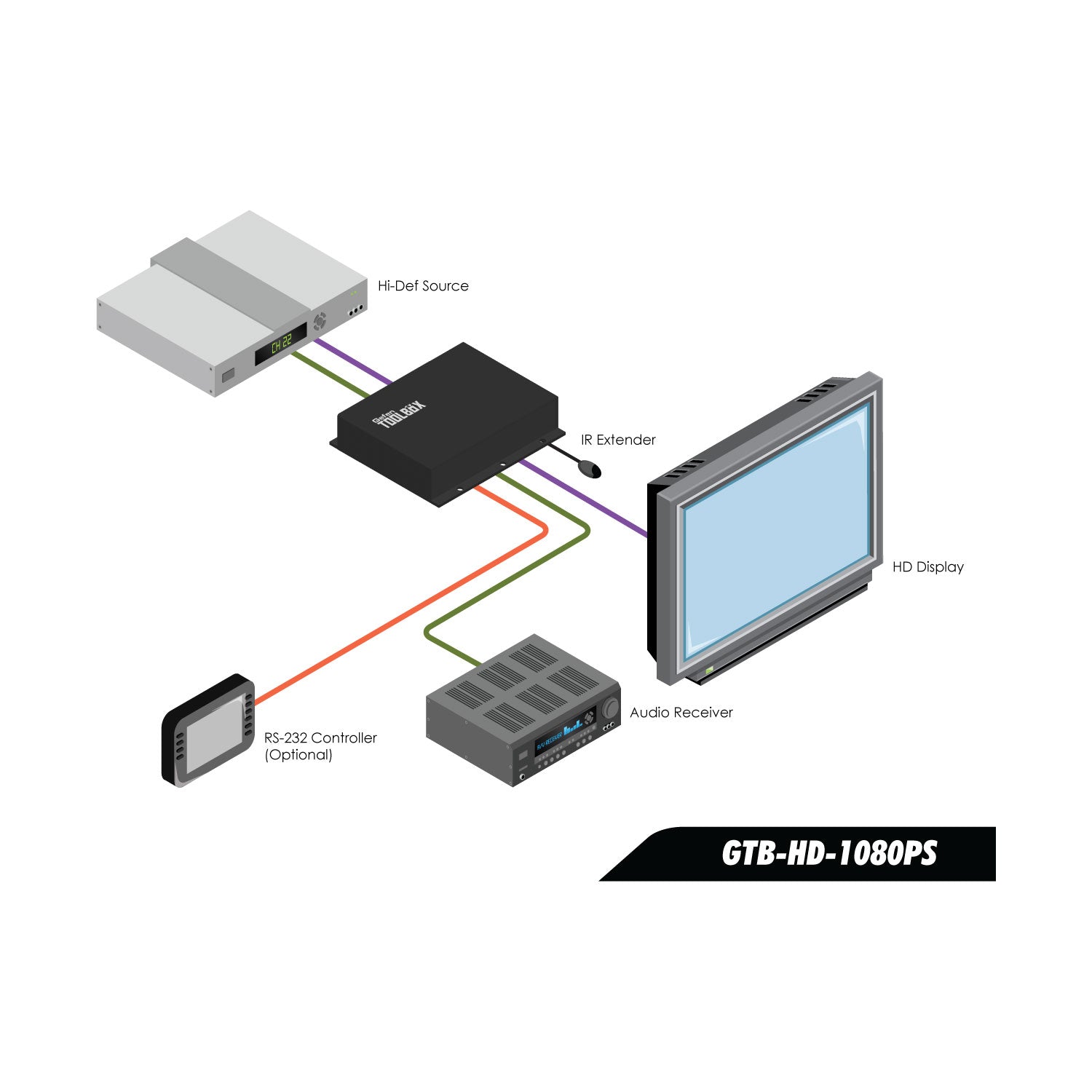

To operate the Gefen ToolBox High Definition 1080p Scaler, connect your HDMI or DVI source to the unit's input and connect the HDMI output to your destination display or distribution system. For audio, you can use the embedded HDMI audio or connect a separate digital audio source via the TOSLINK or S/PDIF ports. The scaler then intelligently processes the signal, automatically detecting the maximum resolution of the connected display and scaling the video to match it perfectly, up to 1080p Full HD. This function bypasses the display's internal scaler, which can often be of lower quality, to deliver the best possible image. This makes the unit an ideal problem-solver in complex setups, such as a matrix system sending one source to multiple displays that do not share the same maximum resolution.

Additional Information

Specifications

Video & Audio

Maximum Resolution: 1080p/1920 x 1200
Digital Maximum Pixel Clock: 165 MHz
Input Video Signal: 1.2 Volts p-p
Input DDC Signal: 5 Volts p-p (TTL)
Audio Inputs: * (1) HDMI Type A 19-pin, female
- (1) TOSLINK Optical
- (1) S/PDIF Coaxial
Audio Outputs: * (1) HDMI Type A 19-pin, female
- (1) TOSLINK Optical
- (1) S/PDIF Coaxial

Control

RS-232 Serial Port: (1) DB-9, female
IR Extender Port: (1) 3.5 mm mini-stereo jack

General

Power Supply: 5V DC, Locking Type
Dimensions (W x H x D): 8" x 7" x 1" (203mm x 178mm x 25mm)
Unit Weight: 1.1 lbs.
Shipping Weight: 4 lbs. (1.8 kg)
UPC: 845344057804

System Requirements

A Source Device: A high-definition source with an HDMI output. DVI sources can also be used with an appropriate adapter.

A Display Device: A high-definition display with an HDMI input. DVI displays are also compatible when used with an adapter.

Cabling: An HDMI cable to connect the source and display. Optional optical (TOSLINK) or coaxial (S/PDIF) cables can be used for separate digital audio connections.

Power: The included 5V DC locking power supply must be connected to the unit and an available electrical outlet.

What's in the Box

(1) Gefen ToolBox High Definition 1080p Scaler

(1) 6 ft. HDMI cable (M-M)

(1) 5V DC Locking Power Supply

(1) IR remote

(1) User Manual

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen GTB-HD-1080PS-BLK Datasheet
Gefen GTB-HD-1080PS-BLK Manual
