Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR (EXT-UHD600-12)

EXT-UHD600-12

Gefen's EXT-UHD600-12 1:2 Splitter for HDMI takes one Ultra Hi-Def source and simultaneously displays it on up to two Ultra HD displays. This splitter goes beyond the requirements of typical 4K systems, delivering stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second, without color subsampling. It supports the high dynamic range (HDR) feature, which allows every subtle gradation of each pixel to be displayed with immersive clarity. Designed to support multiple layers of cascading, this splitter is ideal for large video distribution and signage applications that may include hundreds of displays. The EXT-UHD600-12 supports HDCP 2.2 and the legacy HDCP 1.4, along with 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™.
$388.50
Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR (EXT - UHD600 - 12) - EXT - UHD600 - 12 - Gefen
Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR (EXT - UHD600 - 12) - EXT - UHD600 - 12 - Gefen
Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR (EXT - UHD600 - 12) - EXT - UHD600 - 12 - Gefen
Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR (EXT - UHD600 - 12) - EXT - UHD600 - 12 - Gefen
Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR (EXT - UHD600 - 12) - EXT - UHD600 - 12 - Gefen
Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR (EXT - UHD600 - 12) - EXT - UHD600 - 12 - Gefen

Key Features

1:2 Signal Distribution: Simultaneously displays one Ultra Hi-Def source on up to two Ultra HD displays.



High-Resolution Video: Supports resolutions up to 4K DCI-Cinema (4096×2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860×2160 at 60Hz, 4:4:4), and 1080p Full HD.



HDCP 2.2 & 1.4 Compliant: Supports both the legacy HDCP 1.4 and the modern HDCP 2.2 digital rights management standards.



HDR and Deep Color Support: Delivers High Dynamic Range (HDR) 10-bit Deep Color at 4K 60 Hz 4:2:0 and supports 12-bit Deep Color at 1080p 60 Hz 4:4:4.



Immersive Audio Passthrough: Supports up to 7.1 channels of HBR (High Bit Rate) digital audio formats including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™.



Multi-Layer Cascading: Specifically designed to support multiple layers of splitting for large video distribution and signage applications supporting hundreds of displays.



Advanced EDID Management: Features front-panel EDID and Audio Mode selectors for rapid integration and allows for advanced EDID management and firmware updates via the Gefen Syner-G™ software.



Gefen Long Reach Power (LRP): Provides 500 mA at 5V on the HDMI outputs to power select extender devices through their HDMI input port, eliminating the need for an external power supply.



Legacy DVI Compatibility: Supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920x1200 (WUXGA) when used with HDMI-to-DVI adapters.



Professional Enclosure: Features a compact, low-profile, and surface-mountable enclosure that accommodates locking HDMI cables for secure connections.

How It Works

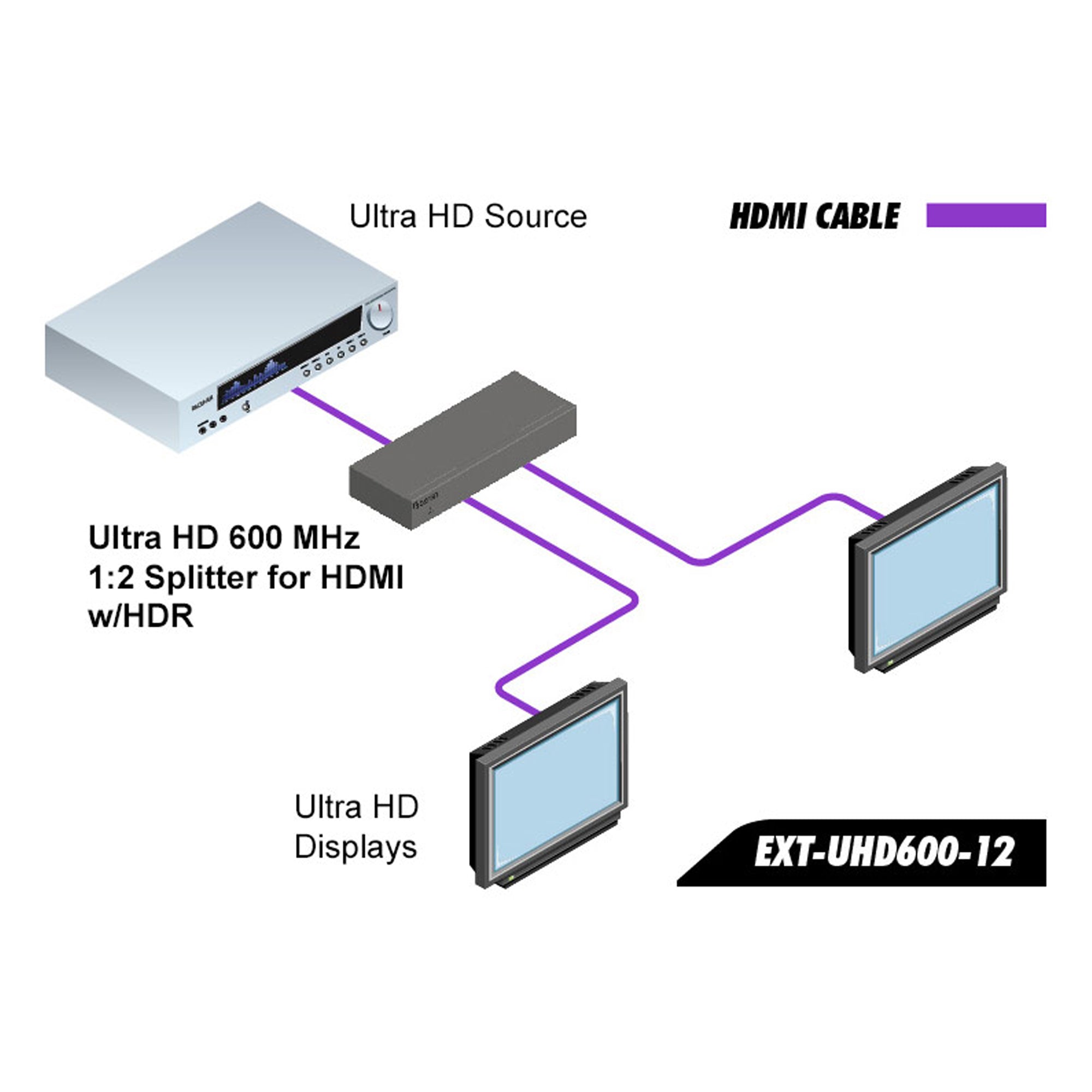

To operate the Gefen EXT-UHD600-12, first connect an Ultra HD source to the HDMI Input port on the unit using a locking HDMI cable. Connect the included 5V DC power supply to the splitter and a live electrical outlet to power the unit. Then, connect up to two Ultra HD displays to the Out 1 and Out 2 ports using HDMI cables. The splitter takes the single high-definition signal from the source and simultaneously distributes it to both connected displays. For large-scale applications requiring more than two displays, an output from the splitter can be connected to the input of another EXT-UHD600 series splitter, creating a cascade that can support hundreds of displays.

Additional Information

Specifications

Supported Formats

  • Resolutions (max.): 4K DCI-Cinema (4096×2160 at 60 Hz, 4:4:4 color space), 4K Ultra HD (3860×2160 at 60Hz, 4:4:4 color space), 1080p Full HD, 1920×1200 WUXGA
  • Audio: LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, DTS-HD Master Audio™

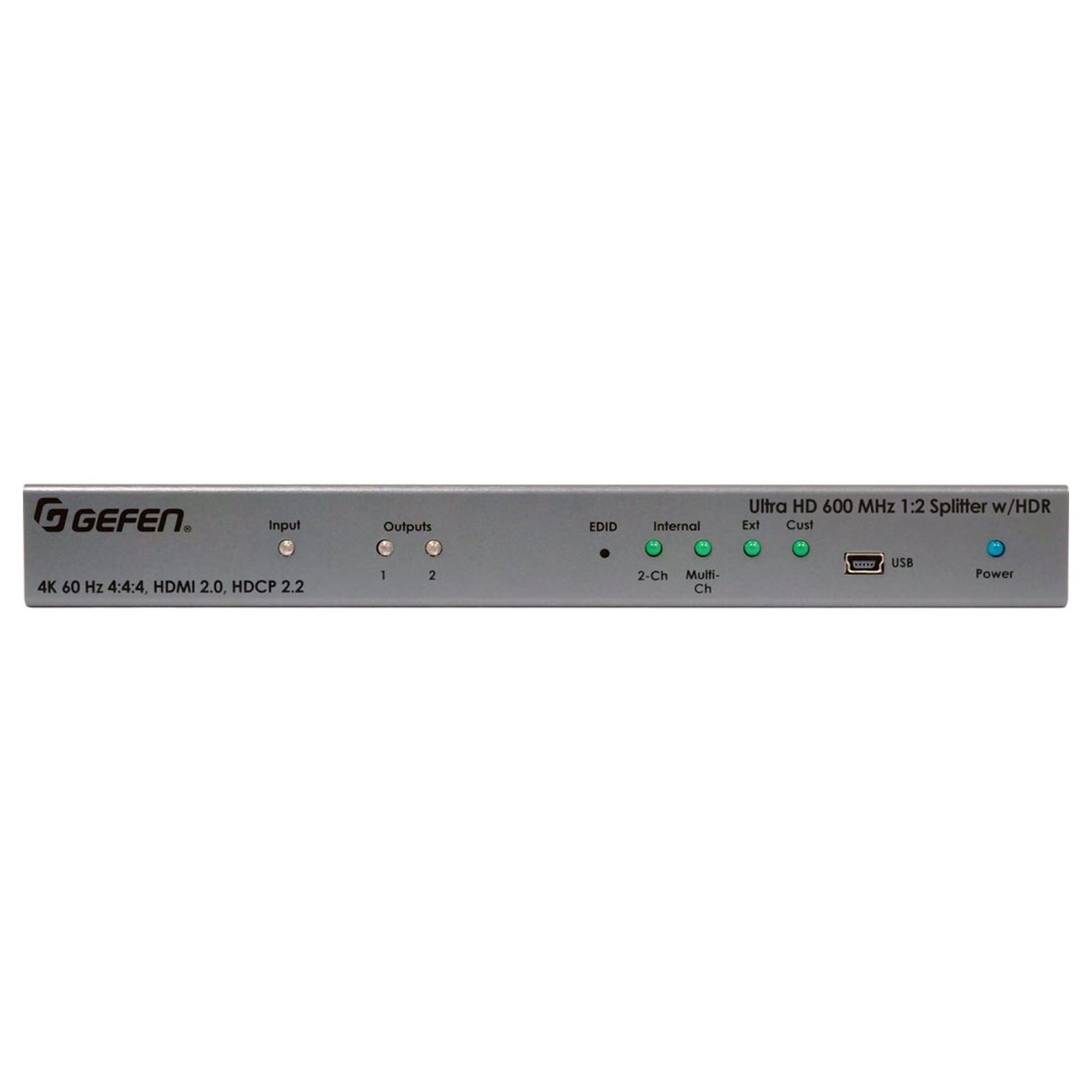

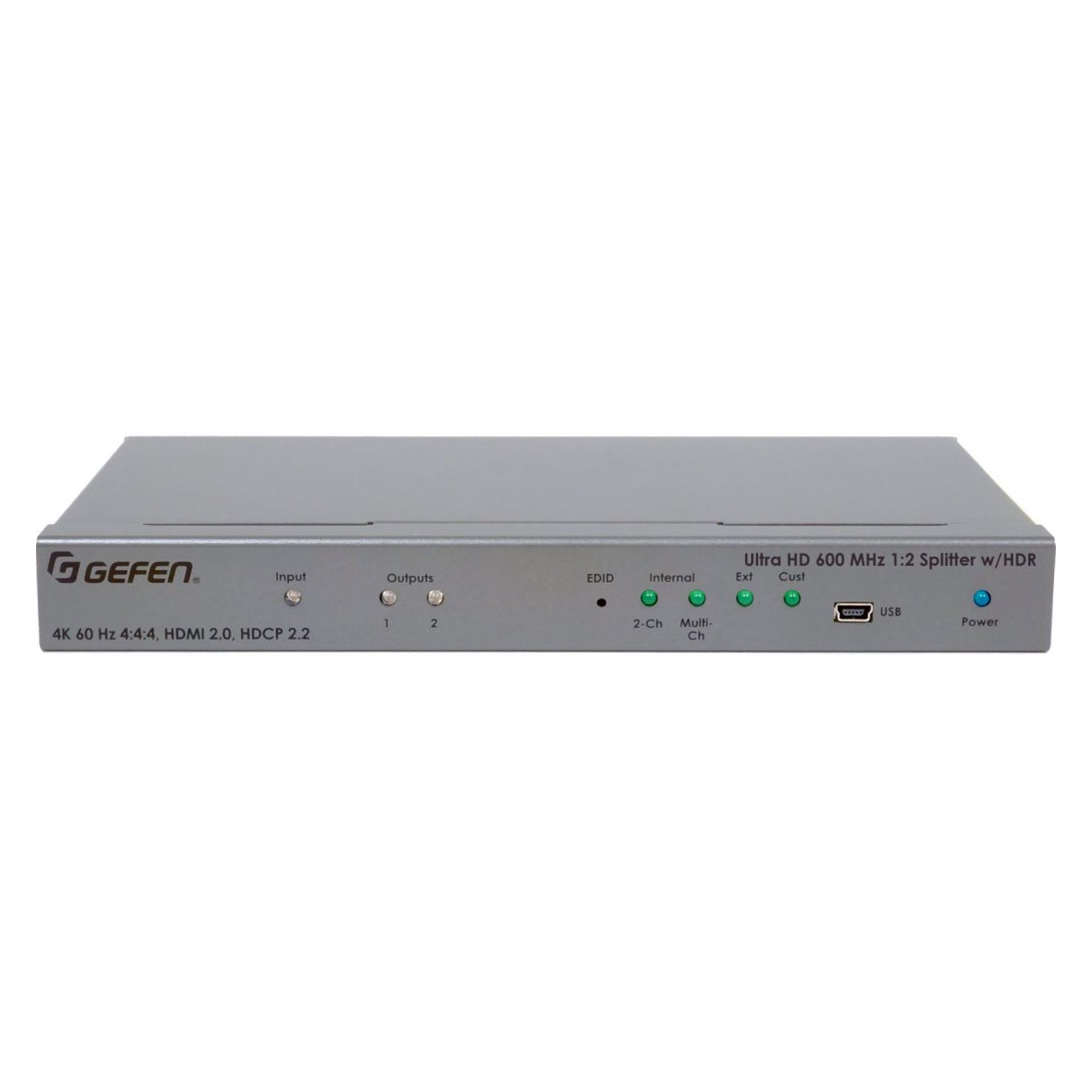

Connectors, Controls, and Indicators

  • HDMI Input Connector: (1) Type A 19-pin female, locking
  • HDMI Output Connectors: (2) Type A 19-pin female, locking
  • USB Port: (1) Mini-B
  • Power Indicator: (1) LED, blue
  • Input Indicator: (1) LED, green
  • Output Indicators: (2) LEDs, green
  • EDID Indicators: (4) LEDs, green
  • EDID Selector Switch: (1) recessed tact switch
  • DC Power Connector: (1) Locking type

Operational

  • Maximum Pixel Clock: 600 MHz
  • Power Supply: 5V DC
  • Power Consumption: 6.5W
  • HDMI Outputs 1 and 2 (Pin 18) Current Capability: 500 mA at 5V
  • Cascading Ability: Typically up to 10 layers without HDR and up to 6 layers with HDR
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 300000 hours

Physical

  • Dimensions (W x H x D): 8.4" x 1" x 3.7" (213mm x 25mm x 93mm), without connectors or feet
  • Net Weight: 0.75 lbs (0.3 kg)
  • Shipping Weight: 2.2 lbs (1 kg)

UPC: 888814272352

System Requirements

For Basic Operation

  • HDMI Source: You need one Ultra HD source device.
  • HDMI Displays: The splitter supports up to two Ultra HD displays.
  • HDMI Cables for Displays: You must provide your own HDMI cables to connect the splitter's outputs to your displays. The manual highly recommends using Gefen Locking HDMI cables for reliable performance with 600 MHz signals.
  • Power: The splitter must be connected to an electrical outlet using the included 5V DC power supply.

For Advanced Configuration

  • Computer: To use the Gefen Syner-G™ software for advanced EDID management or firmware updates, a computer is required.
  • USB Cable: A mini-USB-to-USB cable, which is not included, is needed to connect the splitter to a computer.

What's in the Box

  • 1 x Ultra HD 600 MHz 1:2 Splitter for HDMI w/ HDR
  • 1 x 6 ft locking HDMI cable (CAB-HD-LCK-06MM)
  • 1 x 5V Power Supply w US/EU/UK/AU plugs (EXT-PS526AIP-LP-6)
  • 2 x Surface Mounting L-Brackets
  • 4 x M3 6 mm machine screws for mounting the L-Brackets to the unit
  • 2 x 6-32 5 mm machine screws for mounting the unit to an optional rack shelf
  • 4 x Self-Adhesive Rubber Feet
  • 1 x Quick-Start Guide

Warranty

3 Year Product Warranty

Please see the Gefen Warranty Page for more details.
