Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR (EXT-UHD600-14)

EXT-UHD600-14

The Gefen EXT-UHD600-14 Ultra HD 600 MHz 1:4 Splitter is engineered to distribute a single HDMI 2.0 source to up to four Ultra HD displays simultaneously without any loss of quality. It takes HDMI to its highest specification, delivering stunning 4K DCI-Cinema (4096×2160) and Ultra HD resolution at 60 Hz with 4:4:4 chroma subsampling, along with High Dynamic Range (HDR) support, ensuring the picture is every bit as brilliant as the source. Compliant with both the latest HDCP 2.2 and legacy HDCP 1.4 standards, and supporting high-bit-rate audio formats such as Dolby Atmos® and DTS:X™, this splitter is a seamless solution for new and existing components in any commercial or residential AV system. Designed specifically for large-scale video distribution and signage, the unit supports multiple layers of cascading, making it a flexible and flawlessly performing solution for applications requiring hundreds of displays.
$494.55
Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR (EXT - UHD600 - 14) - EXT - UHD600 - 14 - Gefen
Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR (EXT - UHD600 - 14) - EXT - UHD600 - 14 - Gefen
Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR (EXT - UHD600 - 14) - EXT - UHD600 - 14 - Gefen
Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR (EXT - UHD600 - 14) - EXT - UHD600 - 14 - Gefen
Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR (EXT - UHD600 - 14) - EXT - UHD600 - 14 - Gefen
Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR (EXT - UHD600 - 14) - EXT - UHD600 - 14 - Gefen

Key Features

Quad-Display Output: Simultaneously displays an Ultra Hi-Def source on up to four Ultra HD displays.



UHD/4K and HDR Support: Supports resolutions up to 4K DCI-Cinema (4096×2160 at 60 Hz, 4:4:4) and 4K Ultra HD (3860×2160 at 60Hz, 4:4:4), along with HDR (High Dynamic Range) for stunning picture quality.



HDCP 2.2 Compliant: Supports the latest HDCP 2.2 digital rights management standard, as well as legacy HDCP 1.4, ensuring compatibility with new and existing AV components.



High-Bit-Rate Audio: Supports multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) formats like Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™.



Multi-Layer Cascading: Specifically designed to support multiple layers of cascading, enabling flawless performance in large video distribution and signage applications with hundreds of displays.



Advanced EDID Management: Features robust EDID management for rapid integration of sources and displays, configurable via front-panel controls or the Gefen Syner-G™ software suite.



Long Reach Power (LRP): Provides 5V at 500 mA on two HDMI outputs to power select extender devices directly over the HDMI cable, eliminating the need for external power supplies.



Secure and Compact Design: Features a low-profile, surface-mountable enclosure with locking HDMI and power connectors for secure, professional installations in tight spaces.



Field-Updatable: Firmware can be updated in the field via USB using the Gefen Syner-G™ software, ensuring long-term reliability and compatibility.

How It Works

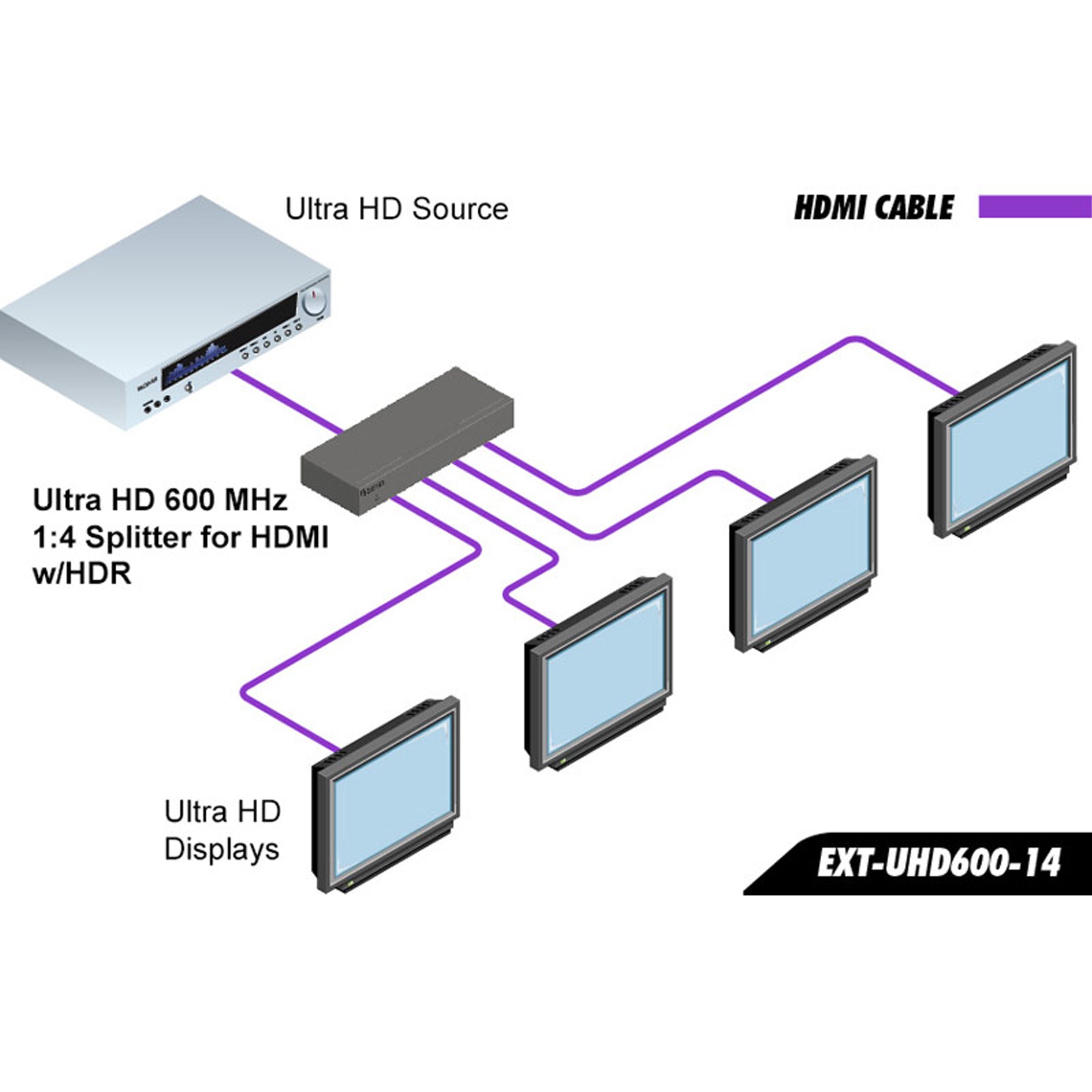

To operate the Gefen EXT-UHD600-14, first connect your Ultra HD source device to the splitter's locking HDMI input port on the rear panel. Next, connect up to four Ultra HD displays to the four corresponding HDMI output ports. Once all devices are connected, plug the included 5V DC locking power supply into the splitter and an available electrical outlet to power the unit. The splitter then takes the single video and audio stream from the source and simultaneously distributes an identical, uncompromised signal to all connected displays. The unit's advanced EDID Management system automatically negotiates the best possible video and audio formats supported by all displays, ensuring a rapid and seamless integration. For larger applications, multiple splitters can be cascaded by connecting an output of one unit to the input of another, allowing a single source to be distributed to hundreds of displays.

Additional Information

Specifications

Operational

  • Maximum Pixel Clock: 600 MHz
  • Resolutions Supported: Up to 4K DCI-Cinema (4096×2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860×2160 at 60Hz, 4:4:4), 1080p Full HD, and 1920×1200 (WUXGA)
  • Audio Supported: Up to 7.1 channels of LPCM, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
  • HDCP Compliance: HDCP 2.2 and 1.4
  • Cascading Ability: Typically up to 10 layers without HDR and up to 6 layers with HDR
  • Power Supply: 5V DC
  • Power Consumption: 7.5W
  • HDMI LRP Current (Outputs 1 & 2): 500 mA at 5V on pin 18
  • Operating Temperature: +32 to +122∘F (0 to +50∘C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185∘F (-20 to +85∘C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 300000 hours

Connectors, Controls, and Indicators

  • HDMI Input Connector: (1) Type A 19-pin female, locking
  • HDMI Output Connectors: (4) Type A 19-pin female, locking
  • USB Port: (1) Mini-B
  • EDID/Audio Selector Switch: (1) recessed tact switch
  • DC Power Connector: (1) Locking type

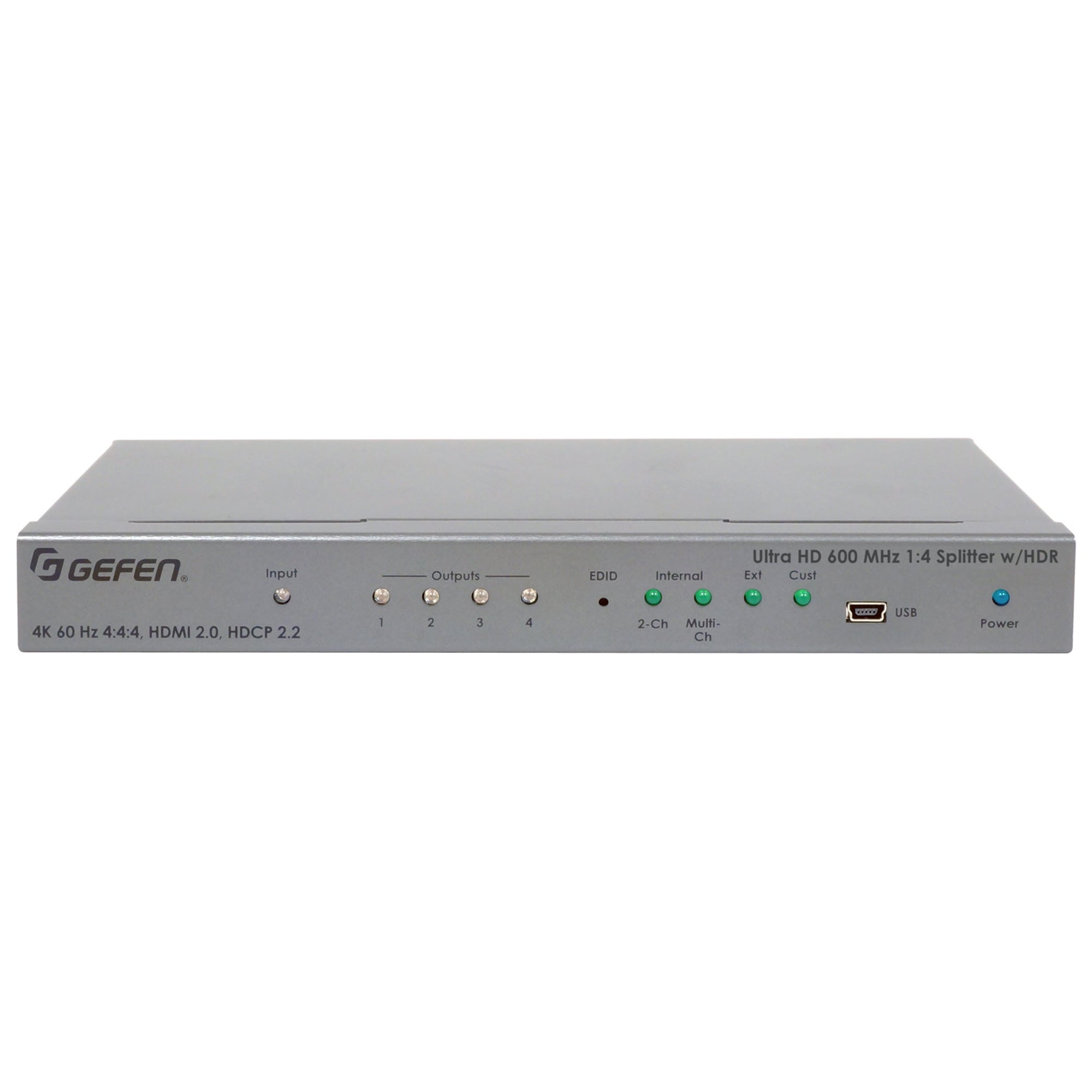

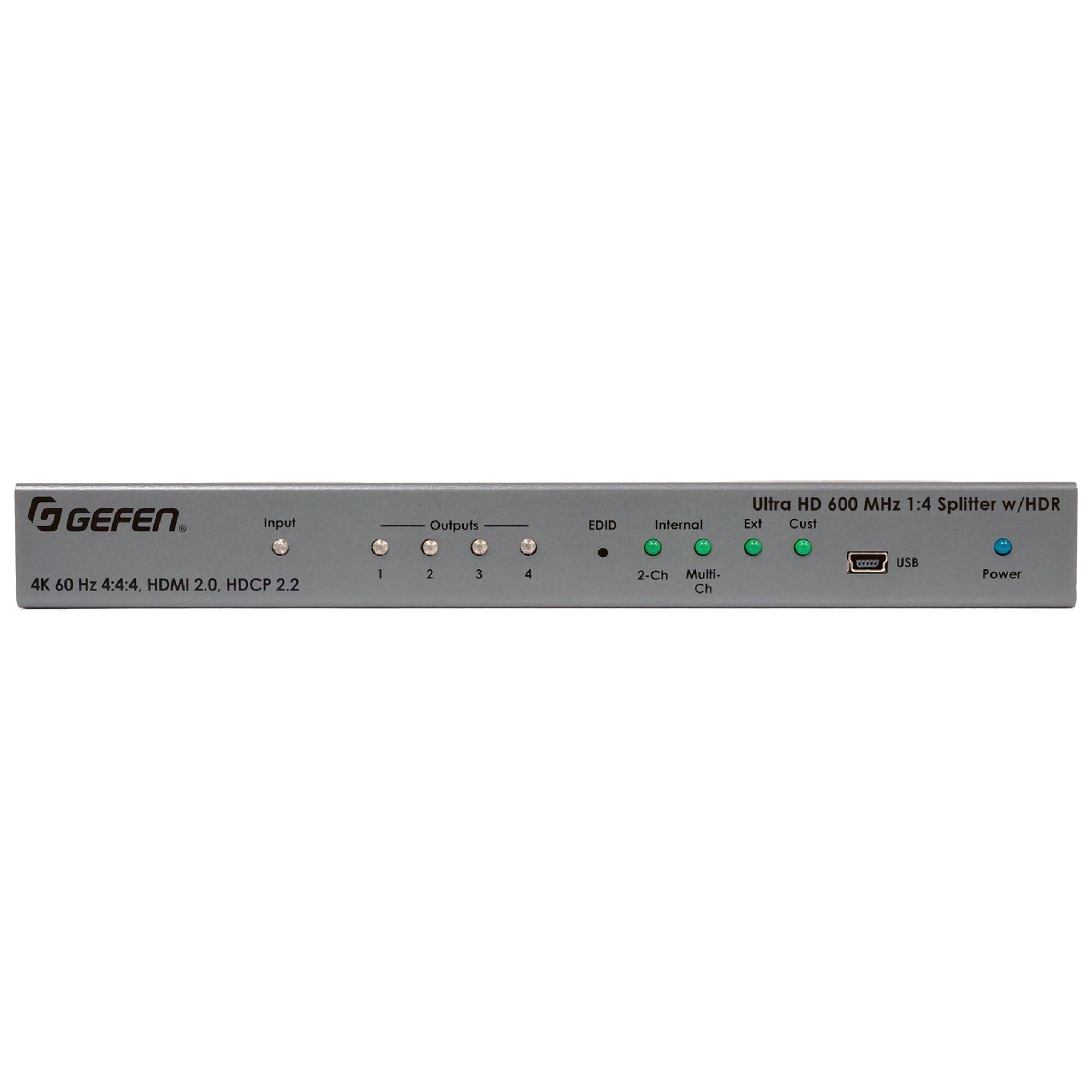

  • Indicators: Power (1, blue), Input (1, green), Outputs (4, green), EDID/Audio (4, green)

Physical

  • Dimensions (W×H×D): 8.4"×1"×3.7" ( 213mm×25mm×93mm) (without connectors or feet)
  • Net Weight: 0.75 lbs (0.3 kg)
  • Shipping Weight: 2.2 lbs (1 kg)

UPC: 888814374933

System Requirements

For Basic Operation

  • An Ultra HD source with an HDMI output.
  • Up to four Ultra HD displays with HDMI inputs.
  • High-quality HDMI cables that are designed and tested to work at 600 MHz and reliably transport the full 18 Gbps throughput of HDMI 2.0.



For Advanced Management (via Gefen Syner-G™)

  • A computer with the Gefen Syner-G™ Software Suite installed.
  • A mini-USB-to-USB cable (not included).
  • The USB driver, which is automatically installed with the Syner-G™ software, must be installed on the computer.

What's in the Box

  • (1) Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR
  • (1) 6 ft locking HDMI cable (CAB-HD-LCK-06MM)
  • (1) 5V Power Supply w/ US/EU/UK/AU plugs (EXT-PS526AIP-LP-6)
  • (2) Surface Mounting L-Brackets
  • (4) M3 6 mm machine screws for mounting the L-Brackets to the unit
  • (2) 6-32 5 mm machine screws for mounting the unit to EXT-RACK-1U-GRY (available separately)
  • (4) Self-Adhesive Rubber Feet
  • (1) Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.
