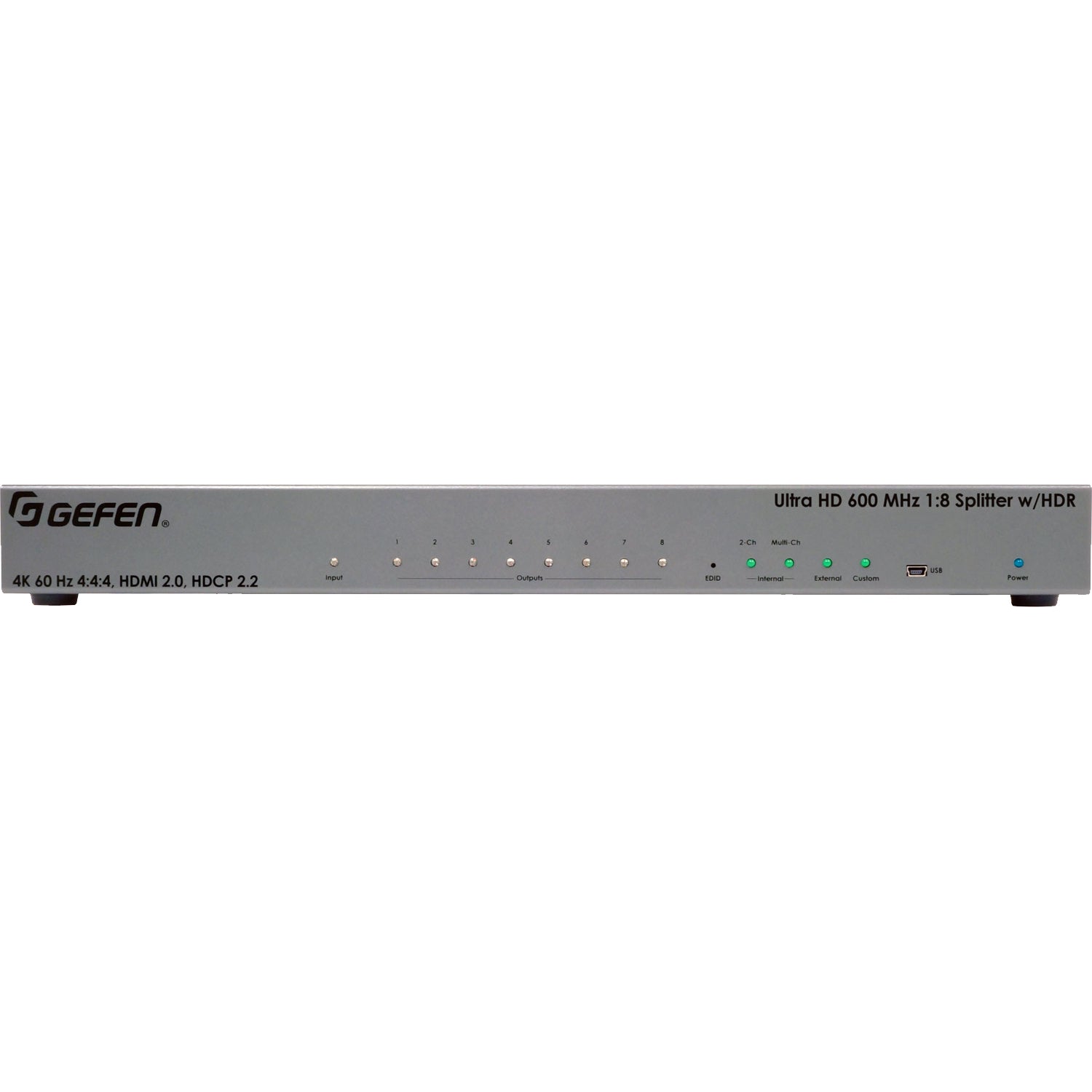

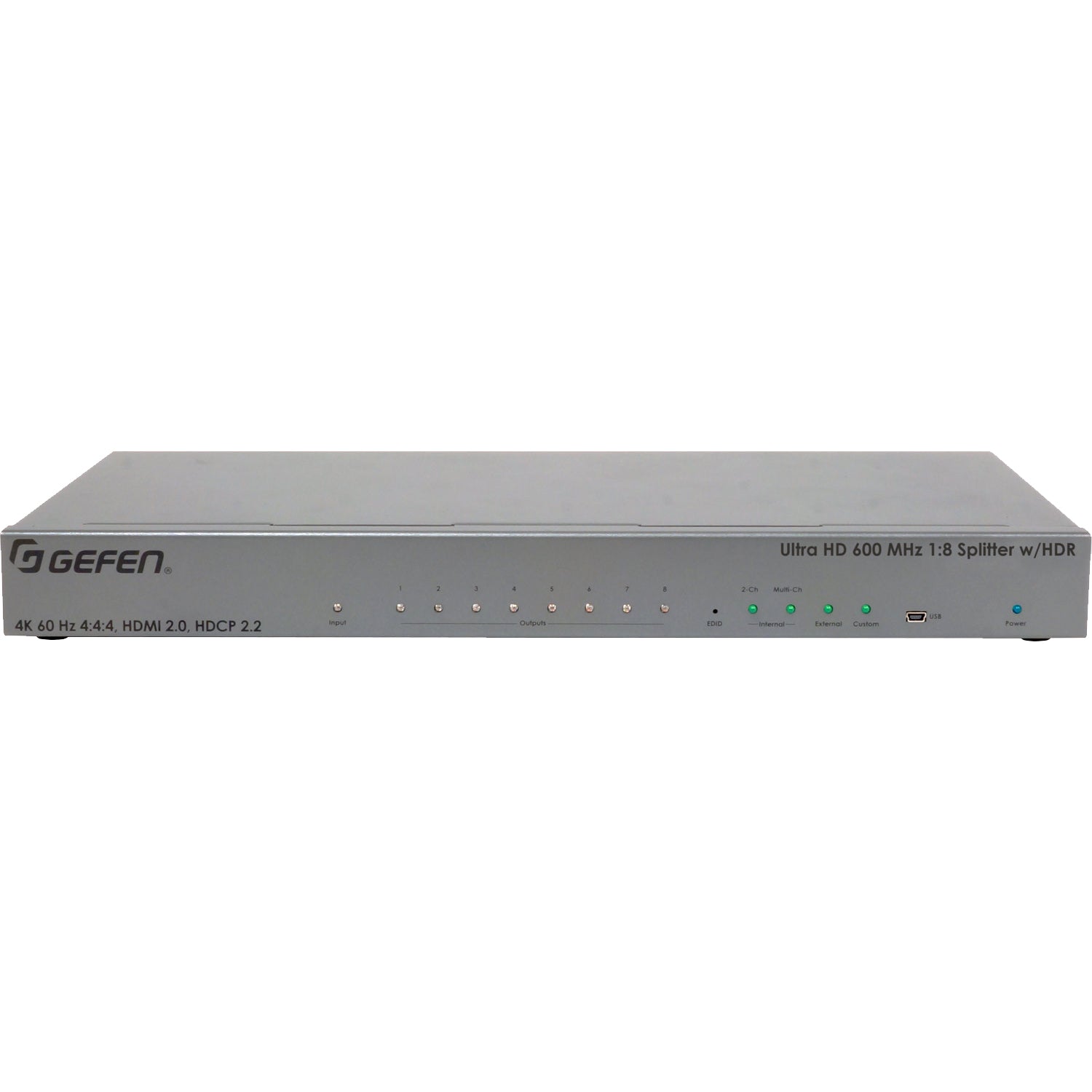

Ultra HD 600 MHz 1:8 Splitter for HDMI w/ HDR (EXT-UHD600-18)

EXT-UHD600-18

The Gefen EXT-UHD600-18 1:8 Splitter for HDMI reliably distributes a single Ultra HD source to up to eight displays without compromising quality. This high-performance splitter takes HDMI 2.0 to its highest specification, supporting 4K 60 Hz at 4:4:4 chroma subsampling, along with High Dynamic Range (HDR), to ensure a brilliant and immersive picture. Engineered for professional AV systems, it supports both HDCP 2.2 and 1.4, bridging the gap between new and legacy components, and is designed for flawless performance when cascading multiple units for large-scale digital signage applications. With support for high-bit-rate audio formats like Dolby Atmos® and DTS:X™, advanced EDID management via the Gefen Syner-G™ software, and a rack-mountable enclosure, the EXT-UHD600-18 is a robust and scalable solution for commercial and residential installations.
$809.55
Ultra HD 600 MHz 1:8 Splitter for HDMI w/ HDR (EXT - UHD600 - 18) - EXT - UHD600 - 18 - Gefen
Ultra HD 600 MHz 1:8 Splitter for HDMI w/ HDR (EXT - UHD600 - 18) - EXT - UHD600 - 18 - Gefen
Ultra HD 600 MHz 1:8 Splitter for HDMI w/ HDR (EXT - UHD600 - 18) - EXT - UHD600 - 18 - Gefen
Ultra HD 600 MHz 1:8 Splitter for HDMI w/ HDR (EXT - UHD600 - 18) - EXT - UHD600 - 18 - Gefen
Ultra HD 600 MHz 1:8 Splitter for HDMI w/ HDR (EXT - UHD600 - 18) - EXT - UHD600 - 18 - Gefen
Ultra HD 600 MHz 1:8 Splitter for HDMI w/ HDR (EXT - UHD600 - 18) - EXT - UHD600 - 18 - Gefen

Key Features

1-to-8 HDMI Distribution: Simultaneously displays a single Ultra Hi-Def source on up to eight Ultra HD displays.



Uncompromised 4K Video: Supports resolutions up to 4K DCI-Cinema (4096×2160 at 60 Hz, 4:4:4 color space) and 4K Ultra HD (3860×2160 at 60Hz, 4:4:4 color space).



High Dynamic Range (HDR): Supports 10-bit Deep Color HDR at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4, ensuring brilliant, immersive picture quality.



Large-Scale Application Support: Specifically designed to support multiple layers of cascading for large video distribution and signage applications, supporting up to hundreds of displays.



HDCP 2.2 Compliant: Supports both the latest HDCP 2.2 and legacy HDCP 1.4 to handle signal routing for existing and new AV system components.



Immersive Multi-Channel Audio: Supports up to 7.1 channels of HBR (High Bit Rate) digital audio formats such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™.



Advanced EDID Management: Features EDID and Audio Mode selectors for rapid integration of source and displays. Advanced management is available via USB using the Gefen Syner-G™ software.



Long Reach Power (LRP): Provides 500 mA at 5V on pin 18 of HDMI outputs 1 and 2, enabling select extender devices to be powered through their HDMI input port without an external power supply.



Gefen Syner-G™ Integration: Works with the Gefen Syner-G™ software suite for performing in-field firmware updates, status monitoring, and advanced EDID/HDCP management.



Professional Enclosure: Features a 1U tall, rack-mountable enclosure that can also be placed on a shelf , along with a locking power connector for secure connections.

How It Works

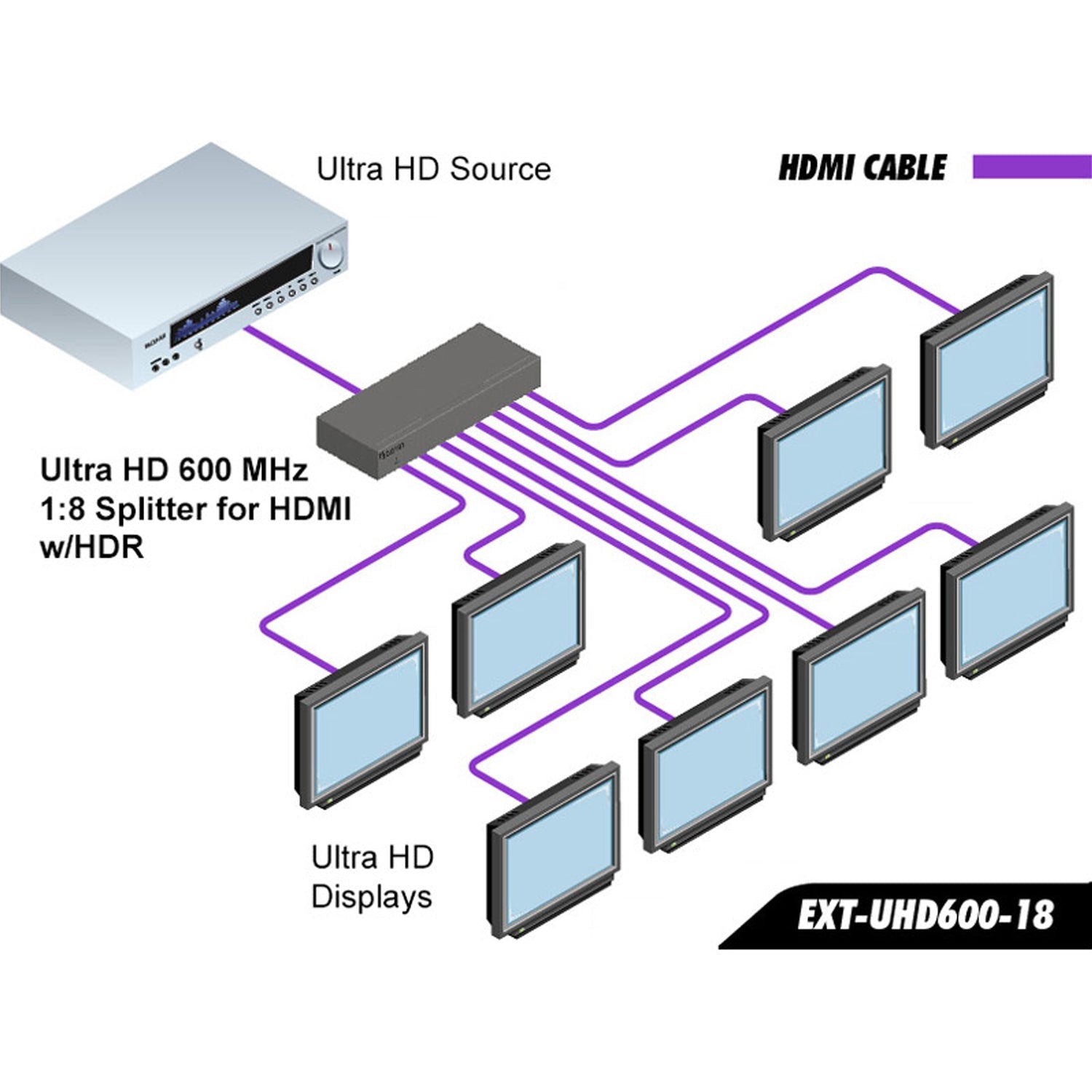

To operate the Gefen EXT-UHD600-18, connect an Ultra HD source to the splitter's single locking HDMI input port. Then, connect up to eight Ultra HD displays to the corresponding HDMI output ports on the rear panel. Once the included 5V DC power supply is connected, the splitter duplicates the source signal and sends it simultaneously to all connected displays. The unit features built-in EDID Management, which can automatically build and transmit an EDID to the source device based on the highest video and audio formats supported by all connected displays, ensuring optimal signal compatibility. For larger installations requiring more than eight screens, you can cascade multiple splitters by connecting an output from one unit to the input of another, creating a massively scalable distribution system that supports hundreds of displays.

Additional Information

Specifications

Operational

  • Maximum Pixel Clock: 600 MHz
  • Video Resolutions (Max):
    • 4K DCI-Cinema (
    • 4096×2160 at 60 Hz, 4:4:4 color space)
    • 4K Ultra HD (
    • 3860×2160 at 60Hz, 4:4:4 color space)
    • 1080p Full HD
    • 1920×1200 (WUXGA)
  • Audio Formats: LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
  • Power Input: 5 V DC
  • Power Consumption: 14.5 W (max.)
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 250,000 hours

Connectors, Controls, and Indicators

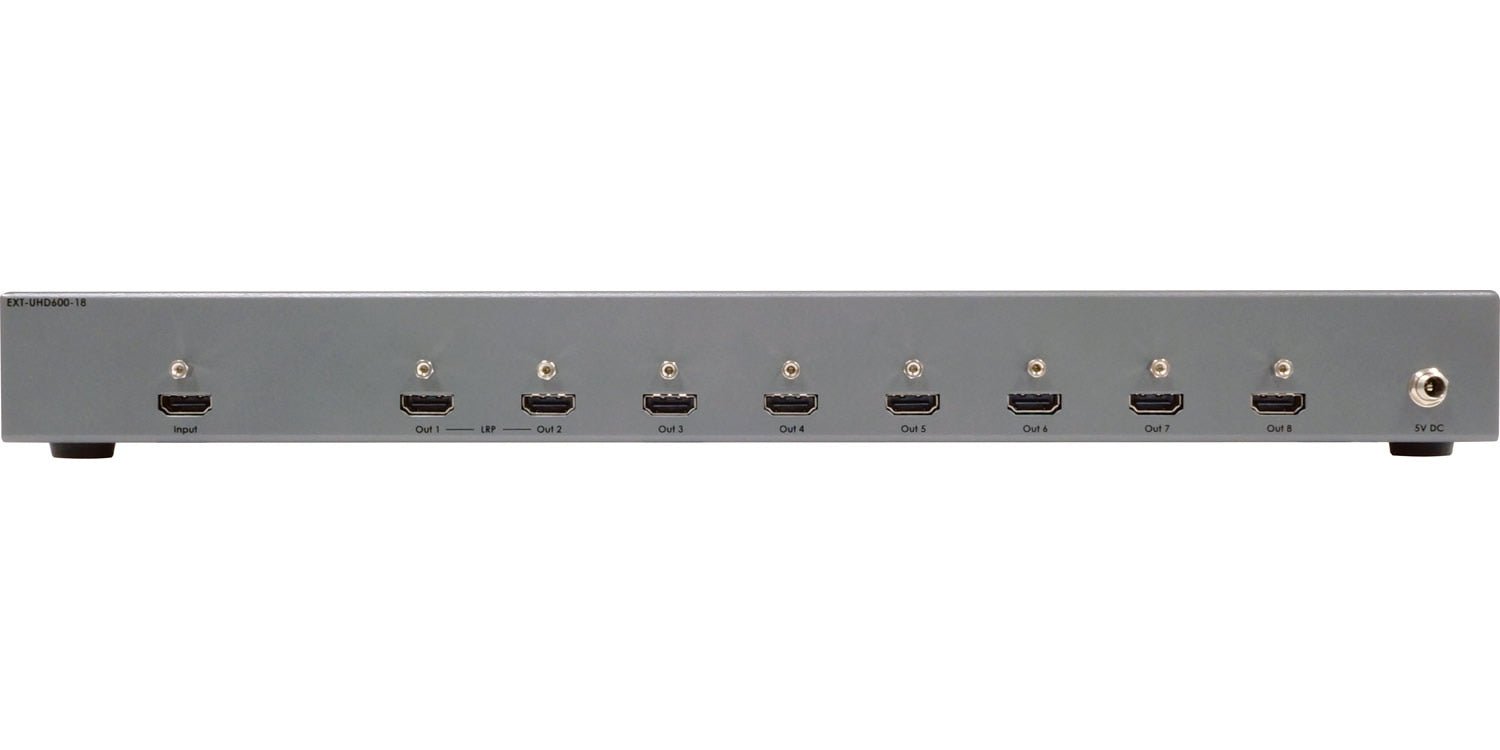

  • HDMI Input: 1 x Type A, 19-pin female, locking
  • HDMI Outputs: 8 x Type A, 19-pin female, locking
  • HDMI Outputs 1 & 2 LRP: 500 mA (max) at 5V on pin 18
  • USB Port: 1 x Mini-B
  • EDID Selector: 1 x recessed tact switch
  • Power Connector: 1 x locking type
  • Indicators: 1 x Power (blue), 1 x Input (green), 8 x Output (green), 4 x EDID (green)

Physical

  • Dimensions (W x H x D): 16.9" x 1.7" x 6.3" (430 mm x 43 mm x 159mm) (without connectors or feet)
  • Net Weight: 2.5 lbs (1.2 kg)
  • Shipping Weight: 5.1 lbs (2.3 kg)

UPC: 888814079753

System Requirements

For Gefen Syner-G™ Software Usage:

  • A computer with the Gefen Syner-G™ Software Suite installed.
  • The USB driver, which is automatically installed with the Syner-G™ software, must be installed on the computer.
  • A mini-USB-to-USB cable (not included) is required to connect the splitter to the computer.

For DVI Connectivity:

  • To connect DVI sources or DVI displays, HDMI-to-DVI adapters are required (not included).

Cabling Recommendation:

  • High-quality cables are critical for handling 600 MHz HDMI signals. Gefen Locking HDMI cables are highly recommended, as they have been tested to reliably transport the full 18 Gbps throughput of HDMI 2.0.

What's in the Box

  • 1 x Ultra HD 600 MHz 1:8 Splitter for HDMI w/ HDR
  • 1 x 6 ft locking HDMI cable (CAB-HD-LCK-06MM)
  • 1 x 5V Power Supply w US/EU/UK/AU plugs (EXT-PS54AULPN-6)
  • 2 x Surface Mounting L-Brackets
  • 4 x M3 6 mm machine screws for mounting the L-Brackets to the unit
  • 2 x 6-32 5 mm machine screws for mounting the unit to EXT-RACK-1U-GRY (available separately)
  • 4 x Self-Adhesive Rubber Feet
  • 1 x Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.
