Ultra HD 600 MHz 4x1 Switcher for HDMI w/ HDCP 2.2, HDR, & Auto-Switching

EXT-UHD600-41

The Gefen EXT-UHD600-41 is a high-performance 4x1 switcher for HDMI, designed to route up to four Ultra HD sources to a single 4K display with ease. This switcher supports HDMI 2.0 at its highest specification, delivering resolutions up to 4K 60 Hz (4:4:4) and DCI/Cinema 4K up to 4096 x 2160, ensuring pristine and vibrant video quality. With support for High Dynamic Range (HDR), HDCP 2.2, and high-performance digital audio formats like Dolby Atmos® and DTS:X™, it creates a seamless bridge between existing and future AV components. For streamlined operation in professional environments, the unit features configurable automatic input switching and flexible control options, including a web interface, RS-232, and IP control, making it an ideal and scalable solution for commercial and residential AV integration.
$584.85
Ultra HD 600 MHz 4x1 Switcher for HDMI w/ HDCP 2.2, HDR, & Auto - Switching - EXT - UHD600 - 41 - Gefen
Ultra HD 600 MHz 4x1 Switcher for HDMI w/ HDCP 2.2, HDR, & Auto - Switching - EXT - UHD600 - 41 - Gefen
Ultra HD 600 MHz 4x1 Switcher for HDMI w/ HDCP 2.2, HDR, & Auto - Switching - EXT - UHD600 - 41 - Gefen
Ultra HD 600 MHz 4x1 Switcher for HDMI w/ HDCP 2.2, HDR, & Auto - Switching - EXT - UHD600 - 41 - Gefen

Key Features

4x1 HDMI Routing: Routes up to four Ultra Hi-Def sources to one Ultra HD display.



Ultimate 4K Video Support: Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4), and 1080p Full HD.



HDCP 2.2 & 1.4 Compliant: Supports the latest HDCP 2.2 digital rights management standard as well as the legacy HDCP 1.4.



High Dynamic Range (HDR) Pass-Through: Supports HDR 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4, delivering more brilliant and nuanced picture gradations.



High-Performance Audio: Supports up to 7.1 channels of HBR (High Bit Rate) digital audio formats including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™.



Automatic Input Switching: Features a configurable system that automatically selects the most recently connected or powered-up source to minimize end-user interaction.



Multiple Control Interfaces: Controllable via front-panel buttons, IR remote, RS-232 serial interface, Telnet/UDP, and a built-in web server interface for maximum flexibility.



Advanced EDID Management: Provides advanced EDID and HDCP management through the web server interface to ensure rapid and reliable integration of sources and displays.



Gefen Syner-G™ Ready: Works with the Gefen Syner-G™ software suite, whose Discovery and Show-Me features simplify initial IP configuration.



Long Reach Power (LRP): An exclusive feature that provides 5V at 500 mA on the HDMI output, enabling select extender devices to be powered directly through the HDMI cable without an external power supply.



Compact & Mountable Design: The low-profile, surface-mountable enclosure is compact enough to fit in tight places and can be hidden away behind a display or in an equipment closet.

How It Works

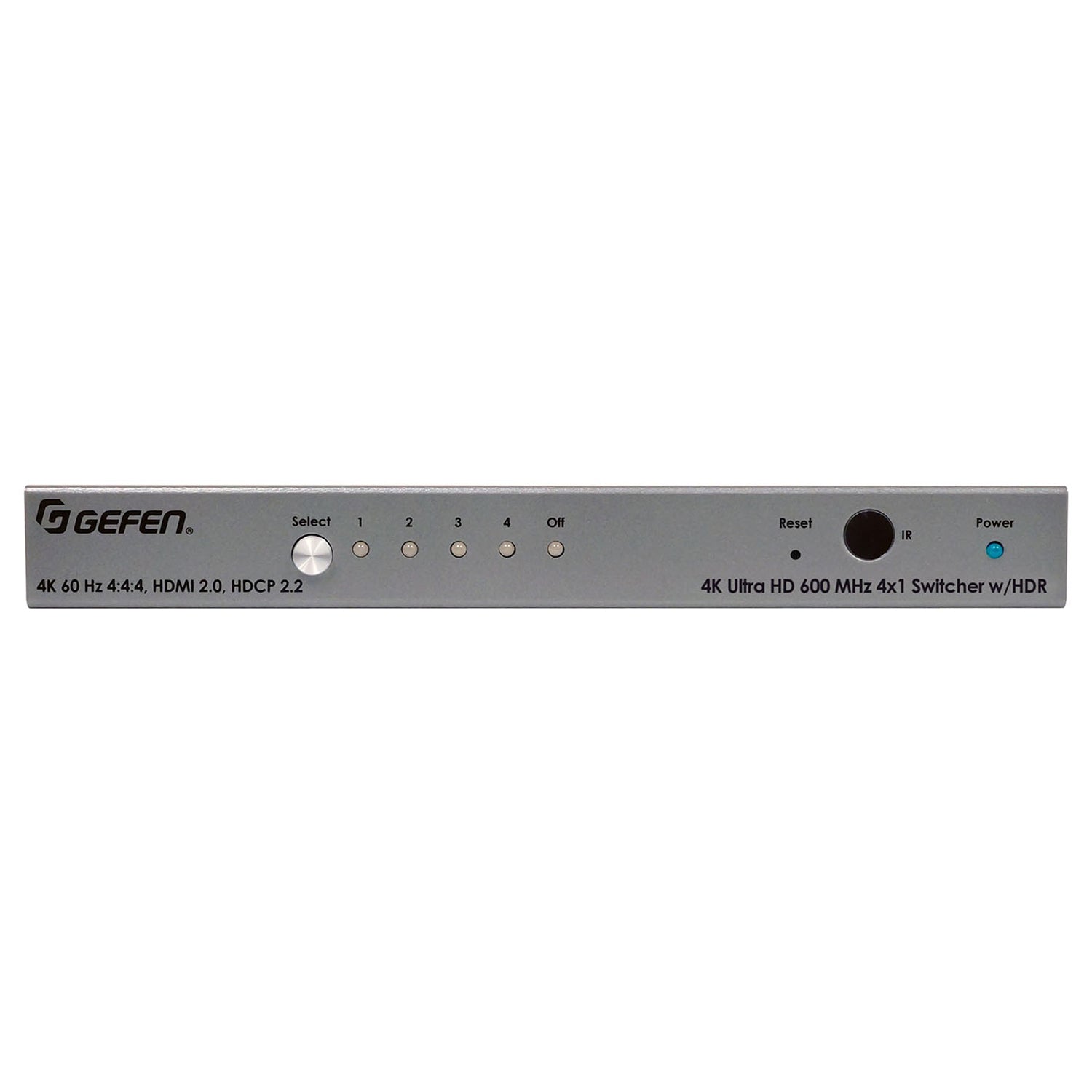

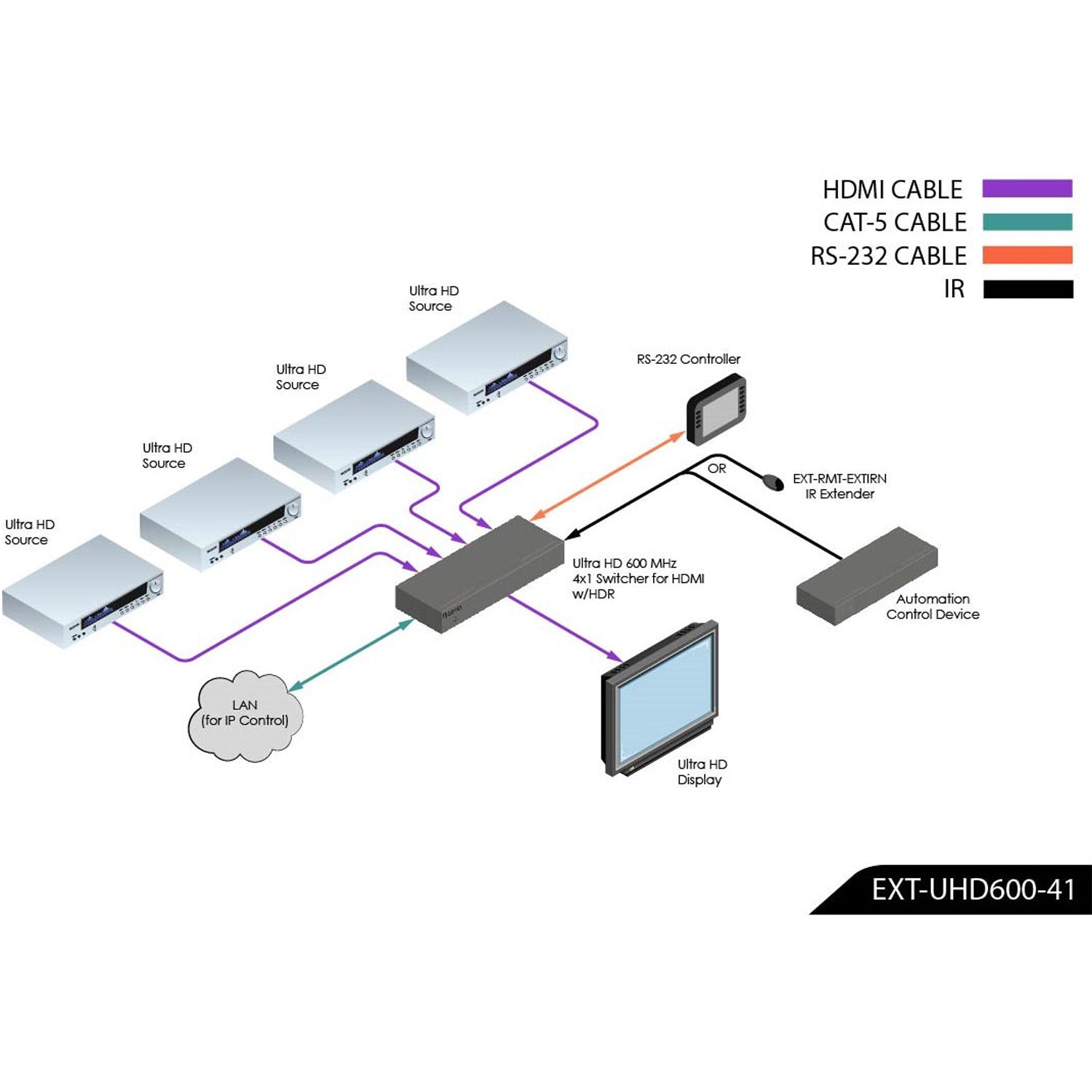

To operate the Gefen EXT-UHD600-41 switcher, begin by connecting up to four HDMI source devices to the HDMI input ports on the rear of the unit. Next, connect the single HDMI output to your Ultra HD display or projector. Once powered on, you can choose which source is routed to the display in several ways. For direct access, press the front-panel 'Select' button to cycle through the connected inputs. You can also use the included hand-held IR remote for convenient selection. For automated environments, the unit can be configured to automatically switch to the most recently connected or powered-up source device. For professional integration with control systems, the switcher can also be managed via RS-232, IP (Telnet/UDP), and its built-in web server interface.

Additional Information

Specifications

Video

  • Maximum Pixel Clock: 600 MHz
  • Maximum Resolutions:
    • 4K DCI-Cinema: 4096 x 2160 at 60 Hz, 4:4:4 color space
    • 4K Ultra HD: 3860 x 2160 at 60Hz, 4:4:4 color space
    • Full HD: 1080p
    • WUXGA: 1920x1200
  • Supported Audio Formats:
    • LPCM 7.1
    • Dolby Atmos®, Dolby® TrueHD
    • DTS:X™, DTS-HD Master Audio™

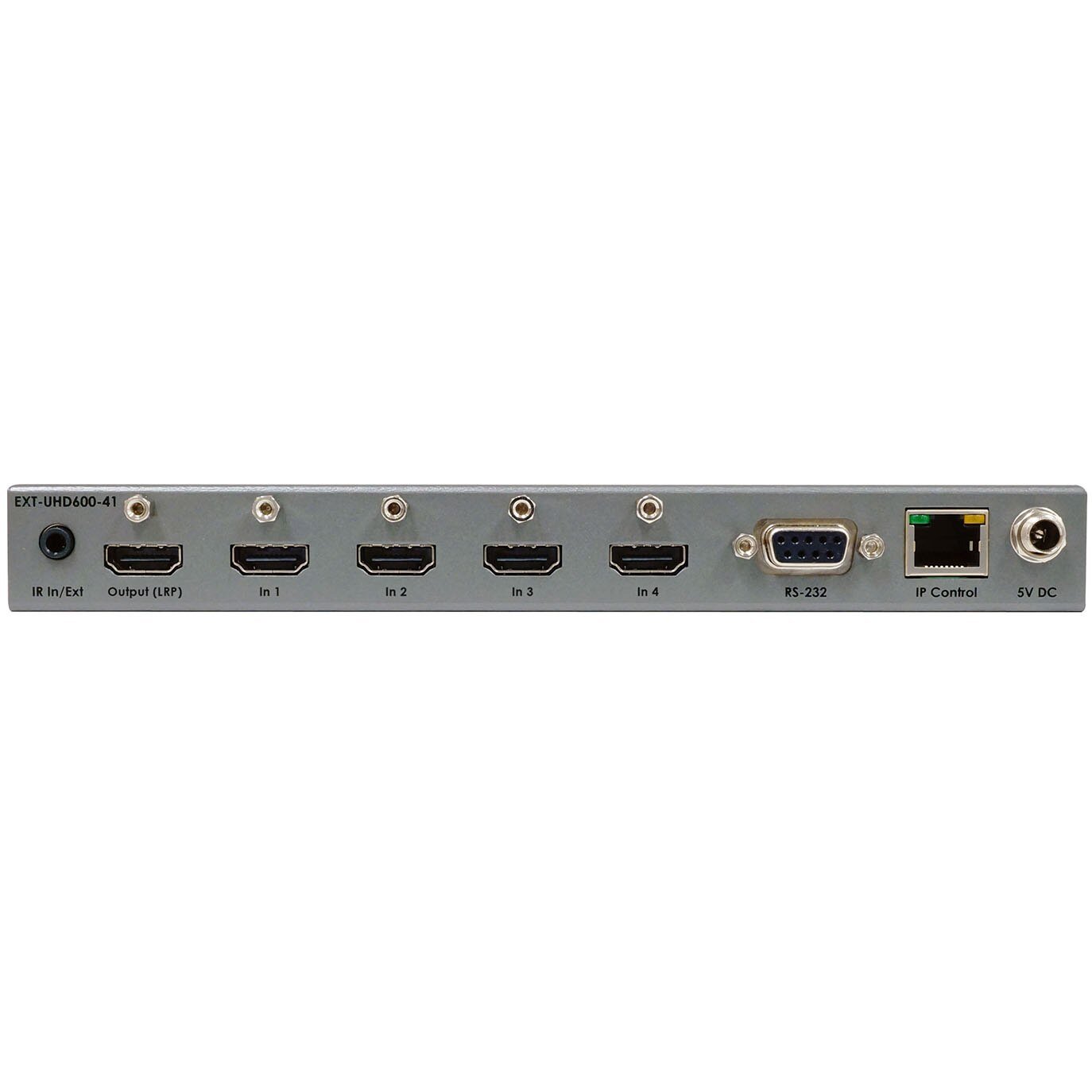

Connectors

  • HDMI Input Connectors: (4) Type A 19-pin female, locking
  • HDMI Output Connector: (1) Type A 19-pin female, locking
  • RS-232 Port: (1) DB-9, female
  • IP Control Port: (1) RJ-45
  • IR In/Ext Port: (1) 3.5mm mini-stereo jack
  • DC Power Connector: (1) Locking type

Operational

  • Power Supply: 5V DC
  • Power Consumption: 7W (max)
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 300000 hours

Physical

  • Dimensions (W x H x D, without connectors or feet): 8.4" x 1" x 3.7" (213mm x 25mm x 93mm)
  • Net Weight: 0.75 lbs (0.3 kg)
  • Shipping Weight: 2.2 lbs (1 kg)

System Requirements

Video Sources: Up to four Ultra HD source devices with HDMI outputs.



Video Display: An Ultra HD display with an HDMI input.



Cabling: HDMI cables to connect the sources and the display. For optimal performance with 600 MHz signals, high-quality cables such as Gefen Locking HDMI cables are highly recommended.



Power: An available electrical outlet to connect the included 5V DC power supply.



Network Access: A connection to a Local Area Network (LAN) is required for IP control via Telnet, UDP, or the built-in web server interface.



Automation System: An automation control system with an RS-232 port for serial control.



IR Extender: The included IR Extender module can be used if the switcher is hidden or direct line-of-sight for the IR remote is not possible.

What's in the Box

  • (1) Ultra HD 600 MHz 4x1 Switcher for HDMI w/ HDR
  • (1) 5V Power Supply with US/EU/UK/AU plugs
  • (1) IR Extender Module (EXT-RMT-EXTIRN)
  • (1) Hand-held IR Remote
  • (2) Surface Mounting L-Brackets
  • (4) M3 6 mm Machine screws (for mounting the L-Brackets to the unit)
  • (2) 6-32 5 mm Machine screws (for mounting the unit to a Gefen rack tray, available separately)
  • (4) Self-Adhesive Rubber Feet
  • (1) Quick-Start Guide

Warranty

3Year Product Warranty

Please see the Gefen Warranty Page for more details.
