Ultra HD 600 MHz DisplayPort 1.2 Extender over one SC-Terminated Fiber Optic Cable (EXT-DP-4K600-1SC)

Name: Ultra HD 600 MHz DisplayPort 1.2 Extender over one SC-Terminated Fiber Optic Cable (EXT-DP-4K600-1SC)
Brand: Gefen
SKU: EXT-DP-4K600-1SC
Price: 3109.05 USD
Availability: InStock

EXT-DP-4K600-1SC

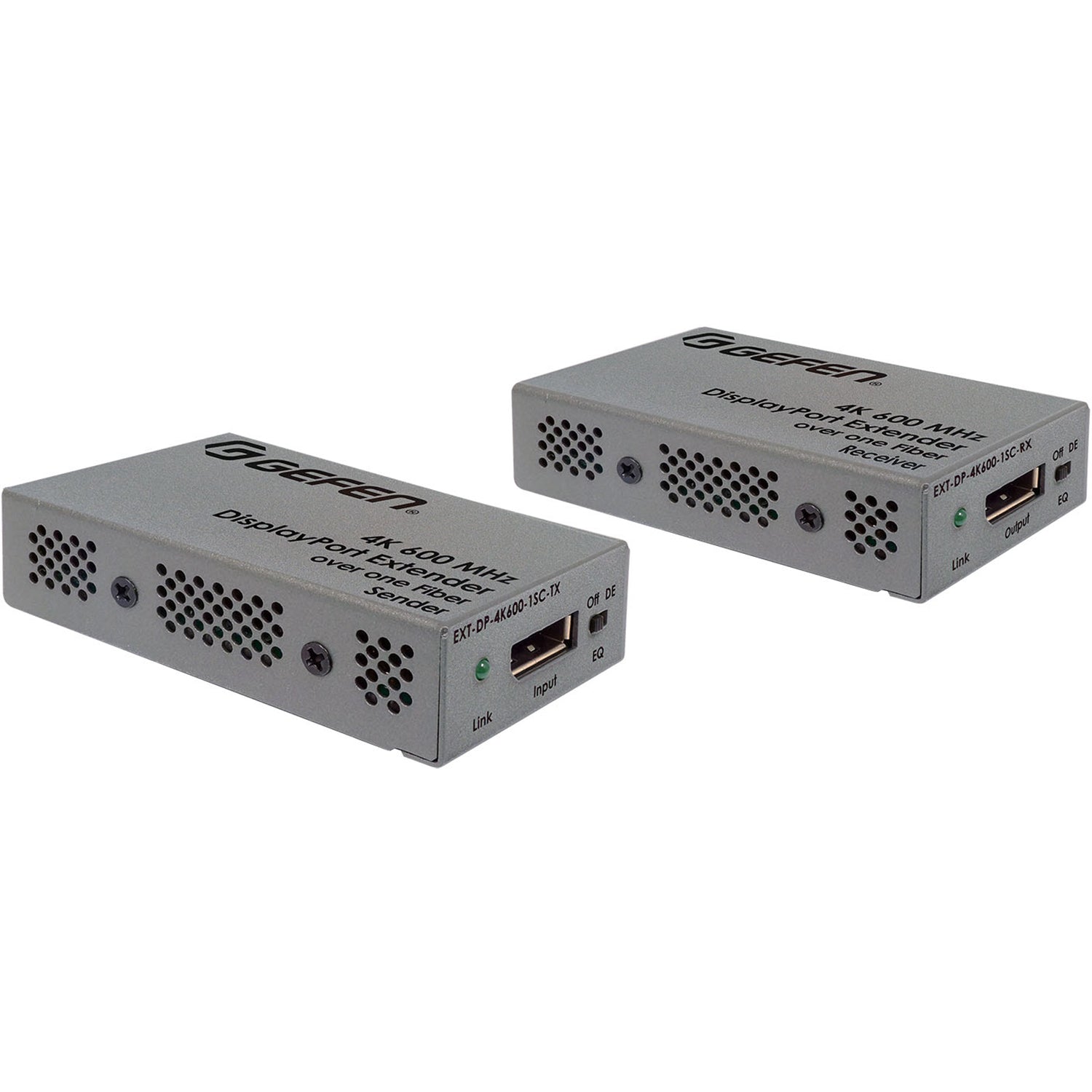

The Gefen EXT-DP-4K600-1SC is a compact and high-performance solution for extending DisplayPort 1.2 audio/video over a single fiber optic cable. This DisplayPort 1.2 compliant extender supports full-bandwidth, uncompressed 4K Cinema DCI (4096 x 2160) at 60 Hz with 4:4:4 chroma sub-sampling, along with HDCP 2.2, HDCP 1.4, and DPCP compliant content, over distances up to 660 feet (200m). Designed for critical applications, it provides full electrical isolation between the Sender and Receiver units, meeting stringent safety and EMC requirements. Its support for DisplayPort Multi-streaming and Auxiliary Channel transport makes it an ideal, plug-and-play solution for medical imaging, military command rooms, and professional digital signage installations that demand the highest video quality and signal integrity.

⚠️Set comes with both Sender and Receiver

$3,109.05

Ultra HD 600 MHz DisplayPort 1.2 Extender over one SC - Terminated Fiber Optic Cable (EXT - DP - 4K600 - 1SC) - EXT - DP - 4K600 - 1SC - Gefen

Key Features

Uncompressed 4K Video Support: Supports full-bandwidth 600 MHz video with resolutions up to 4K Cinema - DCI (4096 x 2160) at 60 Hz and 4:4:4 chroma sub-sampling.

Long-Distance Fiber Extension: Extends DisplayPort 1.2 signals up to 660 feet (200 meters) over a single strand of SC-terminated OM3 or better multi-mode fiber optic cable.

Content Protection Compliance: Fully compliant with HDCP 2.2, HDCP 1.4, and DPCP to ensure playback of protected media.

Native DisplayPort Technology Support: Supports DisplayPort Multi-stream technology for connecting multiple daisy-chained displays and the Auxiliary Channel for transporting data alongside the AV signal.

Electrical Isolation for Critical Applications: Provides full electrical isolation between the Sender and Receiver units, meeting stringent safety and EMC requirements. The extender is compliant with medical safety standards EN 60601-1 and EN 60601-1-2 when used with the optional EXT-PS52AU-M-1.3-6-AL power supply.

Plug-and-Play with Signal Optimization: Functions as a plug-and-play device for most applications , with accessible EQ switches on both units to ensure compatibility and optimize signals for special requirements.

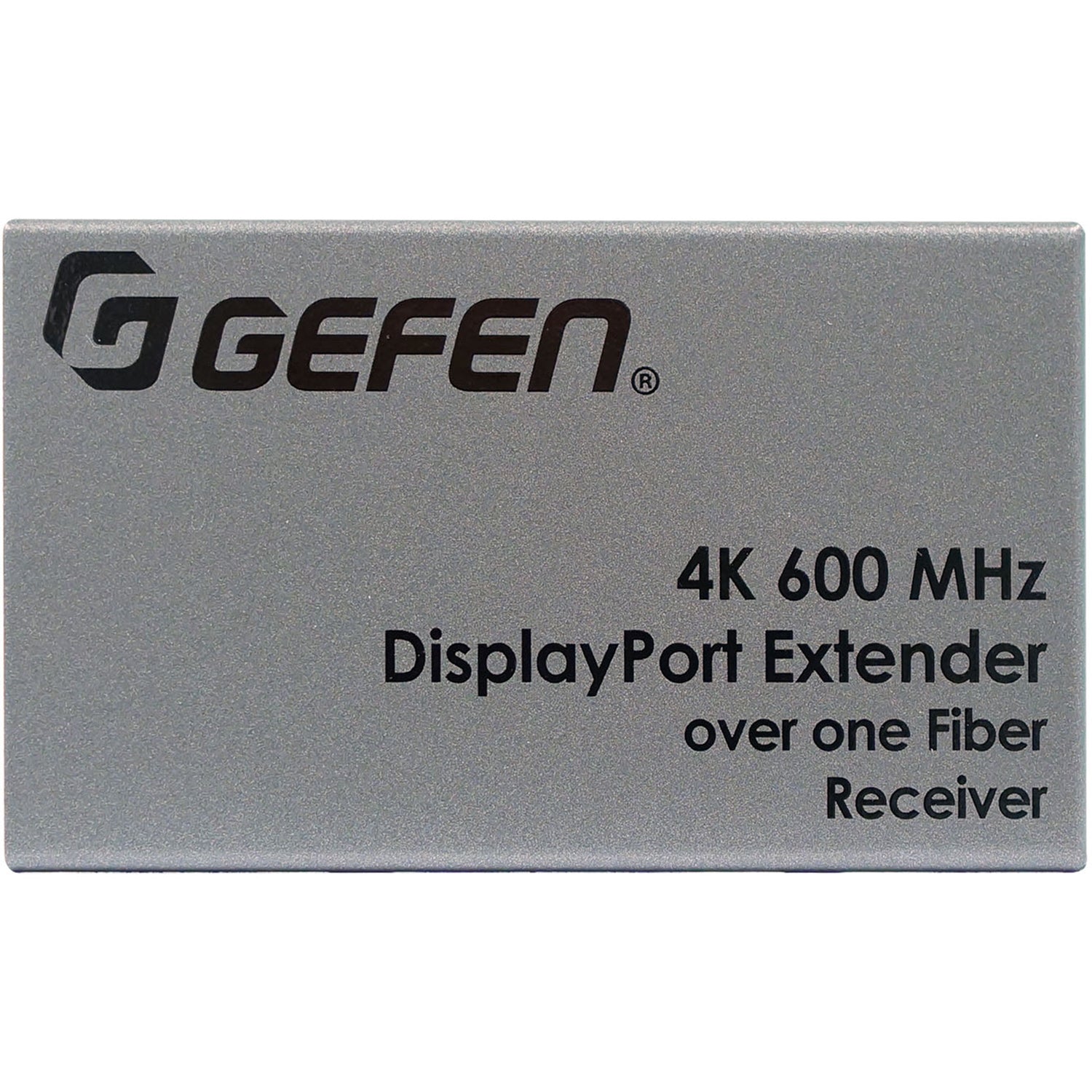

Robust and Compact Design: Features compact enclosures that are easy to install and can be hidden away. The sturdy metal construction provides immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI).

How It Works

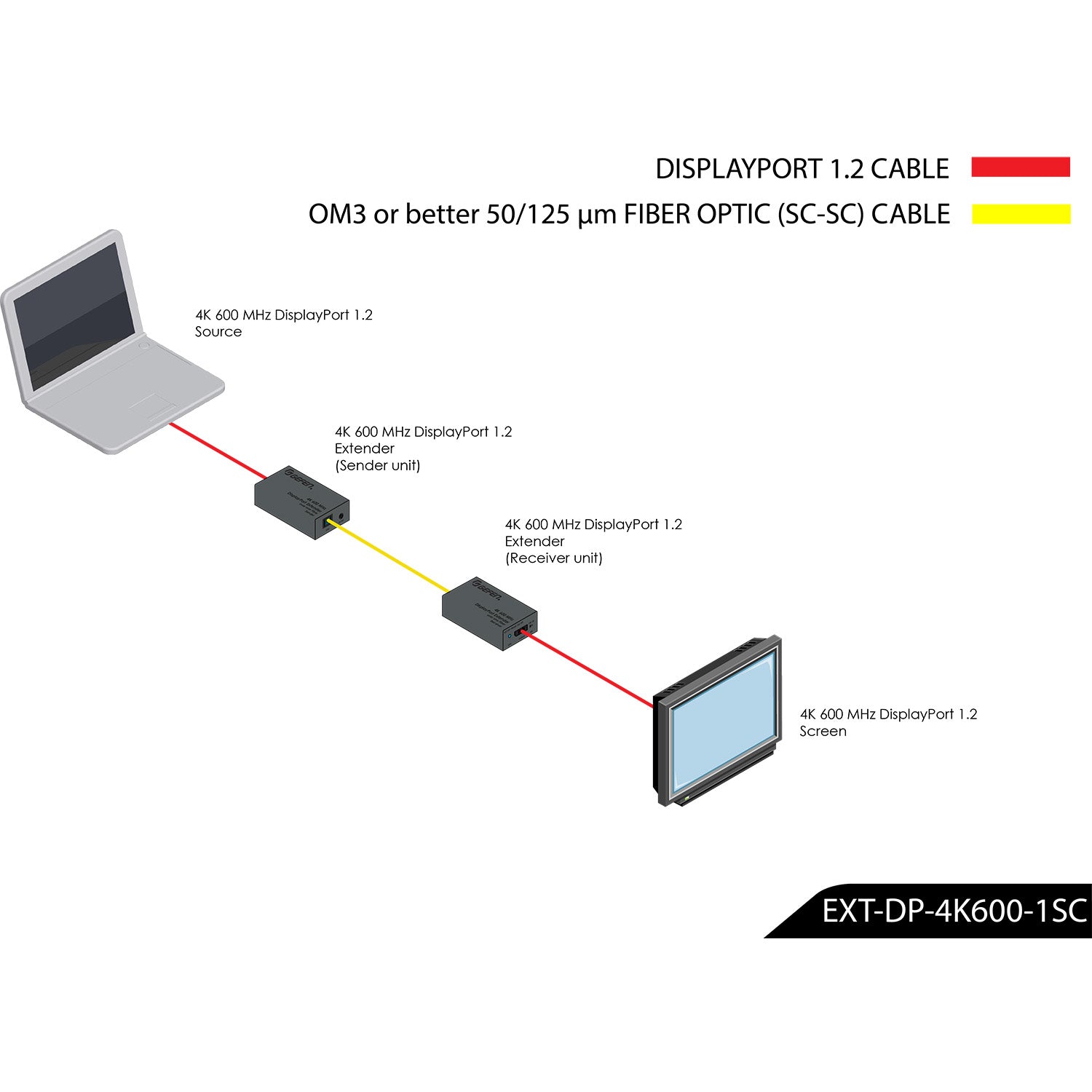

The EXT-DP-4K600-1SC system operates with a Sender and Receiver unit to extend DisplayPort video over a long distance. First, connect your DisplayPort 1.2 source to the Sender unit's input port using the included DisplayPort cable. Next, connect your DisplayPort 1.2 display to the Receiver unit's output port. The Sender and Receiver units are then linked together with a single strand of SC-terminated OM3 or better multi-mode fiber optic cable, up to 660 feet (200 meters) in length. Finally, power both units using either the included 5V DC power supplies or by connecting the included USB-to-DC power cables to available powered USB ports. Once all devices are powered on, the link indicators will light up, and the uncompressed 4K video signal from the source will be transmitted seamlessly to the remote display.

Additional Information

Specifications

Video Bandwidth: 21.6 Gbps (5.4 Gbps per lane, 4 lanes)

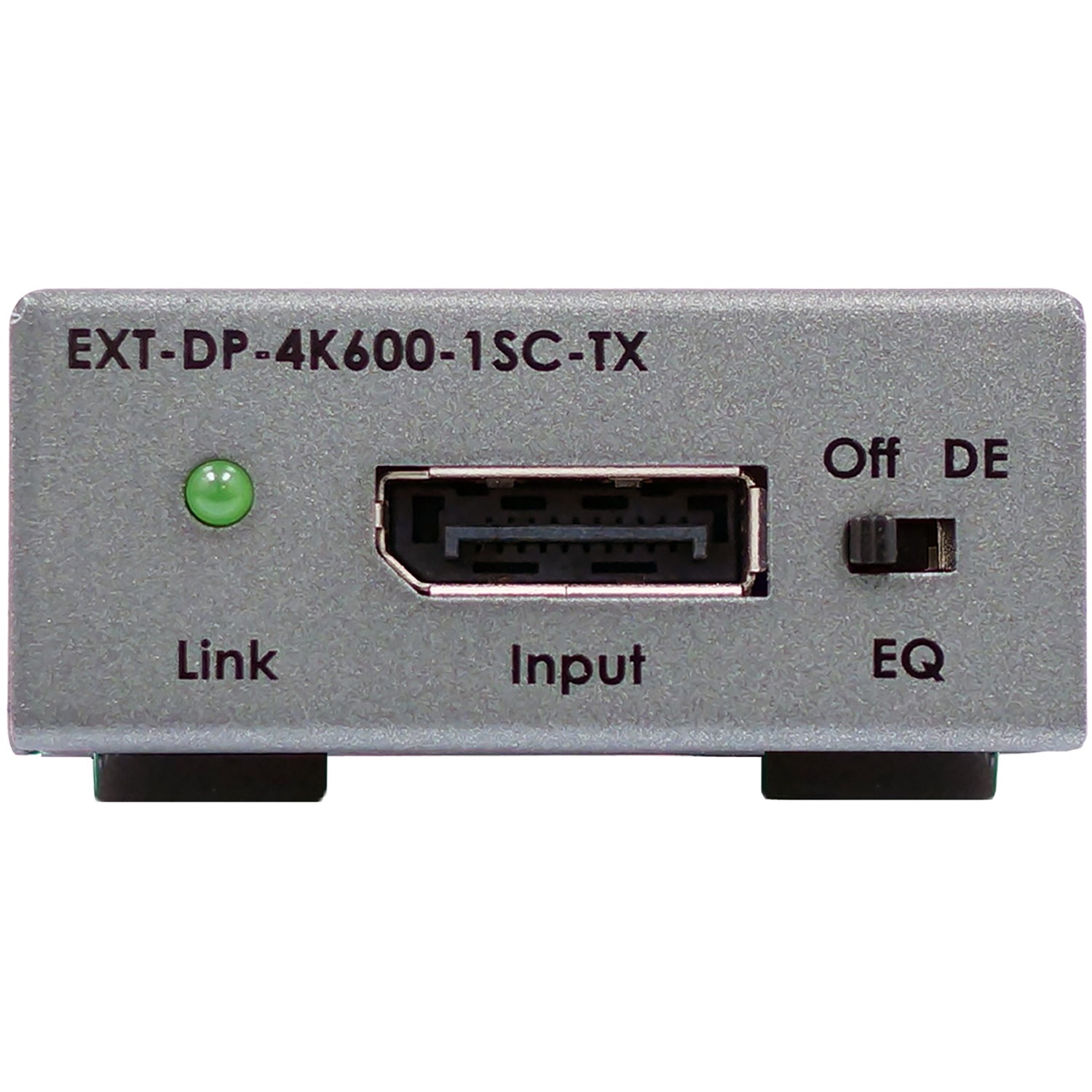

Video Input connector (Sender): (1) DP-20-pin, female

Video Output connector (Receiver): (1) DP-20-pin, female

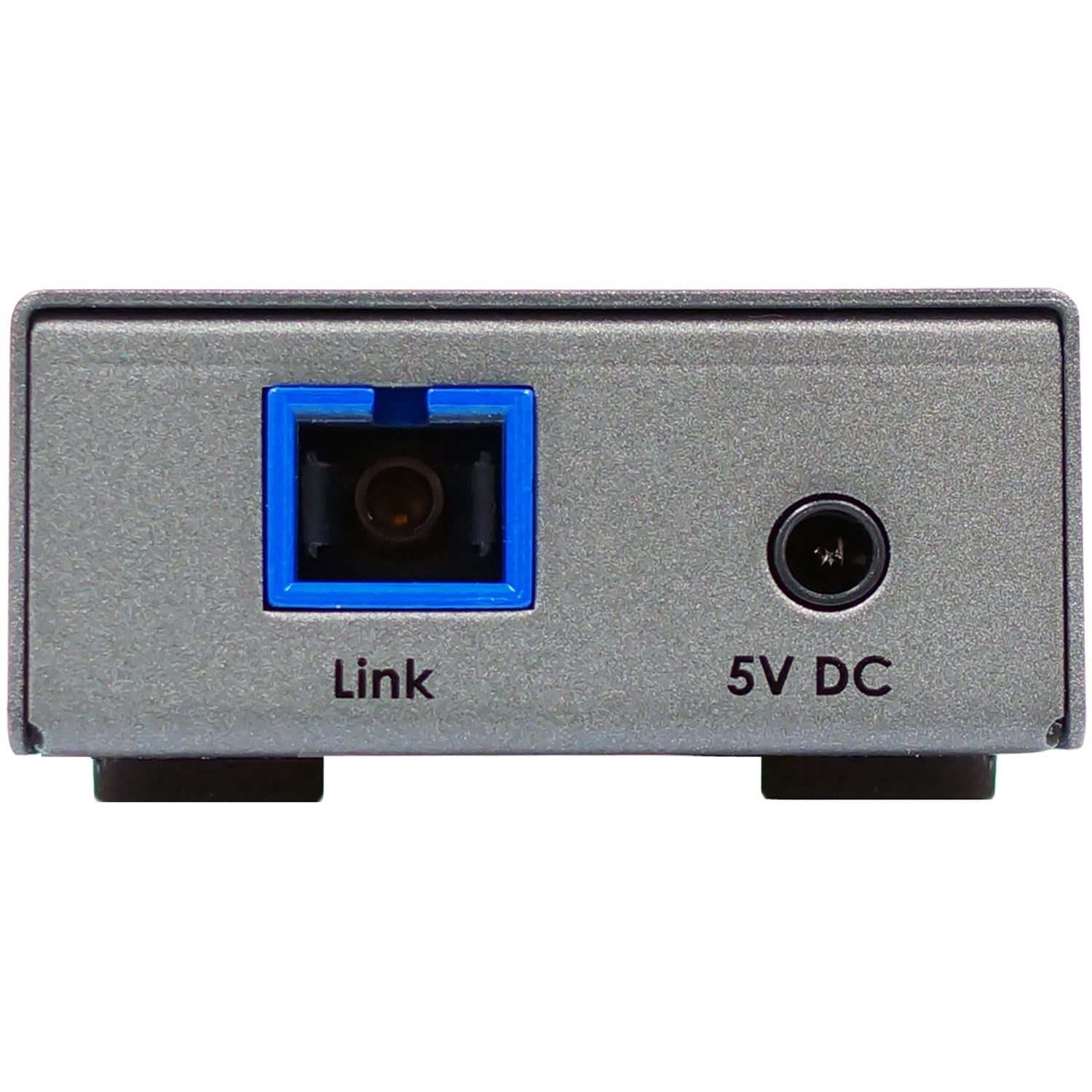

Link connector (Sender/Receiver): (1) Type SC, female

Power Supply connector (Sender/Receiver): (1) 5V DC 3.5mm/1.3mm barrel jack

Power Consumption:

Sender: 1.75W

Receiver: 2.0W

Optical Wavelength: 850 nm

Optical Power Budget: 6.5 dB

Operating Temperature: +32 to +122°F (0 to +50°C)

Operating Humidity: 10% to 85% RH, non-condensing

Storage Temperature: -4 to +158°F (-20 to +70°C)

Storage Humidity: 10% to 85% RH, non-condensing

Dimensions (W x H x D), not including connectors: 1-3/4" x 7/8" x 3-1/8" (45mm x 22mm x 79mm)

Unit Weight (each): 4.8 oz. (0.135 kg)

Shipping Weight: 2.5 lbs. (1.2 kg)

UPC: 888814999631

System Requirements

Source and Display: The system requires a DisplayPort 1.2 source and a DisplayPort 1.2 display.

Fiber Optic Cable: The extender operates with a single strand of SC-terminated OM3 or OM4 (50/125 µm) multimode fiber optic cable. Single mode fiber is not supported.

What's in the Box

1 x EXT-DP-4K600-1SC-TX - Sender unit
1 x EXT-DP-4K600-1SC-RX - Receiver unit
2 x DisplayPort Male-to-Male cables, 6 feet
2 x USB-to-DC cables, 2.3 feet
2 x EXT-PS52AIP-1.3-6-AL power supplies
2 sets of regional AC plugs (US, UK, EU, and AU)
1 x Quick Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-DP-4K600-1SC Datasheet
Gefen EXT-DP-4K600-1SC Manual
Gefen EXT-DP-4K600-1SC Declaration of Conformity
