USB 2.0 Extender over one CAT-5 Cable, 50m/165ft (EXT-USB2.0-SR)

Name: USB 2.0 Extender over one CAT-5 Cable, 50m/165ft (EXT-USB2.0-SR)
Brand: Gefen
SKU: EXT-USB2.0-SR
Price: 410.55 USD
Availability: InStock

EXT-USB2.0-SR

The Gefen EXT-USB2.0-SR is a high-performance USB 2.0 extender that provides reliable remote access to your USB peripherals over a single CAT-5e cable at distances up to 165 feet (50 meters). This professional-grade solution supports both high-speed USB 2.0 (up to 480 Mbps) and USB 1.1, making it perfect for demanding applications such as digital imaging, security, and industrial control. Offering true plug-and-play functionality with no software drivers required, the extender is compatible with all major operating systems, including Windows, macOS, and Linux. The Receiver unit delivers up to 2A of power at 5V, ensuring consistent performance for virtually any connected USB device, from keyboards and mice to scanners and external hard drives.

⚠️Comes with both Sender and Receiver

$410.55

USB 2.0 Extender over one CAT - 5 Cable, 50m/165ft (EXT - USB2.0 - SR) - EXT - USB2.0 - SR - Gefen

Key Features

Long-Distance USB Extension: Reliably extends USB 2.0 and 1.1 peripherals up to 165 feet (50 meters) away from a computer using a single, industry-standard CAT-5e or better cable.

High-Speed Data Transfer: Supports the full USB 2.0 data rate of up to 480 Mbps, ensuring no performance loss for high-bandwidth devices.

Universal Plug-and-Play Compatibility: Offers a true, 100% hardware solution with no software drivers required for installation. It is fully compatible with all major operating systems, including Windows, macOS, and Linux.

High-Powered USB Port: The Receiver unit features a USB port that can supply up to 2A of current at 5V, providing sufficient power for demanding peripherals.

Robust Professional Construction: Features compact, sturdy metal enclosures that are easy to install and help provide immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI).

How It Works

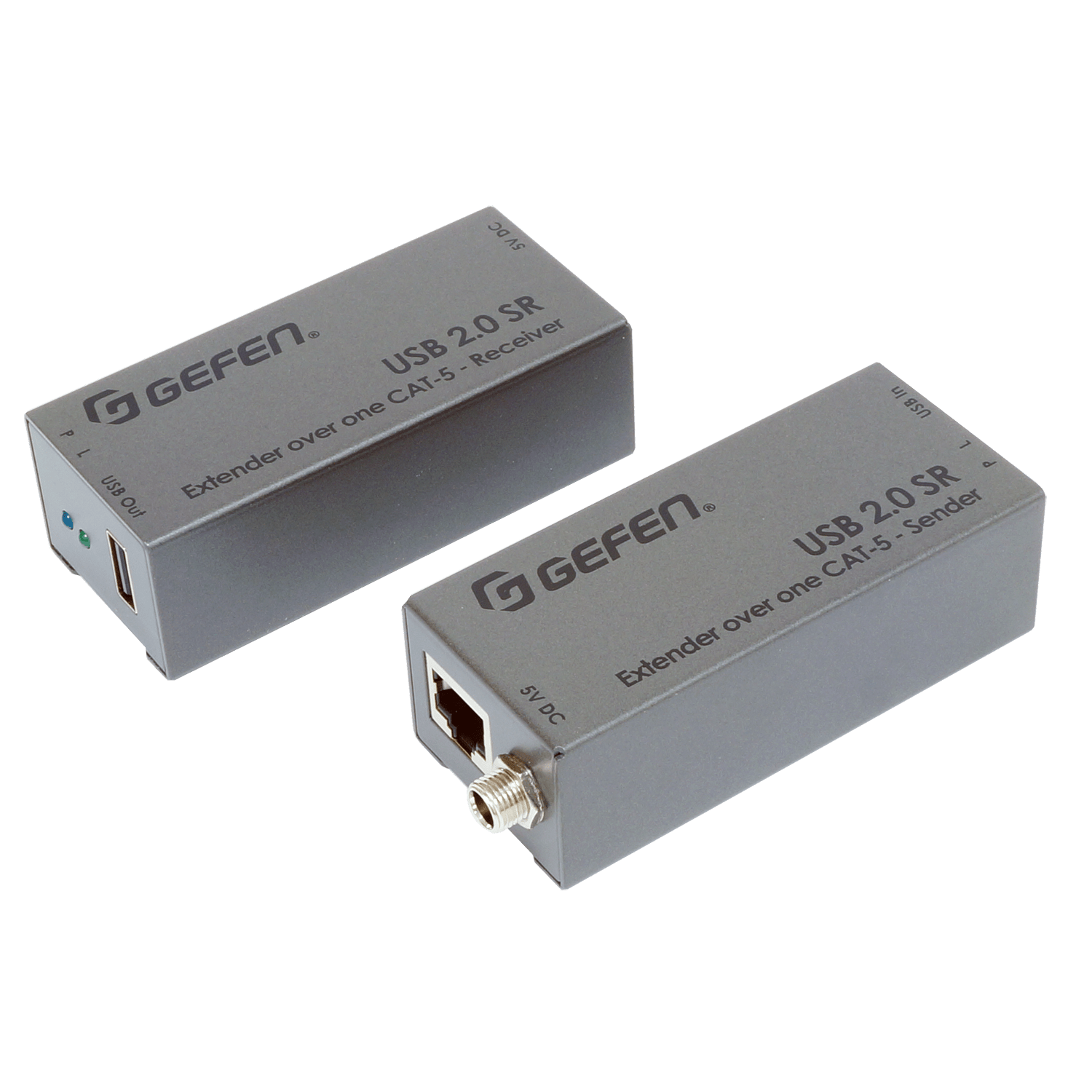

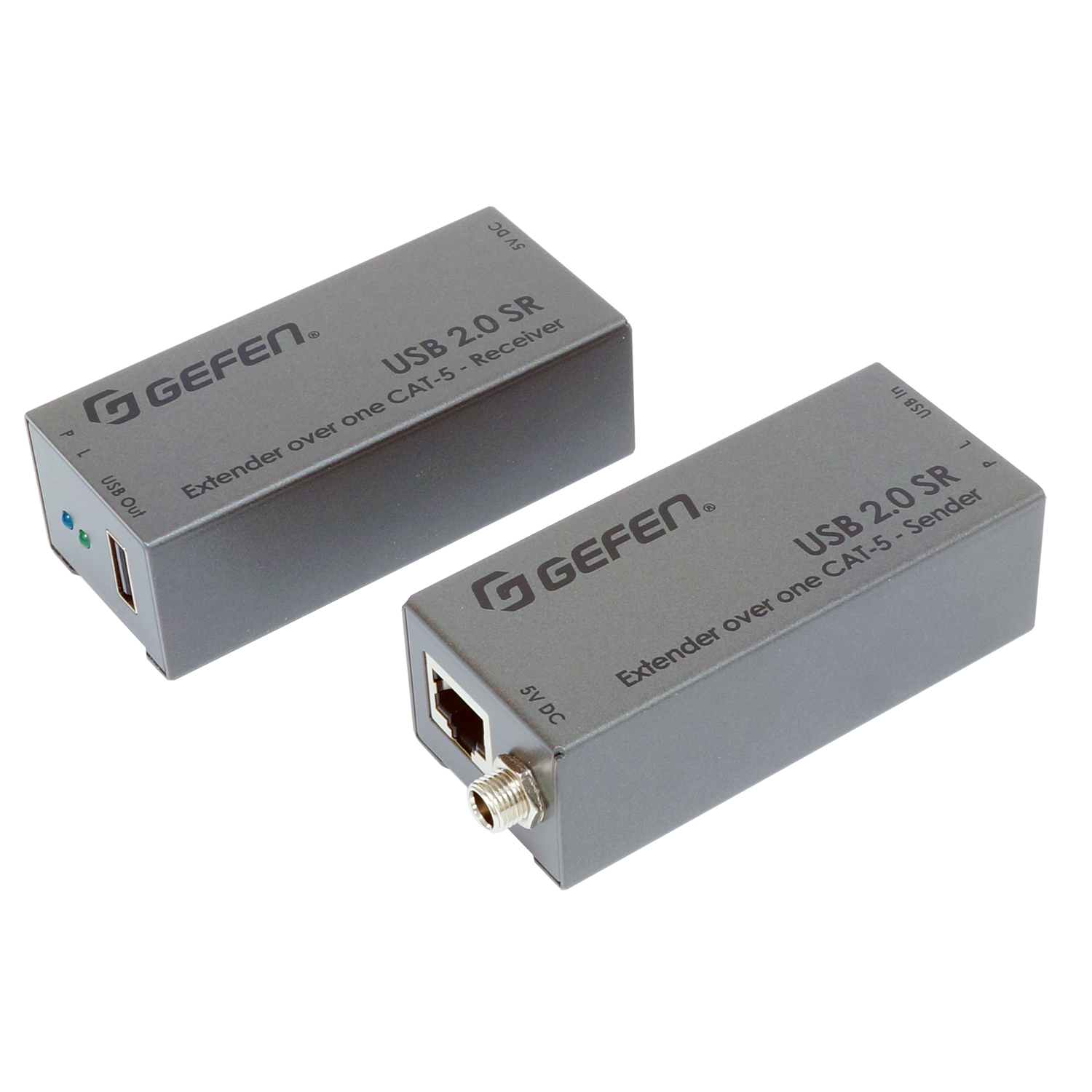

The Gefen EXT-USB2.0-SR system operates with two main components: a Sender unit and a Receiver unit. First, connect the Sender unit to a USB host device, such as a computer, using the included USB cable. Next, connect your USB peripheral device to the USB Out port on the Receiver unit. The Sender and Receiver are then linked using a single, standard CAT-5e or better cable up to 165 feet (50 meters) in length. Finally, attach the two included 5V DC locking power supplies to both the Sender and Receiver and plug them into available electrical outlets to power the system. As a true plug-and-play, 100% hardware solution, the extender requires no software drivers and works instantly across all major operating systems.

Additional Information

Specifications

USB Speed: Up to 480 Mbps

Supported USB Standards: USB 2.0, USB 1.1

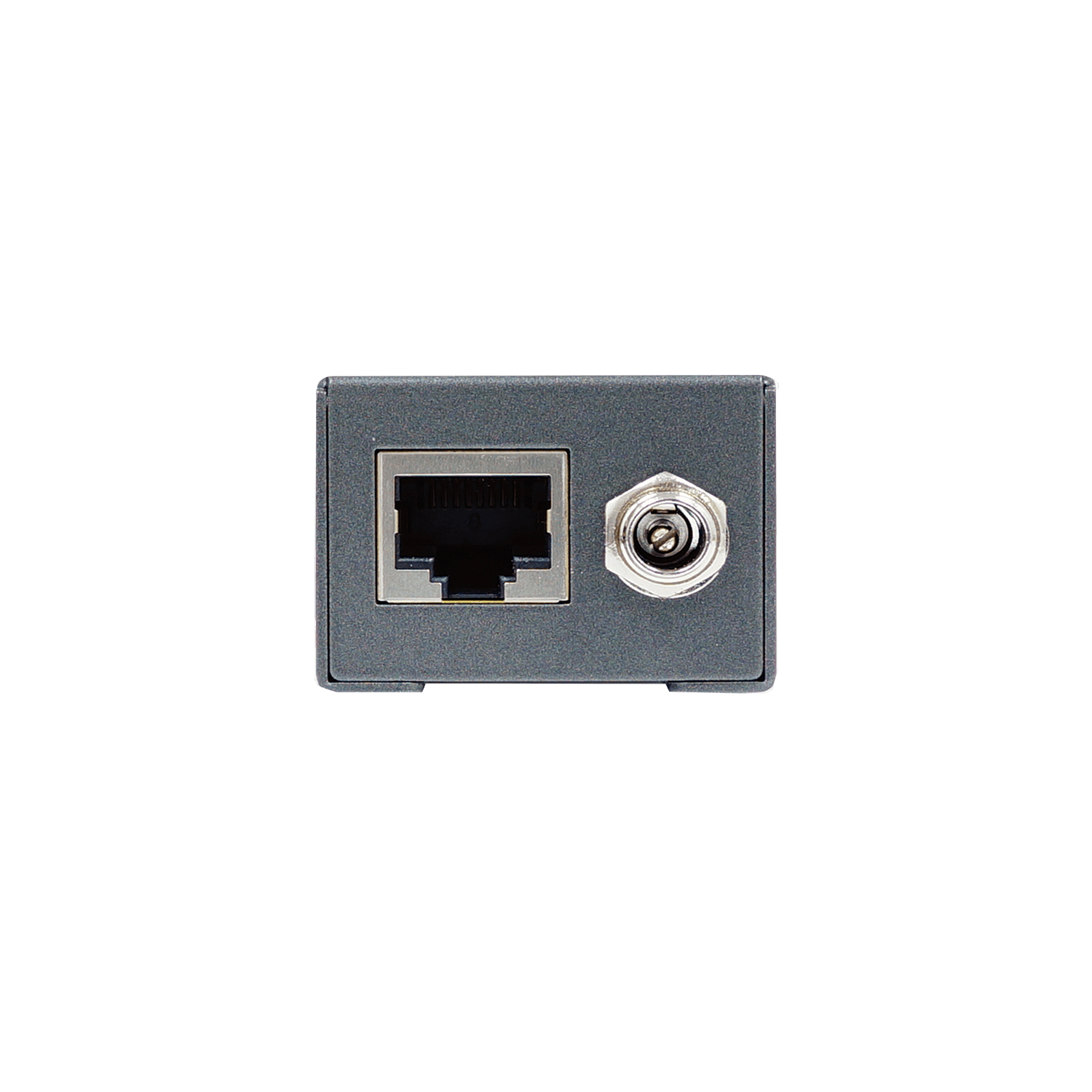

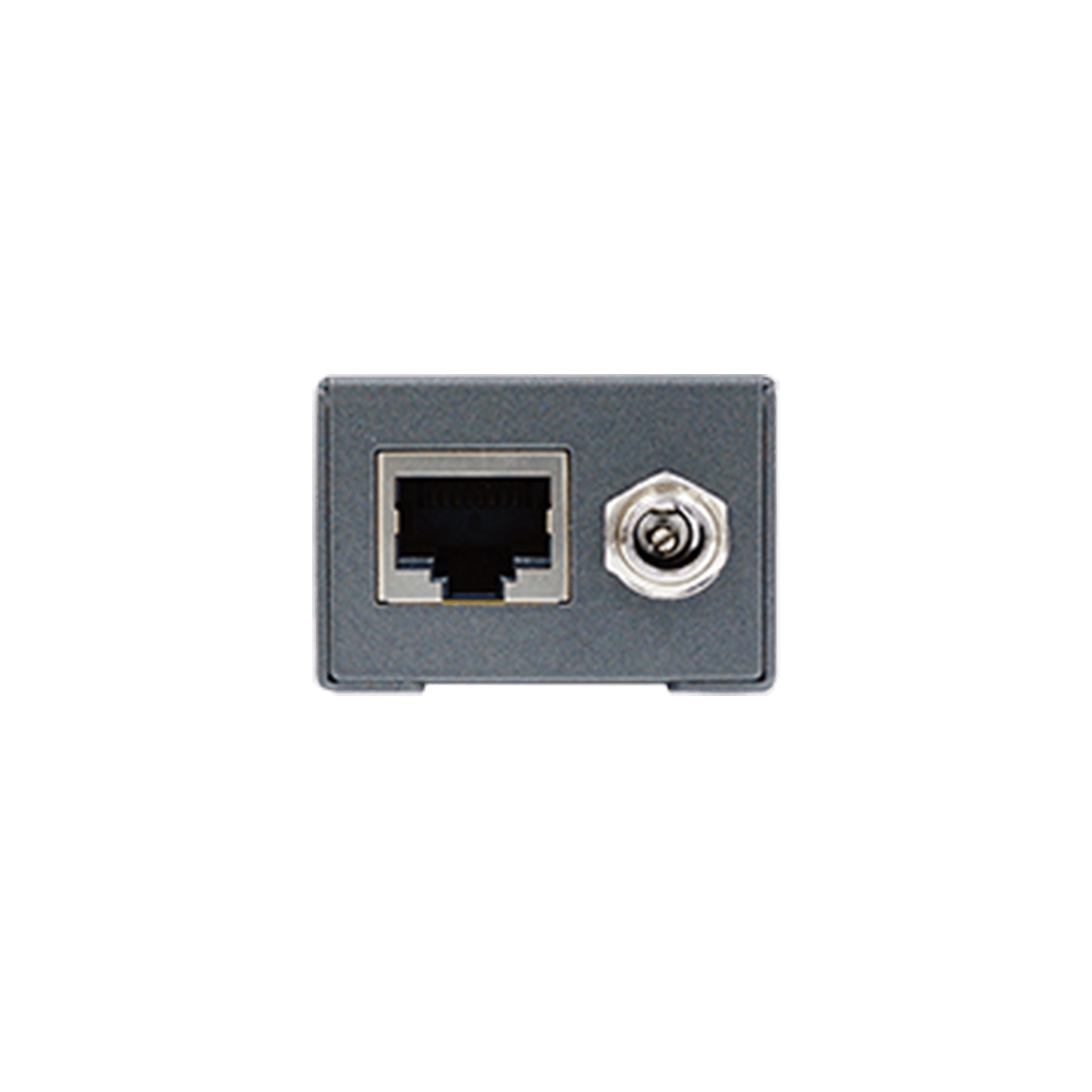

Link Connectors (Sender/Receiver): 1 x RJ-45, shielded

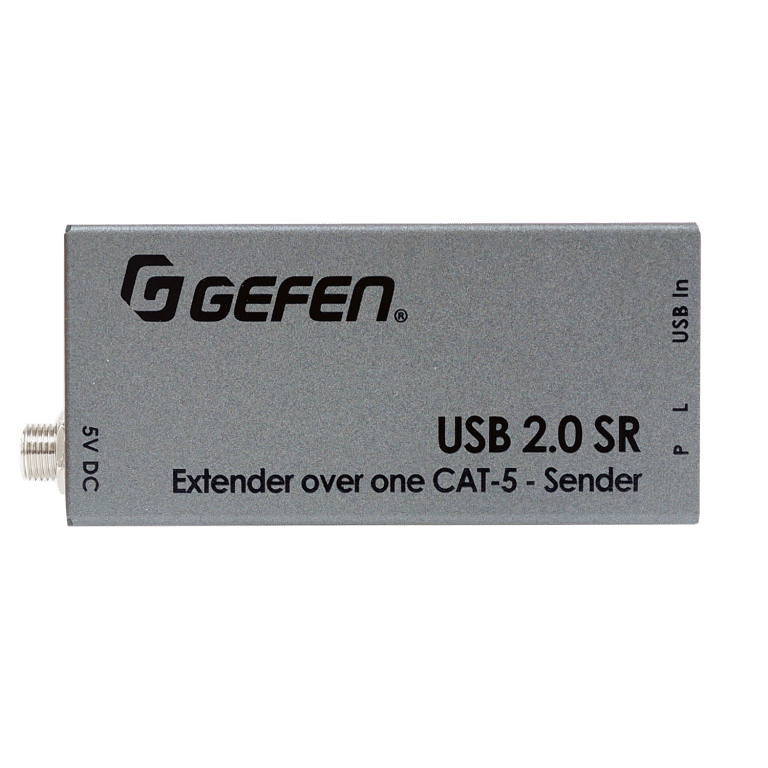

USB Connector (Sender): 1 x USB type B

USB Connector (Receiver): 1 x USB type A

USB Port Current Capability (Receiver): 2A at 5V DC

Power Supply Connectors (Sender/Receiver): Locking-type, 5.5mm barrel/2.5mm pin

Indicators (Sender/Receiver): 1 x Green Link LED, 1 x Blue Power LED

Power Supply Voltage (Sender/Receiver): 5V DC

Power Consumption (Sender/Receiver): 0.65W / 0.8W (max.)

Operating Temperature: +32 to +122 °F (0 to +50 °C)

Operating Humidity: 5% to 90% RH, non-condensing

Storage Temperature: -4 to +158 °F (-20 to +70 °C)

Storage Humidity: 0% to 95% RH, non-condensing

MTBF: 50000 hours

Dimensions (W x H x D) (Sender/Receiver): 3.4" x 1.1" x 1.5" (85 mm x 28 mm x 38 mm)

Net Weight (Sender/Receiver): 0.3 lbs (0.13 kg) each

Shipping Weight: 2.2 lbs. (1 kg)
UPC: 888814999969

System Requirements

Operating System: Supports all major operating systems, including Windows, macOS, and Linux. No software drivers are required.

Cabling: One (1) industry-standard, RJ-45 terminated CAT-5e or better cable, up to a maximum length of 165 feet (50 meters).

Host and Peripheral: A host computer with an available USB port and any USB 1.1 or 2.0 compliant peripheral device.

Power: Two (2) available electrical outlets to power the Sender and Receiver units with the included power supplies.

What's in the Box

(1) USB 2.0 SR Extender - Sender Unit

(1) USB 2.0 SR Extender - Receiver Unit

(1) 6 ft. USB Cable (A-B)

(2) 5V DC Locking Power Supplies (EXT-PS526AIP-LP-6)

(1) Quick-Start Guide

Warranty

3 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-USB2.0-SR Manual
Gefen EXT-USB2.0-SR Data Sheet
Gefen EXT-USB2.0-SR Declaration of Conformity
