USB-C EDID Detective with EDID Control & 8K Support (GF-EDD-UC)

GF-EDD-UC

Modern workstations and AV systems depend on clear communication between source and display—but when that link breaks down, productivity does too. When displays are powered off, switched away, or routed through complex systems, that EDID handshake can be lost, leaving you with blank screens, mismatched resolutions, and unnecessary frustration. When a laptop or docking station loses EDID communication, meeting momentum evaporates.



The Gefen GF-EDD-UC captures and stores the display's EDID so that even if the monitor is unplugged or the cable swapped, the source never misses a beat. Maintains stable USB-C Alt Mode video up to 8K@30 and 4K@60 Hz with HDR10, Dolby Vision, and HLG formats with HDCP 2.3 content protection. Perfect for conference-room hubs, classrooms, and hybrid workspaces.
$399.00
USB - C EDID Detective with EDID Control & 8K Support (GF - EDD - UC) - GF-EDD-UC - Gefen
USB - C EDID Detective with EDID Control & 8K Support (GF - EDD - UC) - GF-EDD-UC - Gefen
USB - C EDID Detective with EDID Control & 8K Support (GF - EDD - UC) - GF-EDD-UC - Gefen
USB - C EDID Detective with EDID Control & 8K Support (GF - EDD - UC) - GF-EDD-UC - Gefen
USB - C EDID Detective with EDID Control & 8K Support (GF - EDD - UC) - GF-EDD-UC - Gefen
USB - C EDID Detective with EDID Control & 8K Support (GF - EDD - UC) - GF-EDD-UC - Gefen

Key Features

Supports High Resolutions and HDR: Maintains stable USB-C Alt Mode video up to 8K@30Hz and 4K@60Hz with 32.4Gbps (HBR3) bandwidth, including HDR10, Dolby Vision, and HLG formats for stunning visual quality.



Universal USB-C Compatibility: Works with any USB-C device using DisplayPort Alt Mode—ideal for laptops, tablets, docking stations, and other modern workstations in conference rooms and classrooms.



Advanced EDID Management: Features five factory-loaded EDID profiles and three user-programmable banks for maximum flexibility in any AV setup, selectable via DIP switches.



Signal Stability and Reliability: Employs auxiliary channel re-clocking and persistent HPD (Hot Plug Detection) to ensure continuous signal negotiation and prevent connection interruptions.



Field-Upgradable and Programmable: USB-C service port allows for easy firmware updates and custom EDID management in the field, with a program button for quick EDID capture from connected displays.



Secure Configuration: Write-enable DIP switch prevents accidental overwriting of critical EDID profiles, protecting your custom configurations during deployment.



Robust Professional Design: Durable metal enclosure with surface-mount capability, low power consumption (<3W), and 50,000-hour MTBF ensures reliable performance in demanding commercial installations.

How It Works

The Gefen GF-EDD-UC USB-C EDID Detective is a plug-and-play solution that ensures reliable communication between your USB-C source and display. Simply connect it inline between your source device (laptop, docking station, or tablet) and your display cable. The device learns and stores the display's EDID information, ensuring the source always receives correct parameters—even if the monitor is powered off, disconnected, or switched away.



The GF-EDD-UC prevents blank screens, resolution resets, and desktop rearrangement by continuously presenting stored EDID data. Supports full USB 2.0 data pass-through and HDCP 2.3 content protection.



For custom setups, use the program button to capture EDID from a connected display or the USB-C port to load custom profiles and firmware updates. Select from five factory profiles or three programmable banks via DIP switches.

Additional Information

Specifications

Video Support

  • Maximum Resolution: Up to 8K@30Hz and 4K@60Hz
  • Video Bandwidth: 32.4Gbps (HBR3)
  • HDR Formats: HDR10, Dolby Vision, HLG
  • Content Protection: HDCP 2.3 pass-through

Connectivity

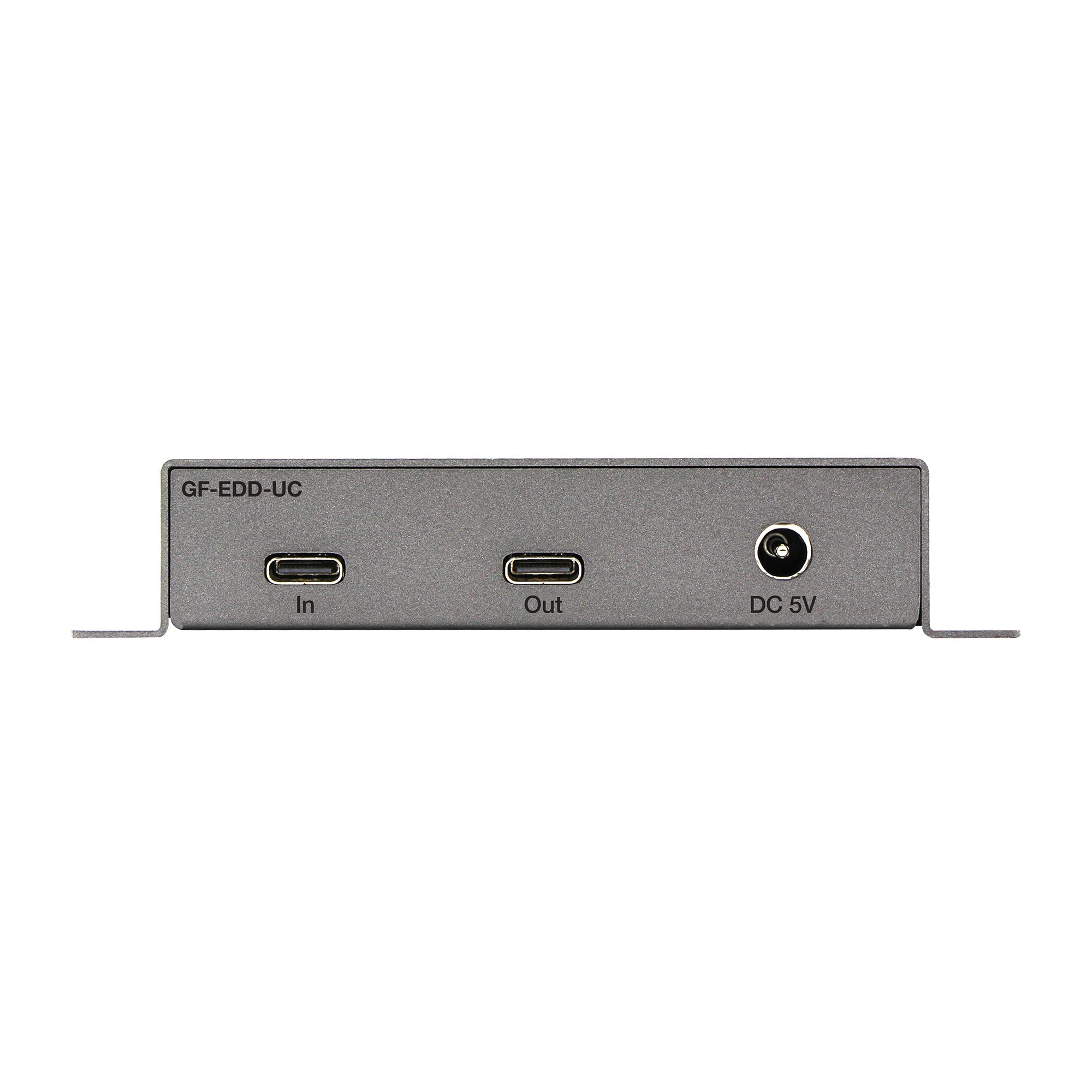

  • Video Input: (1) USB-C, 24-pin female
  • Video Output: (1) USB-C, 24-pin female
  • USB-C Alt Mode: DisplayPort compatible
  • USB Data: 480Mbps USB 2.0 pass-through

EDID Management

  • Factory Profiles: Five pre-loaded EDID banks
  • Programmable Banks: Three user-programmable EDID slots

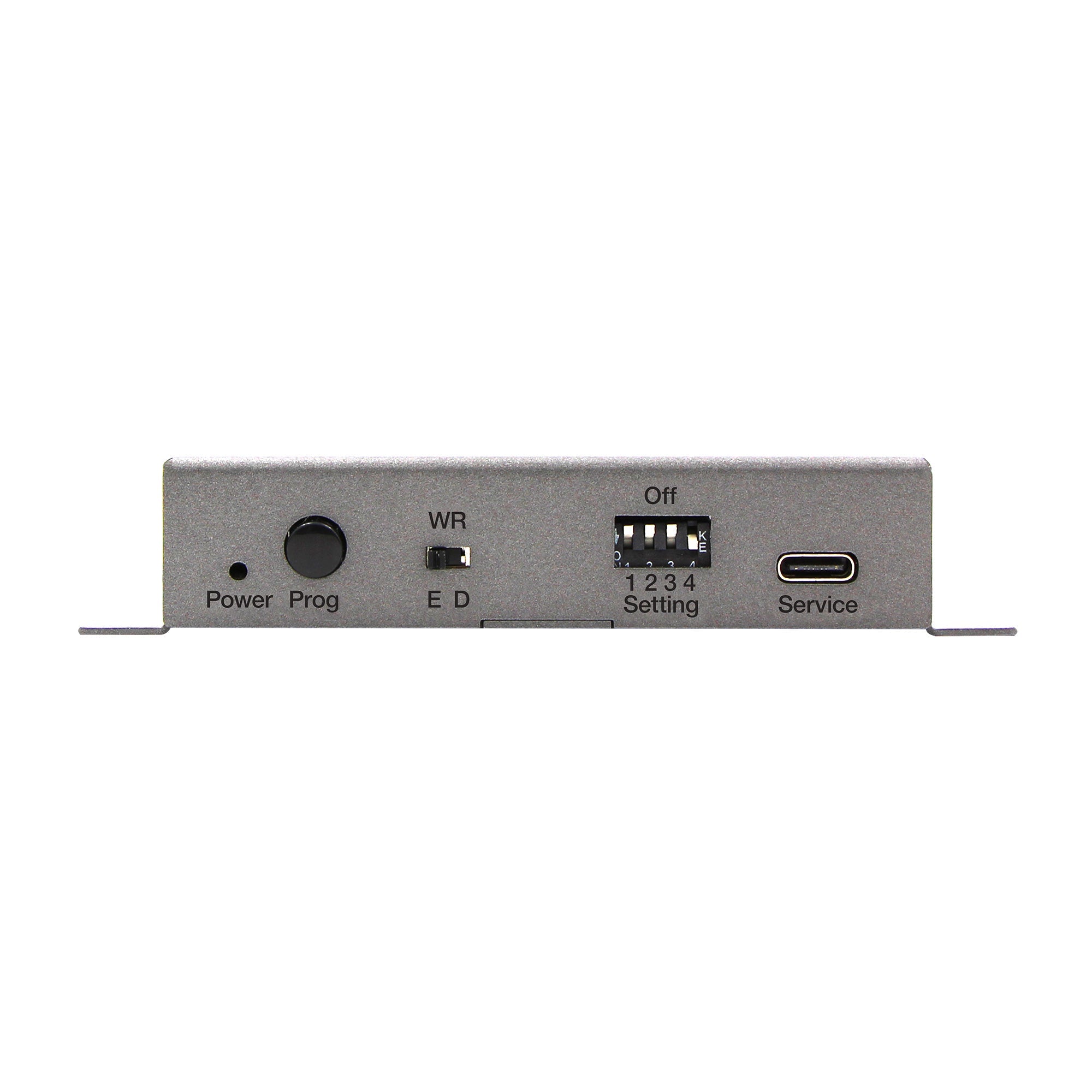

  • EDID Capture: Front-panel program button for direct capture
  • Write Protection: 2-position DIP switch for profile security

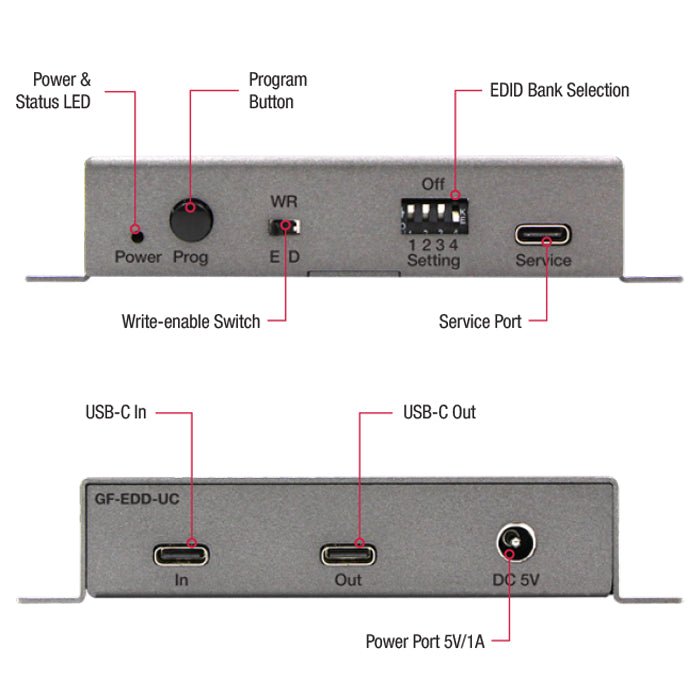

Control & Configuration

  • Service Port: (1) USB-C port for firmware updates and EDID management
  • Bank Selection: 4-position recessed DIP switch
  • Program Button: (1) Tact-type button for EDID recording
  • Status Indication: Power & Status LED

Power

  • Input: 5V/1A DC (multi-region power supply included)
  • Programming Power: USB bus power supported
  • Consumption: <3W typical
  • MTBF: 50,000 hours

Physical

  • Dimensions: 90mm (W) x 72mm (H) x 20mm (D)
  • 3.54" x 2.83" x 0.79"
  • Weight: 0.40 lbs (0.18 kg)
  • Enclosure: Metal, surface-mountable
  • Mounting: Surface-mount capability

Environmental

  • Operating Temperature: 0°C to +50°C (32°F to 122°F)
  • Operating Humidity: 20% to 90% RH (non-condensing)

Compliance & Warranty

  • Warranty: 3-year limited warranty
  • Standards: USB-C DisplayPort Alt Mode compliant

Ideal for...

Conference Room & Meeting Spaces

  • Corporate meeting rooms with hot-desking and BYOD policies
  • Huddle rooms with shared USB-C docking stations
  • Boardrooms requiring consistent display output during presentations
  • Video conferencing setups where displays switch inputs frequently

Educational Environments

  • Classrooms with rotating instructor laptops and tablets
  • Training facilities with multiple presenters per session
  • Computer labs with USB-C equipped workstations
  • Lecture halls with shared display infrastructure

Hybrid Workspaces

  • Hot-desk environments with transient USB-C connections
  • Collaborative spaces with shared monitors and peripherals
  • Remote work hubs where users frequently connect/disconnect
  • Flexible seating areas with plug-and-play display access

Professional AV Installations

  • Video production studios with USB-C camera and monitor setups
  • Broadcast facilities requiring stable EDID for signal routing
  • Post-production workstations with multiple USB-C displays
  • Live event venues with temporary USB-C video connections

IT & Tech Deployment

  • Enterprise docking station rollouts requiring EDID standardization
  • Multi-monitor workstation configurations with USB-C displays
  • Display wall installations using USB-C distribution
  • IT departments managing diverse USB-C device ecosystems

Healthcare & Medical

  • Examination rooms with shared medical imaging displays
  • Telehealth stations requiring reliable video connectivity
  • Medical workstations on wheels (WOWs) with USB-C connections
  • Diagnostic imaging centers with rotating display access

Retail & Hospitality

  • Digital signage networks with USB-C media players
  • Hotel meeting rooms with guest laptop connectivity
  • Retail demonstration areas with shared displays
  • Reception areas with hot-swap USB-C presentation capability

Problems It Solves

  • Blank screens when monitors power off or switch inputs
  • Resolution resets disrupting desktop layouts and workflows
  • Lost EDID communication in complex AV routing systems
  • Meeting delays caused by connectivity troubleshooting
  • Desktop rearrangement after display reconnection
  • Inconsistent video handshake with rotating USB-C devices

System Requirements

Source Device Requirements

  • USB-C port with DisplayPort Alt Mode support
  • Compatible devices include:
  • Laptops with USB-C video output
  • Desktop computers with USB-C/Thunderbolt ports
  • Tablets with USB-C DisplayPort Alt Mode
  • Docking stations with USB-C video pass-through
  • USB-C media players and presentation systems

Display Requirements

  • USB-C input supporting DisplayPort Alt Mode, or
  • DisplayPort-equipped display with USB-C to DisplayPort cable
  • Display resolution support:
  • Up to 8K@30Hz (7680 x 4320)
  • Up to 4K@60Hz (3840 x 2160)
  • All lower resolutions supported

Cable Requirements

  • USB-C cables rated for video transmission
  • DisplayPort Alt Mode compatible cables
  • Cable bandwidth: Must support 32.4Gbps (HBR3) for maximum resolution
  • Recommended: Certified USB-C cables with DP Alt Mode specification

Power Requirements

  • Input: 5V/1A DC (multi-region power supply included)
  • Alternative: USB bus power for EDID programming mode
  • Power consumption: <3W typical operation

Environmental Requirements

  • Operating Temperature: 0°C to +50°C (32°F to 122°F)
  • Storage Temperature: -20°C to +70°C (-4°F to 158°F)
  • Operating Humidity: 20% to 90% RH (non-condensing)
  • Adequate ventilation for continuous operation

Optional Requirements (for Advanced Features)

  • Computer with USB-C port for firmware updates via service port
  • EDID management software (if using custom EDID profiles)
  • Windows, macOS, or Linux OS for EDID programming (OS-independent operation)

Content Protection

  • HDCP 2.3 compatible source and display (for protected content)
  • HDCP pass-through supported for encrypted video streams

Compatibility Notes

  • Works with any USB-C device using DisplayPort Alt Mode standard
  • Does not support USB-C devices with HDMI Alt Mode only
  • USB 2.0 data pass-through supported at 480Mbps
  • No driver installation required for basic operation

Resources

Gefen GF-EDD-UC Datasheet

Frequently Asked Questions

What is an EDID Detective and why do I need one?

An EDID Detective is a device that captures and stores a display's EDID (Electronic Display Identification Data) information. You need one when displays are powered off, switched away, or routed through complex AV systems, preventing blank screens, resolution resets, and desktop rearrangement that occur when the EDID handshake is lost between your source device and display.

Does the GF-EDD-UC work with all USB-C devices?

The GF-EDD-UC works with any USB-C device that supports DisplayPort Alt Mode, including laptops, tablets, docking stations, and modern workstations. It does not support USB-C devices with HDMI Alt Mode only. Most modern MacBooks, Dell XPS, HP EliteBooks, and Lenovo ThinkPads with USB-C video output are fully compatible (check with your computer manufacturer).

What resolutions and refresh rates does it support?

The device supports video up to 8K@30Hz and 4K@60Hz with 32.4Gbps (HBR3) bandwidth. It also supports HDR10, Dolby Vision, and HLG formats, along with HDCP 2.3 content protection for encrypted video streams.

Can I use this with my conference room setup?

Yes, the GF-EDD-UC is specifically designed for conference rooms, classrooms, and hybrid workspaces where multiple users connect and disconnect USB-C devices throughout the day. It prevents the frustrating blank screens and resolution changes that disrupt meetings when presenters switch laptops or monitors power off.

How do I program custom EDID profiles?

Use the front-panel program button to capture EDID directly from a connected display, or access the USB-C service port to load custom EDID profiles via computer. The device features five factory-loaded profiles and three user-programmable banks selectable via DIP switches. The write-enable switch protects your configurations from accidental changes.

Will this work with my USB-C docking station?

Yes, the GF-EDD-UC works inline between your docking station and display. It maintains stable EDID communication even when the monitor is powered off or the docking station switches between users, preventing the common issue where laptop displays reset when disconnecting from docks.

Does it support data pass-through for USB devices?

Yes, the device supports full USB 2.0 data pass-through at 480Mbps, maintaining all functionality of your USB-C connection including peripherals connected through the display or downstream devices.

What happens when I switch between different displays?

The GF-EDD-UC stores the EDID from your primary display and continuously presents it to the source device. When you switch displays or the monitor powers off, your computer maintains the correct resolution and desktop layout instead of resetting, preventing window rearrangement and blank screens.

Does it require drivers or software installation?

No, the GF-EDD-UC is completely plug-and-play for normal operation. No drivers or software are required. The USB-C service port is only needed for advanced features like custom EDID programming or firmware updates.

Can I update the firmware?

Yes, firmware updates are available through the USB-C service port, ensuring the device stays current with new features and compatibility improvements. This field-upgradable design protects your investment for future USB-C and DisplayPort standards.
