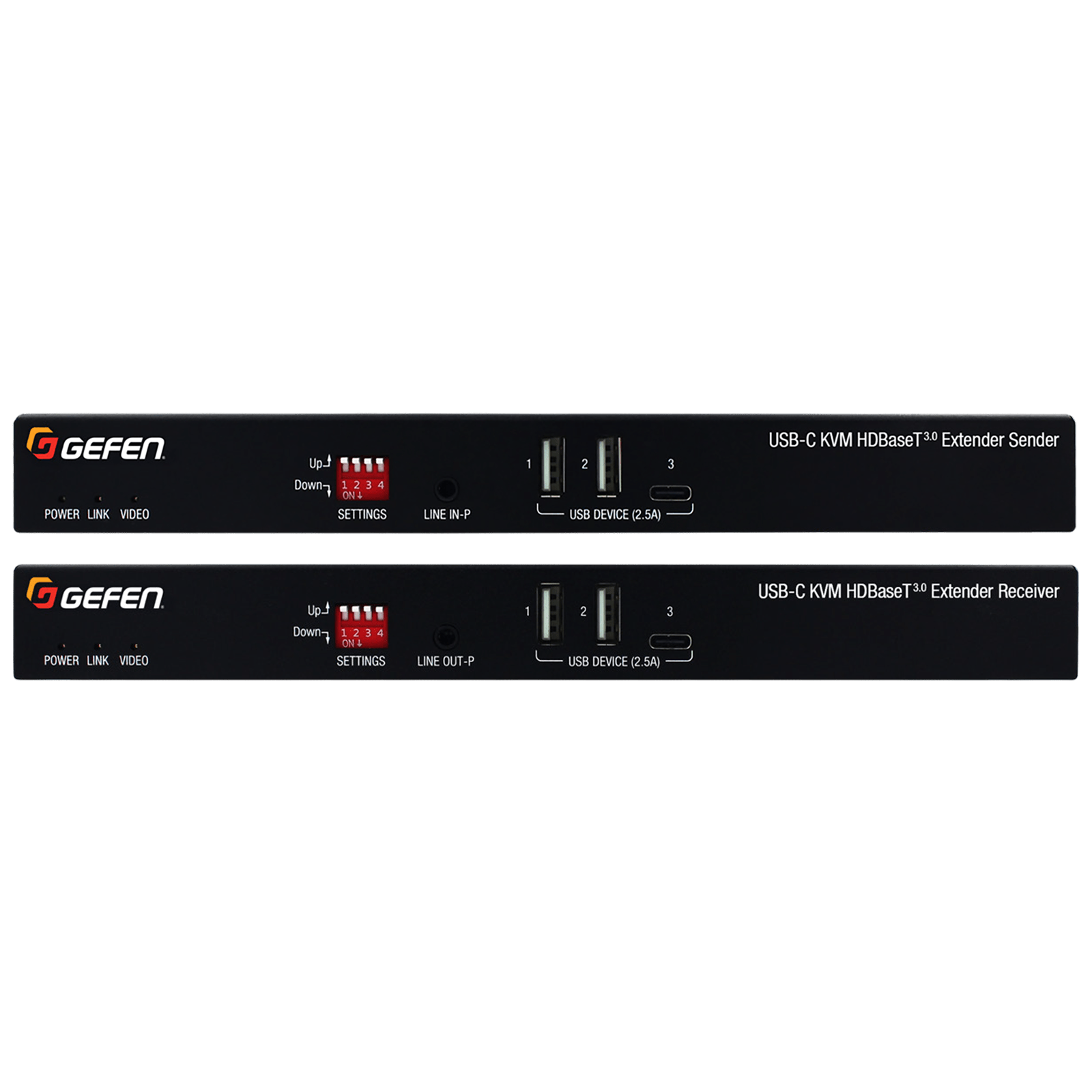

USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)

GF-EXT-UCK-HBT3

The Gefen GF-EXT-UCK-HBT3 Extender brings powerful USB-C connectivity to professional AV environments, extending uncompressed 4K 60Hz video, USB 2.0 data, analog audio, and RS-232 control up to 130 feet (40 meters) over a single CAT6A cable. Purpose-built for conference rooms, educational facilities, and hybrid collaboration spaces, this next-generation extender leverages HDBaseT 3.0 technology for flawless, zero-latency transmission. The USB-C input delivers video, USB 2.0 peripheral data, and up to 60W of charging power to connected laptops (external power supply required), while the system's built-in flexibility includes audio de-embedding, bi-directional PoH+ support, multi-port USB device connections, EDID management, and field-upgradeable firmware. Compact, rugged, and environmentally friendly, the GF-EXT-UCK-HBT3 redefines what's possible in high-performance, user-centric AV system design.

❗Comes with both Sender and Receiver
$1,694.94
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)
USB-C KVM HDBaseT 3.0 Extender with 4K@60Hz & USB Support (GF-EXT-UCK-HBT3)

Key Features

Reference-Grade 4K Delivery: Extends uncompressed 4K@60Hz 4:4:4 8-bit video, USB 2.0 data, analog audio, and RS-232 control over a single CAT6a cable, reaching 40m (131ft) at 4K@60Hz and up to 70m (230ft) at 4K@30Hz.



Full-Function USB-C Input: One USB-C port carries 4K DisplayPort Alt Mode video, USB 2.0 data, and up to 60W of laptop charging, streamlining BYOD connections for conference rooms, educational facilities, and hybrid collaboration spaces.



Flexible Audio Architecture: Supports multi-channel formats including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X, with analog line-in pass-through from sender to receiver and independent audio de-embedding available on both units.



Single-Supply Power Flexibility: Bi-directional PoH+ lets the included 20V/6A power adapter power both sender and receiver from either end, cutting cabling and outlet requirements on install.

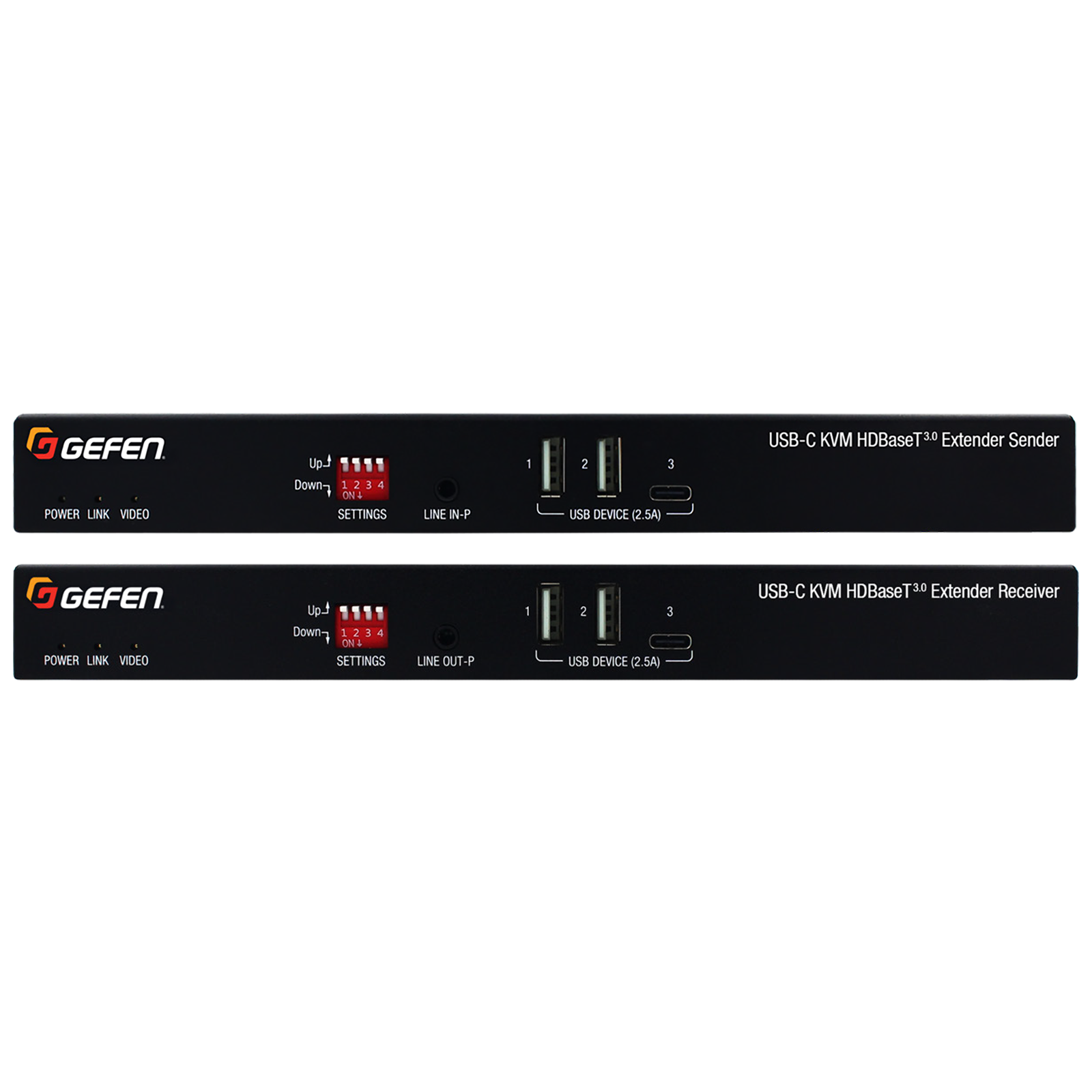

Built-in KVM USB Hub: Both units feature 2x USB Type-A and 1x USB Type-C device ports with 2.5A shared power for keyboard, mouse, camera, and touch panel control, with USB 2.0 pass-through up to 300Mbps.

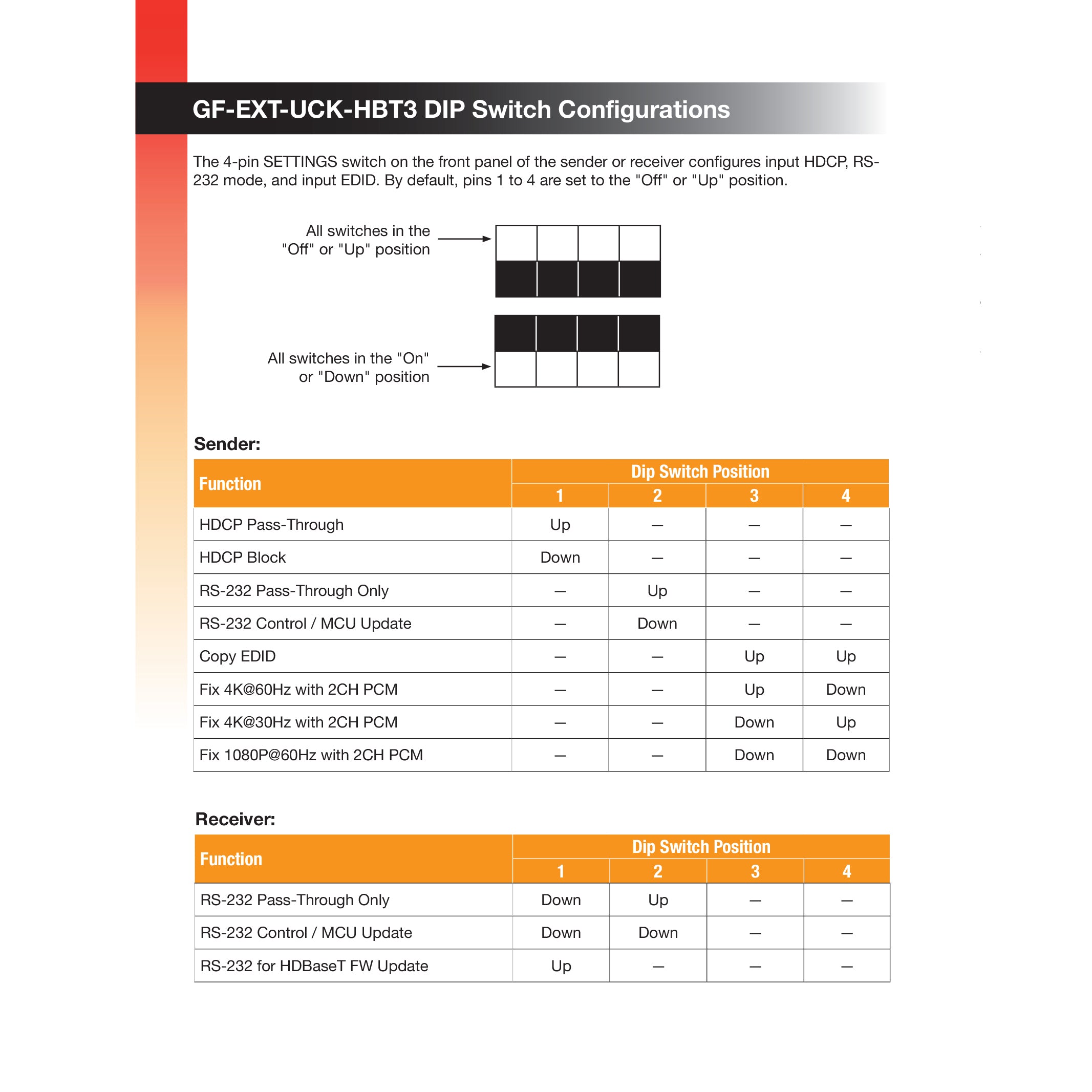

Installation Agility: DIP switches on each unit configure HDCP, EDID (copy or fixed resolution), and RS-232 modes in the field, while firmware can be upgraded over RS-232, keeping the system current without downtime.

How It Works

The Gefen GF-EXT-UCK-HBT3 uses HDBaseT 3.0 technology to transmit uncompressed 4K@60Hz UHD video, USB 2.0 data, and power over a single CAT6a or higher cable, extending high-resolution content and peripheral control up to 40m (131 feet) at 4K@60Hz 4:4:4 and up to 70m (230 feet) at 4K@30Hz. This eliminates the need for multiple cables, reducing installation complexity while preserving signal integrity.


Bi-directional Power over HDBaseT (PoH+) supplies power through the same cable, allowing a single 20V/6A power adapter connected to either the sender or the receiver to power both units, simplifying setup and reducing cable clutter. The system also supports audio de-embedding on both the sender and receiver, plus analog line-in pass-through, enabling users to route audio flexibly from sources to external audio systems.


With DIP-switch configurable EDID and HDCP management and real-time, uncompressed transmission with no latency, the extender ensures consistent display compatibility and fast, natural input response for KVM control. Its robust design, built-in KVM hub with USB 2.0 pass-through up to 300Mbps, and support for multi-channel formats including Dolby Atmos and DTS:X ensure reliable operation in demanding professional environments, such as conference rooms, educational facilities, and hybrid collaboration spaces.

Additional Information

Specifications

  • Video Bandwidth: 18 Gbps
  • Video Input Connector (Sender): (1) USB-C (full-featured, 4K DisplayPort Alt Mode, USB 2.0, up to 60W charging)
  • Video Output Connector (Receiver): (1) HDMI Type A (HDMI 2.0, 4K@60Hz)
  • Maximum Resolution: 4K@60Hz 4:4:4 8-bit (input and output); HDCP 2.3 compliant
  • Audio Support: PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X; analog stereo on LINE IN-P / LINE OUT
  • Analog Audio De-embed Output (Sender/Receiver): (1) 3.5mm mini-stereo jack (LINE OUT)
  • Analog Audio Pass-Through Input (Sender): (1) 3.5mm mini-stereo jack (LINE-IN-P)
  • USB (Sender): (1) USB-C host port (4K video, USB 2.0 data, 60W charging)
  • USB (Sender/Receiver):
    • (2) USB 2.0 Type-A device ports
    • (1) USB 2.0 Type-C device port
    • (3) ports share 2.5A maximum current
  • USB Bandwidth: Up to 300 Mbps (USB 2.0 pass-through)

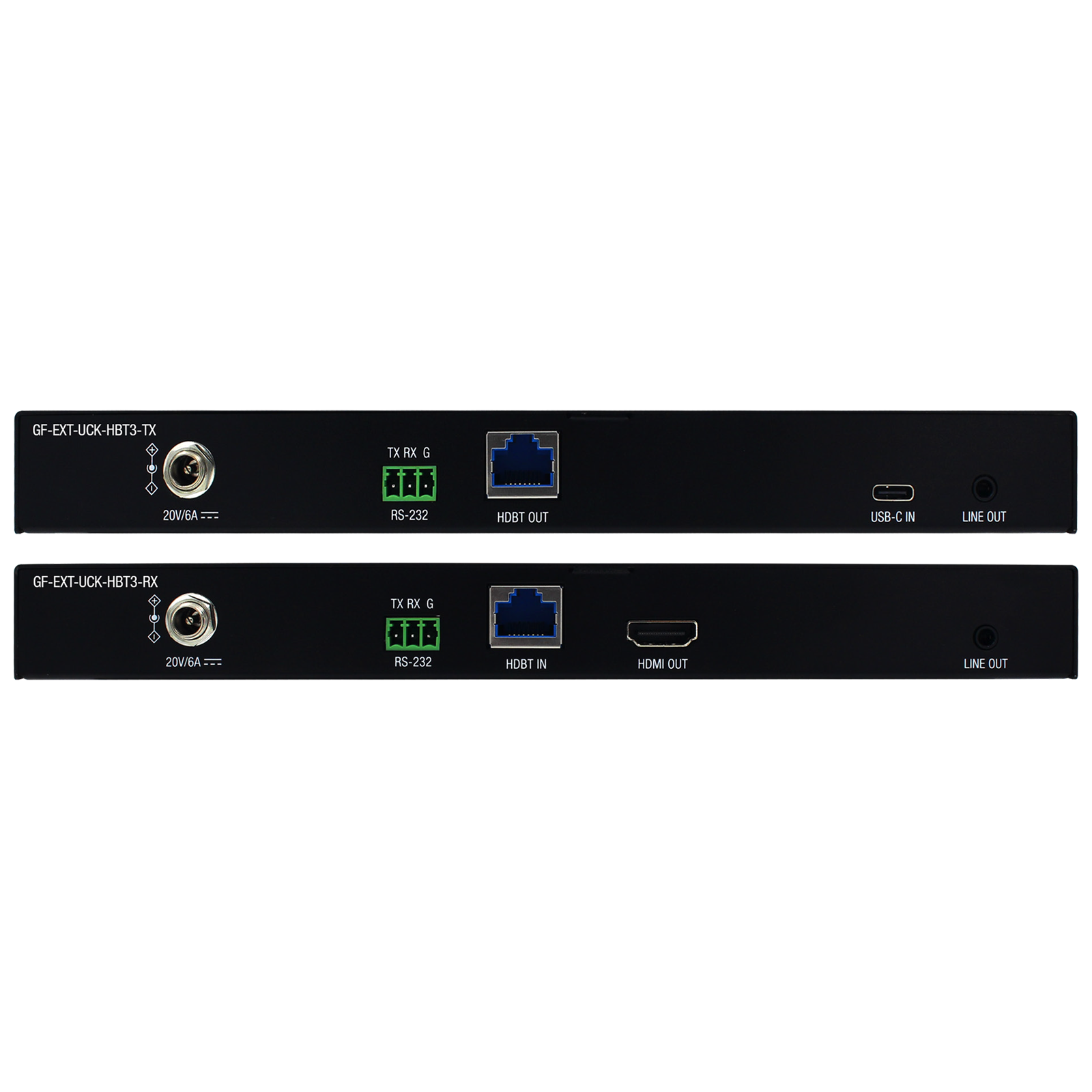

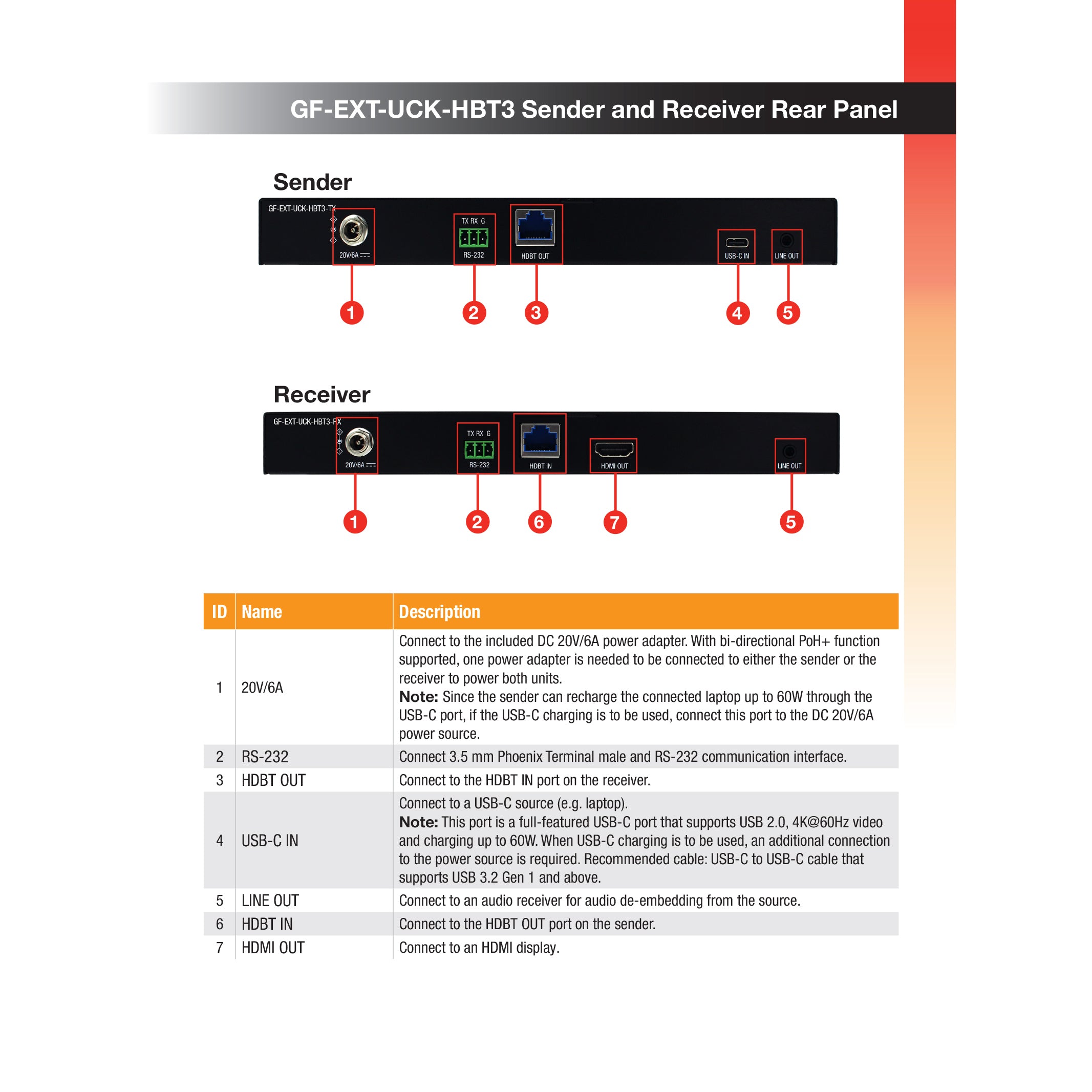

  • RS-232 Port (Sender/Receiver): (1) 3.5mm 3-pin Phoenix female (bi-directional pass-through)

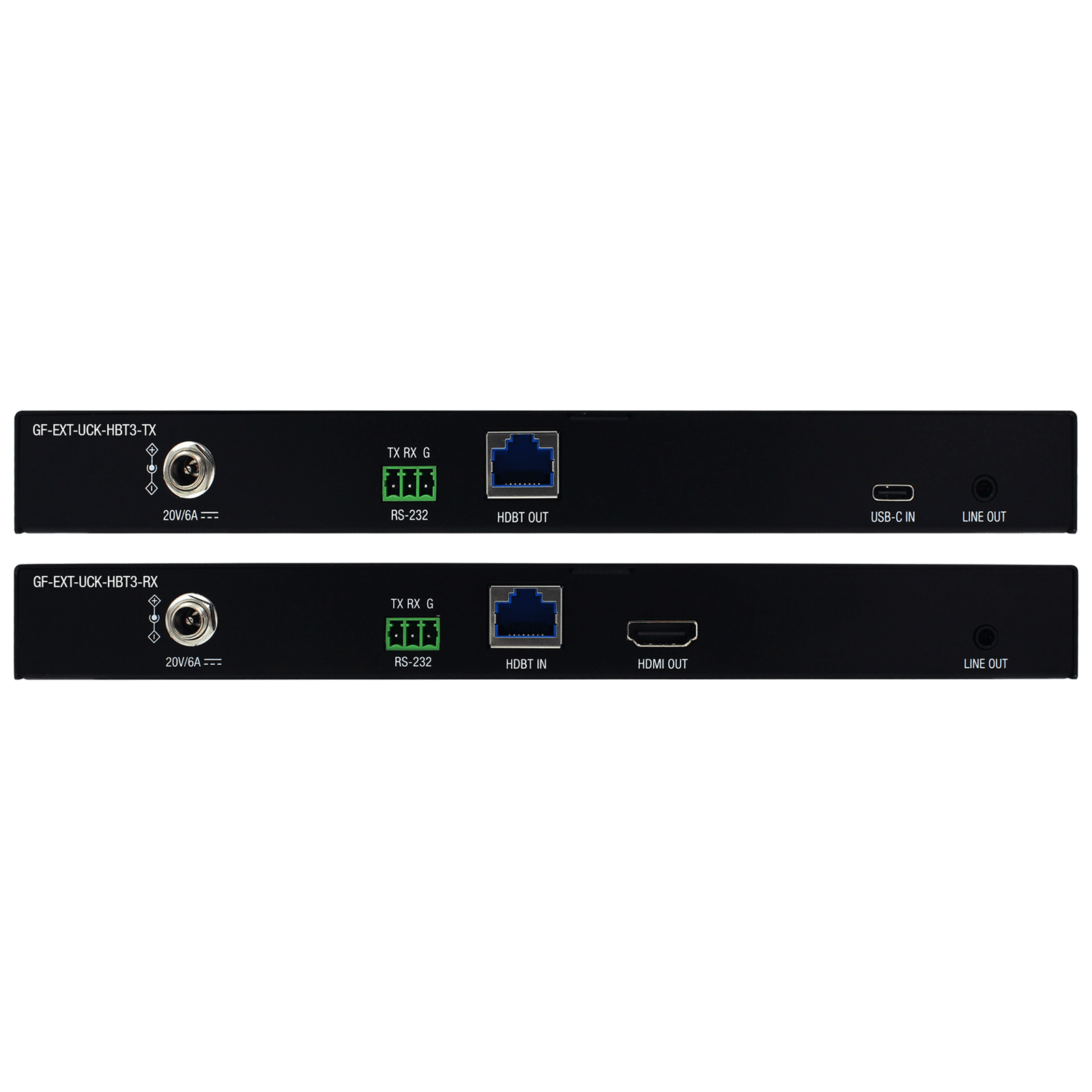

  • HDBaseT (Sender): (1) RJ-45 port (HDBT OUT)
  • HDBaseT (Receiver): (1) RJ-45 port (HDBT IN)

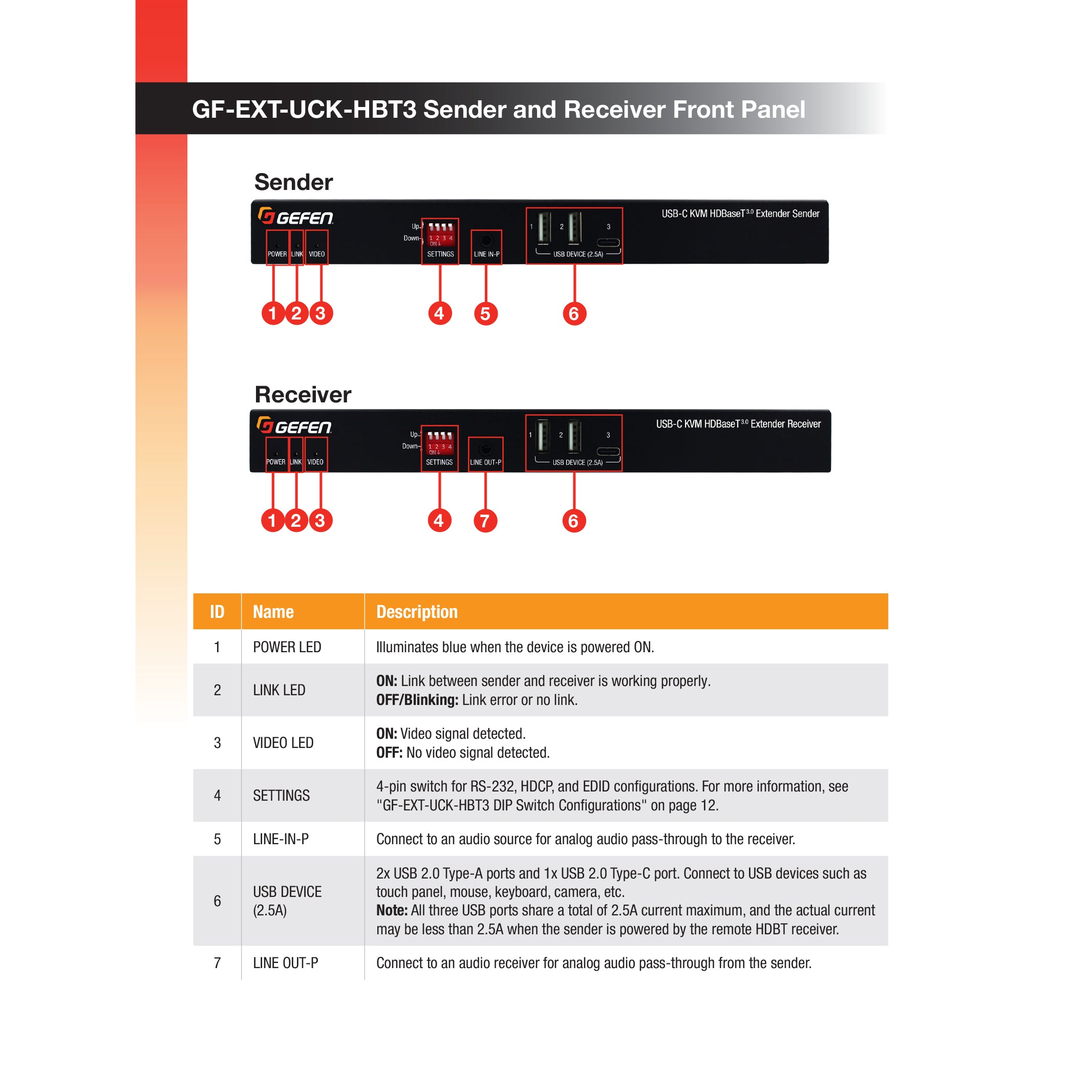

  • Power Indicator (Sender/Receiver): (1) LED, blue
  • Link Indicator (Sender/Receiver): (1) LED, green
  • Video Indicator (Sender/Receiver): (1) LED, green
  • DIP Switches (SETTINGS): (1) 4-pin switch on sender and (1) 4-pin switch on receiver (HDCP, RS-232, EDID configuration)
  • Power Requirement: DC 20V/6A power adapter with locking connector; bi-directional PoH+ (one adapter powers both units)
  • Power Consumption (Max): 113.2W (pair, via PoH+, 60W charging and full USB load)
  • Laptop Charging: Up to 60W via USB-C (external power connection required)
  • Operating Temperature: 0 to +50 °C (32 to 122 °F)
  • Storage Temperature: -20 to +60 °C (-4 to 140 °F)
  • Operating Humidity: 10% to 90% RH (no condensation)
  • ESD Protection: ±8kV air-gap discharge, ±4kV contact discharge
  • Transmission Distance (CAT6a or above):
    • 40 m / 131 ft at 4K@60Hz 4:4:4 8-bit
    • 70 m / 230 ft at 4K@30Hz 4:4:4 8-bit
  • Dimensions (Sender/Receiver): 230 mm x 110 mm x 25 mm (W x D x H), approx. 9 in x 4.3 in x 1 in
  • Product Weight (Sender/Receiver): 0.51 kg (1.12 lbs) each
  • Enclosure: Metal, surface-mountable with included brackets
  • In the Box: (1) Sender, (1) Receiver, (1) 20V/6A power adapter with locking connector, (1) 2m USB 3.2 Gen 2 Type-C to USB Type-C cable, (2) 3.5mm 3-pin Phoenix male connectors (RS-232), (8) mounting brackets and screw set, (1) Quick Start Guide

Ideal for...

Corporate and Conference Spaces

  • Ideal for conference rooms, boardrooms, and hybrid collaboration spaces where a single USB-C laptop connection must deliver 4K video, USB peripherals, and charging simultaneously.

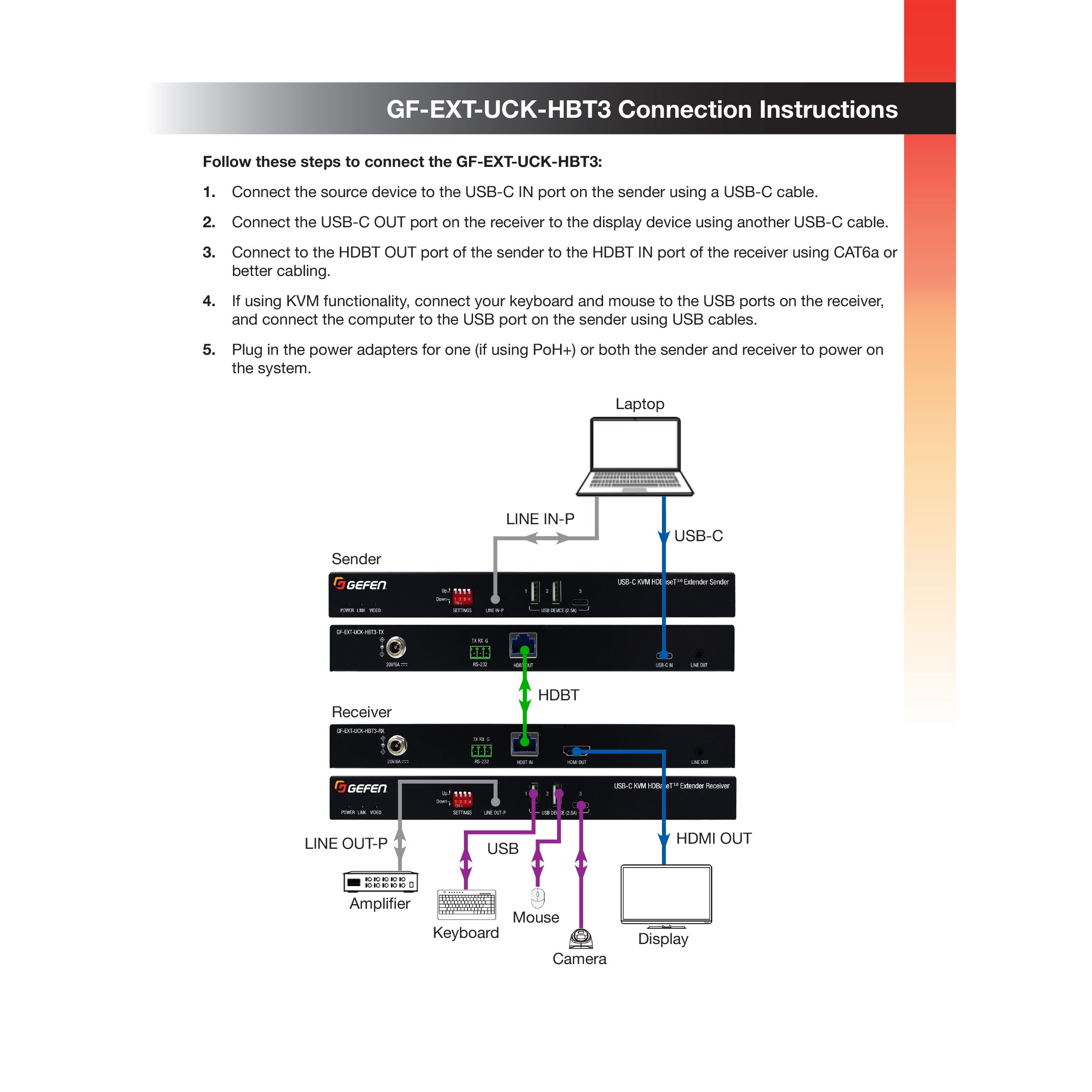

  • Allows users to connect a USB-C laptop at the table while a shared display, touch panel, and amplifier sit across the room, with video, USB 2.0 data, and control carried over one CAT6a cable and up to 60W of laptop charging delivered through the sender's USB-C port.

Broadcast and Production Environments

  • Well-suited for live production control rooms and video edit suites where uncompressed 4K@60Hz 4:4:4 feeds must be monitored in real time without artifacts.
  • Delivers real-time, uncompressed transmission over HDBaseT 3.0, ensuring the exact signal sent from the source reaches the display without latency or compression.

Education and Training Facilities

  • Perfect for universities, lecture halls, and corporate training rooms that demand crisp 4K video and simultaneous device interaction across the room.
  • Allows instructors to extend video, USB keyboard and mouse, and audio over a single HDBaseT 3.0 link up to 40m/131ft at 4K@60Hz or 70m/230ft at 4K@30Hz.

Healthcare and Medical Imaging

  • Suitable for diagnostic review rooms and clinical consultation spaces where pixel-accurate, uncompressed 4:4:4 video reproduction supports detail-rich visual review.
  • Features ±8kV air-gap and ±4kV contact ESD protection plus a durable metal enclosure for reliable operation where equipment uptime matters.

Use Case Examples

  • A university lecture hall where a presenter's USB-C laptop extends 4K presentation content, audio, and USB control to a display and amplifier up to 40 meters away over one CAT6a run.
  • A corporate boardroom where participants bring their own USB-C laptops and gain instant access to the room display plus 60W of charging, with a single power connection at the sender and no extra docks.
  • An industrial or security control room requiring remote keyboard, mouse, camera, and touch panel access at distances up to 70m/230ft over a single cable.
  • A live event venue delivering uncompressed 4K@60Hz 4:4:4 to remote monitors, with analog audio de-embedded independently on both the sender and receiver.

Problems It Solves

  • Eliminates compression artifacts and latency in remote video transmission by extending the uncompressed signal end to end.
  • Reduces cabling complexity by consolidating video, USB 2.0 data, audio, and bi-directional PoH+ power over a single HDBaseT cable, with one power adapter powering both units.
  • Prevents display compatibility issues and signal dropouts with DIP-switch EDID and HDCP management, including EDID copy or fixed-resolution modes.

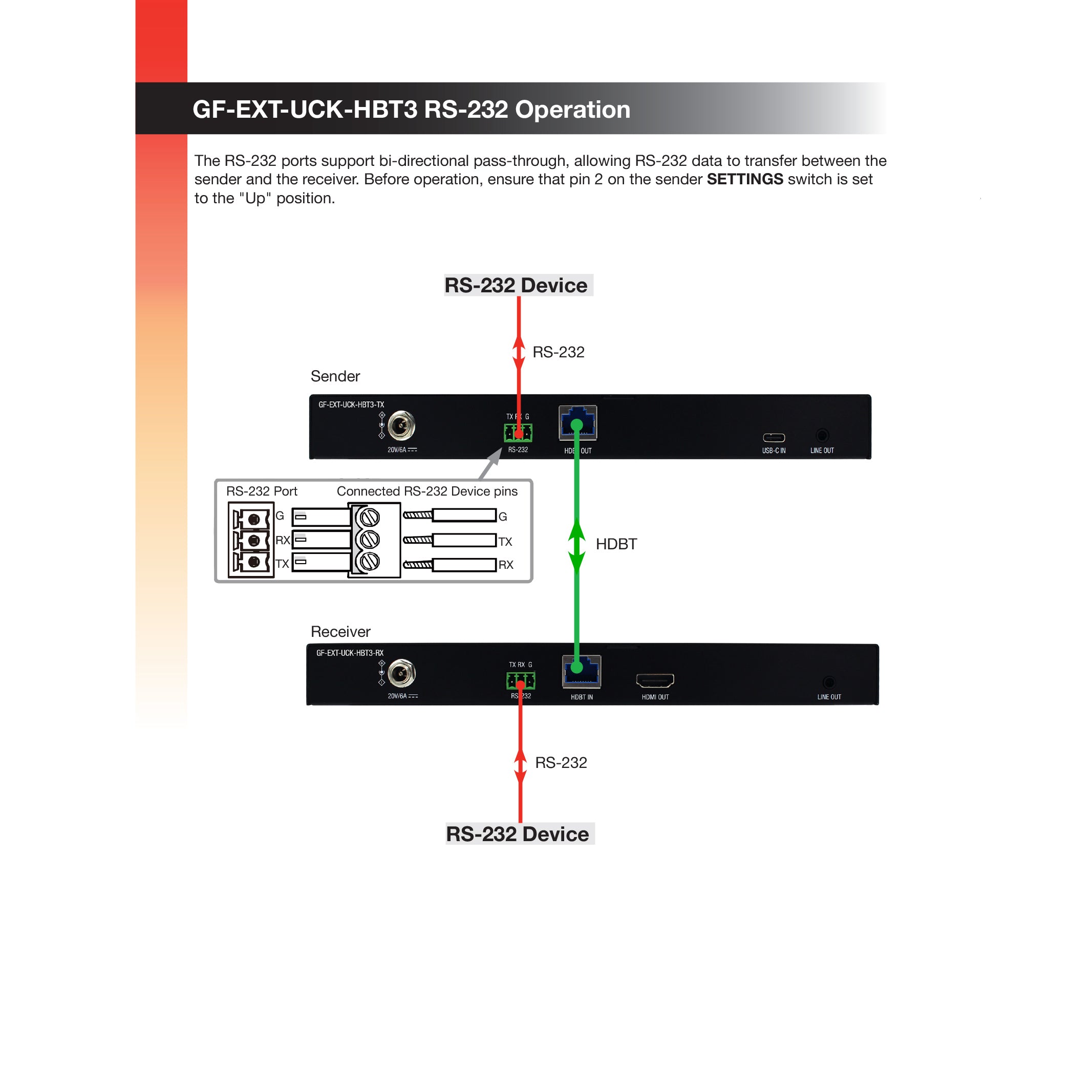

  • Simplifies system maintenance with RS-232 pass-through for control and field-upgradeable firmware over the RS-232 ports.

Resources

Gefen GF-EXT-UCK-HBT3 Manual

Why Choose Gefen?

Gefen is known worldwide for delivering advanced, high-quality AV signal distribution and extension solutions for professional and commercial environments, and is trusted in applications such as corporate collaboration, education, and live event spaces. Their heritage reflects deep expertise in AV signal management and extension technologies.

  • Industry-Leading Technology: Gefen's GF-EXT-UCK-HBT3 combines HDBaseT 3.0 transport with uncompressed 4K@60Hz 4:4:4 8-bit video delivery, a full-function USB-C input with up to 60W laptop charging, and real-time, zero-latency KVM control to meet the demands of professional AV workflows.
  • Robust and Flexible Design: The GF-EXT-UCK-HBT3 features a rugged metal enclosure, bi-directional PoH+ power that runs both units from a single power adapter, DIP-switch EDID and HDCP management, audio de-embedding on both sender and receiver, and field-upgradeable firmware, delivering seamless integration and reliability in continuous-use environments.

Build Your Next USB-C KVM Extender Solution with Confidence

Leverage Gefen's technological prowess to build AV distribution and control solutions that demand pixel-perfect video quality and instantaneous device control. The GF-EXT-UCK-HBT3 exemplifies technical excellence by extending uncompressed 4K@60Hz 4:4:4 video, USB 2.0 KVM, analog audio, and RS-232 control up to 40m/131ft (or 70m/230ft at 4K@30Hz) over a single CAT6a cable, with HDCP 2.3 compliance and a built-in three-port USB hub for keyboards, mice, cameras, and touch panels.



Designed for professionals, this extender streamlines complex BYOD setups with bi-directional power over cable, EDID and HDCP management, audio de-embedding on both units, and up to 60W of laptop charging delivered through the USB-C input, with a 3-year limited warranty for added peace of mind.
