VGA KVM over IP Receiver | VGA Extender with USB, RS-232, and Audio over LAN (EXT-VGAKVM-LANRX)

Name: VGA KVM over IP Receiver | VGA Extender with USB, RS-232, and Audio over LAN (EXT-VGAKVM-LANRX)
Brand: Gefen
SKU: EXT-VGAKVM-LANRX
Price: 514.0 USD
Availability: InStock

EXT-VGAKVM-LANRX

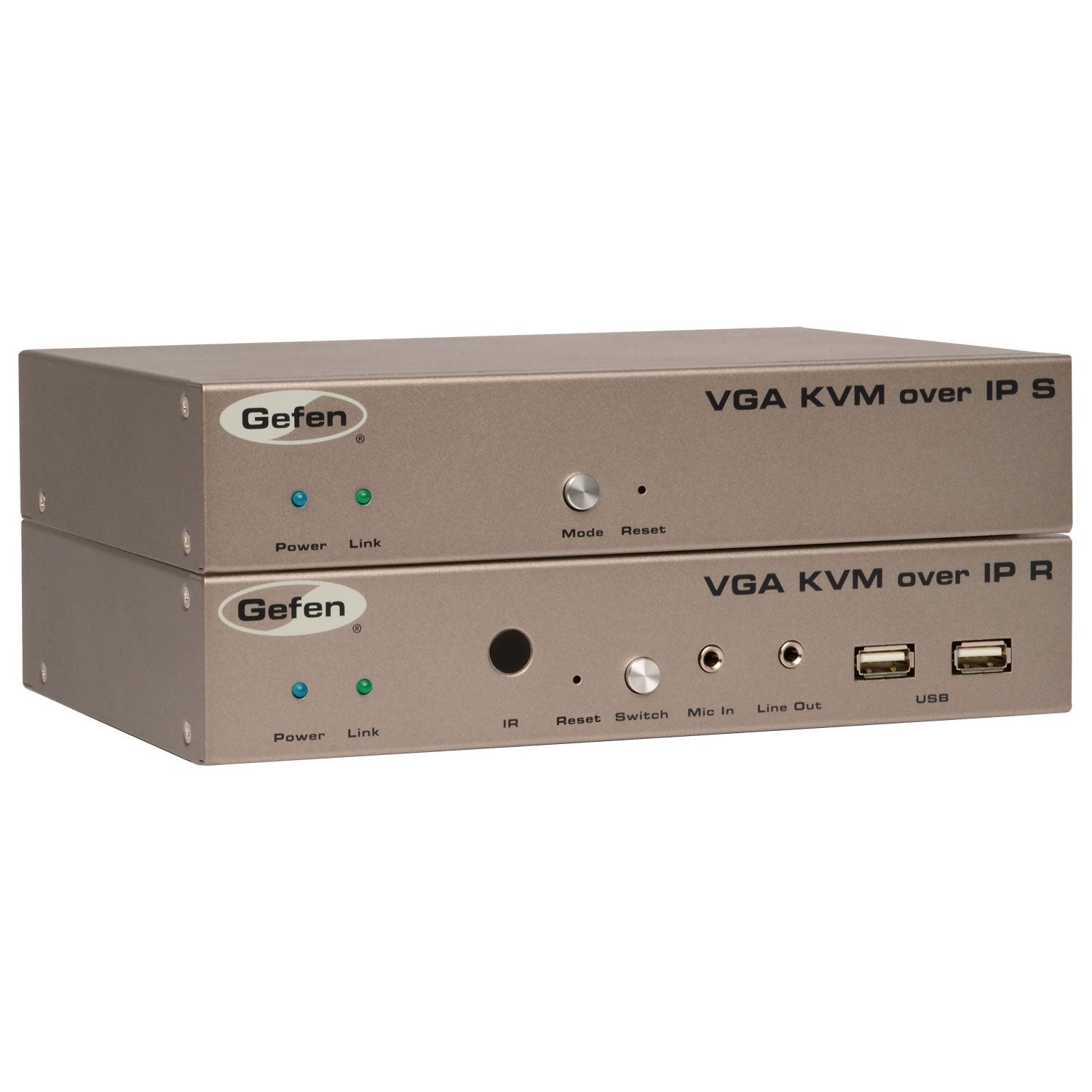

The Gefen VGA KVM over IP Receiver provides high-performance remote access to all your VGA sources over a standard Gigabit Local Area Network. This powerful receiver unit seamlessly extends VGA, USB, bi-directional analog audio, RS-232, and IR signals up to 330 feet (100 meters) from any compatible Sender unit on the network. By combining multiple receivers with any of Gefen's HDMI, DVI, or VGA senders, you can create a massively scalable virtual crosspoint matrix with over 65,000 units. Ideal for large-scale remote workstation access and professional digital signage applications, the VGA KVM over IP Receiver offers a flexible and intuitive solution for your AV and IT infrastructure.

⚠️Does not include EXT-VGAKVM-LANTX Sender. (Sold Separately)

$514.00

VGA KVM over IP Receiver | VGA Extender with USB, RS - 232, and Audio over LAN (EXT - VGAKVM - LANRX) - EXT - VGAKVM - LANRX - Gefen

Key Features

High-Resolution Video Extension: Supports resolutions up to 1920 x 1200 (WUXGA), ensuring sharp, crystal-clear video quality for professional applications.

Flexible Signal Distribution: Extends VGA, USB, RS-232, bi-directional stereo analog audio, and IR over your IP network using a standard Gigabit Local Area Network.

Massively Scalable KVM Matrix: Any Receiver can access any Sender on the network, supporting a total of just over 65,000 Sender and Receiver units to create a custom virtual matrix.

Integrated Gigabit Ethernet Switch: Features a built-in three-port Gigabit Ethernet switch, allowing for the connection of computers and other IP-enabled devices directly to the receiver.

High-Speed USB 2.0: Delivers two USB 2.0 ports for connecting keyboards, mice, and other peripherals, with data rates up to 480 Mbps and backward-compatibility with USB 1.1.

Intuitive Web Interface: A built-in Web server interface provides simple and intuitive control for all features, setup, and configuration.

Cross-Platform Compatibility: Works with any combination of Gefen KVM over LAN Senders and Receivers, including HDMI, DVI, and VGA models.

How It Works

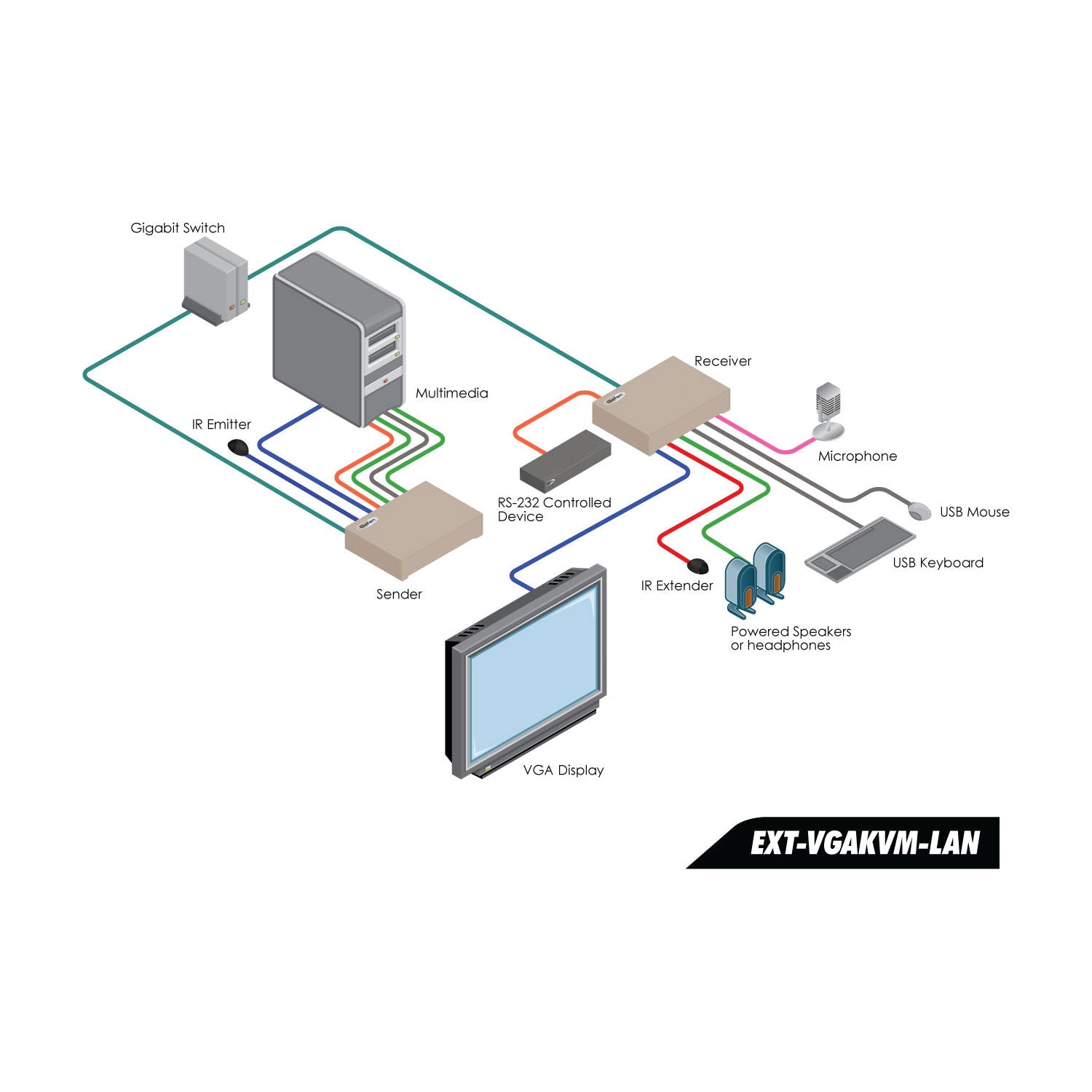

The Gefen VGA KVM over IP system operates with two core components: a Sender unit and one or more Receiver units. First, connect your computer or other VGA source, along with its USB, RS-232, and audio ports, to the Sender unit. The Receiver unit connects to your high-definition display, USB keyboard and mouse, and other peripherals at the remote workstation. The Sender and Receiver units link to each other either directly or through a Gigabit Ethernet switch using a single CAT-5e or better cable up to 330 feet (100 meters). By adding multiple Senders and Receivers to the network, you create a flexible and massively scalable 'virtual matrix,' allowing any connected workstation to use the web interface or front panel button to switch control between any source on the network.

Additional Information

Specifications

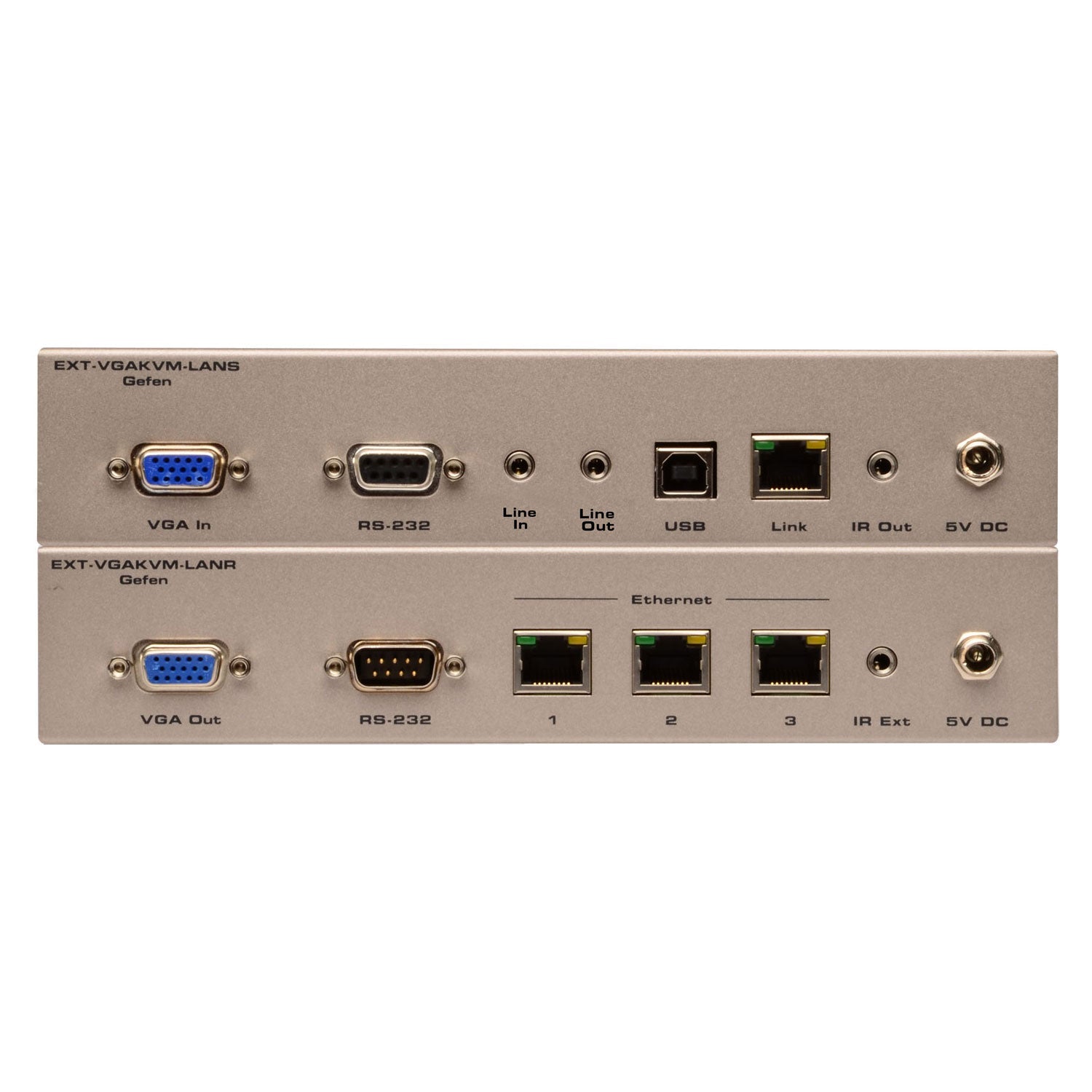

Video Output Connector: (1) VGA HD-15, female

Mic Input: (1) 3.5mm mini-stereo jack

Line Output: (1) 3.5mm mini-stereo jack

USB Device Connectors: (2) USB Type A, female

RS-232 Connector: (1) DB-9, male

IR Extender Input: (1) 3.5mm mini-stereo jack

Ethernet Connectors: (3) RJ-45, shielded

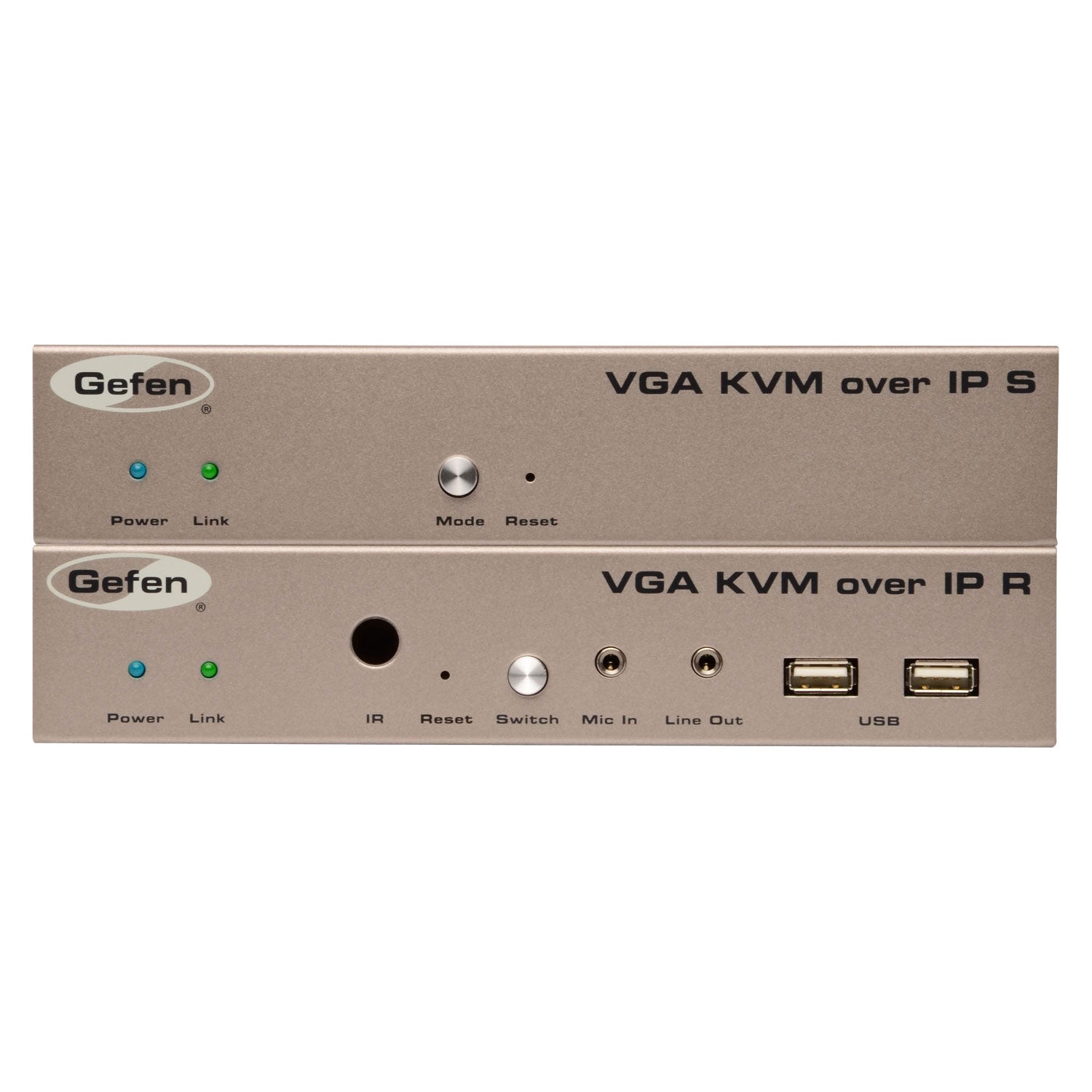

Controls: (1) Switch button (tact-type), (1) Reset button (recessed)

Indicators: (1) Link LED (green), (1) Power LED (blue)

Power Supply: 5V DC, locking

Power Consumption: 10W (maximum)

Dimensions (W x H x D): 8.4" x 1.7" x 4.5" (213mm x 43mm x 113mm)

Shipping Weight (EXT-VGAKVM-LANRX): 4.6 lbs. (2.0 kg)

UPC: 845344042060

System Requirements

A Gigabit switch is required.

The Gigabit switch must support 8k jumbo frame packets for multicast mode to operate.

If the LAN is not dedicated exclusively to Gefen KVM-LAN products, a managed switch is highly recommended.

Connection between units requires CAT-5e or better cables, with a maximum length of 330 feet (100 meters).

What's in the Box

(1) VGA KVM over IP (Receiver unit)

(2) Mounting brackets with screws

(1) 5V DC power supply

(1) Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-VGAKVM-LAN Datasheet
Gefen EXT-VGAKVM-LANRX Manual
Gefen EXT-VGAKVM-LANRX Declaration of Conformity
