VGA to DVI Scaler/Converter with 1080p and WUXGA Support (EXT-VGA-DVI-SC)

Name: VGA to DVI Scaler/Converter with 1080p and WUXGA Support (EXT-VGA-DVI-SC)
Brand: Gefen
SKU: EXT-VGA-DVI-SC
Price: 460.95 USD
Availability: InStock

EXT-VGA-DVI-SC

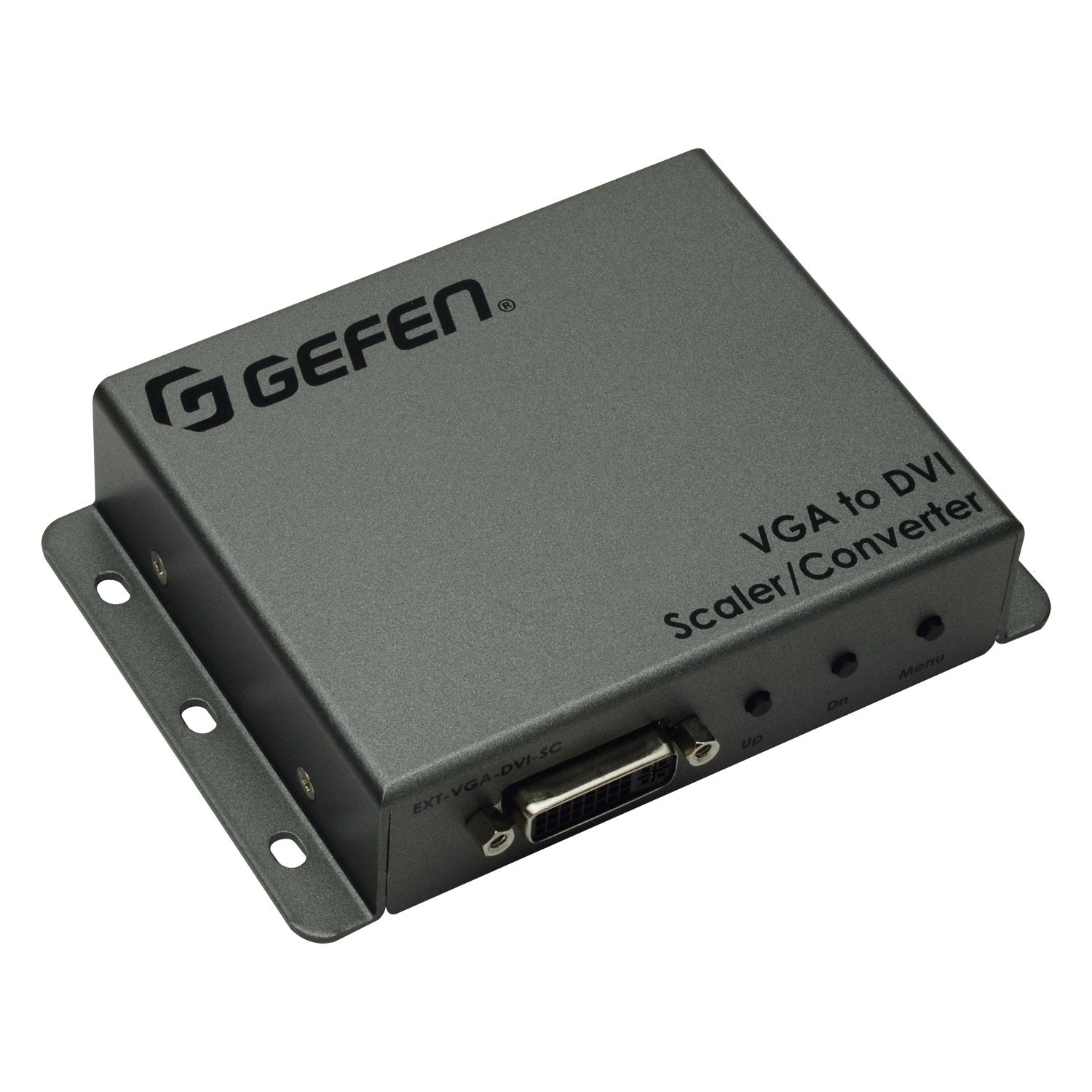

The Gefen EXT-VGA-DVI-SC is a high-performance VGA to DVI scaler and converter designed to seamlessly integrate analog VGA sources with modern digital DVI displays. This versatile unit scales incoming video to pristine output resolutions up to 1080p Full HD and 1920x1200 (WUXGA), ensuring a crisp, clear image on your DVI monitor. Configuration is made simple through an intuitive on-screen display (OSD) menu, while the powerful Gefen Syner-G™ software suite allows for advanced management, custom input timings, and easy in-field firmware updates. With a flexible wide-range power supply and a compact, surface-mountable enclosure, this scaler is the ideal solution for professional AV installations in studio, mobile, and commercial environments.

$460.95

VGA to DVI Scaler/Converter with 1080p and WUXGA Support (EXT - VGA - DVI - SC) - EXT - VGA - DVI - SC - Gefen

Key Features

High-Resolution Scaling and Conversion: Converts analog VGA signals to digital DVI and scales input resolutions up to 1920x1200 (WUXGA) to perfectly matched output resolutions up to 1080p60 and 1920x1200.

Intuitive On-Screen Display: Features a comprehensive on-screen display (OSD) menu for easy, push-button setup and control of all video parameters.

Flexible Aspect Ratio Control: Includes settings for Full Screen, Panoramic, Letter/Pillar, and Extract/Crop to ensure proper image display across various sources and screens.

Integrated Test Pattern Generator: A built-in test pattern generator aids in quick system configuration and troubleshooting without needing an active source.

Gefen Syner-G™ Software Support: The USB port enables connection to the Gefen Syner-G™ software suite, which simplifies in-field firmware updates and allows for advanced EDID management, including the use of custom input timings.

Professional Installation Features: Engineered for demanding environments with a wide operating power range (6V to 24V DC) , a locking power supply connector for secure connections , and a surface-mountable enclosure.

How It Works

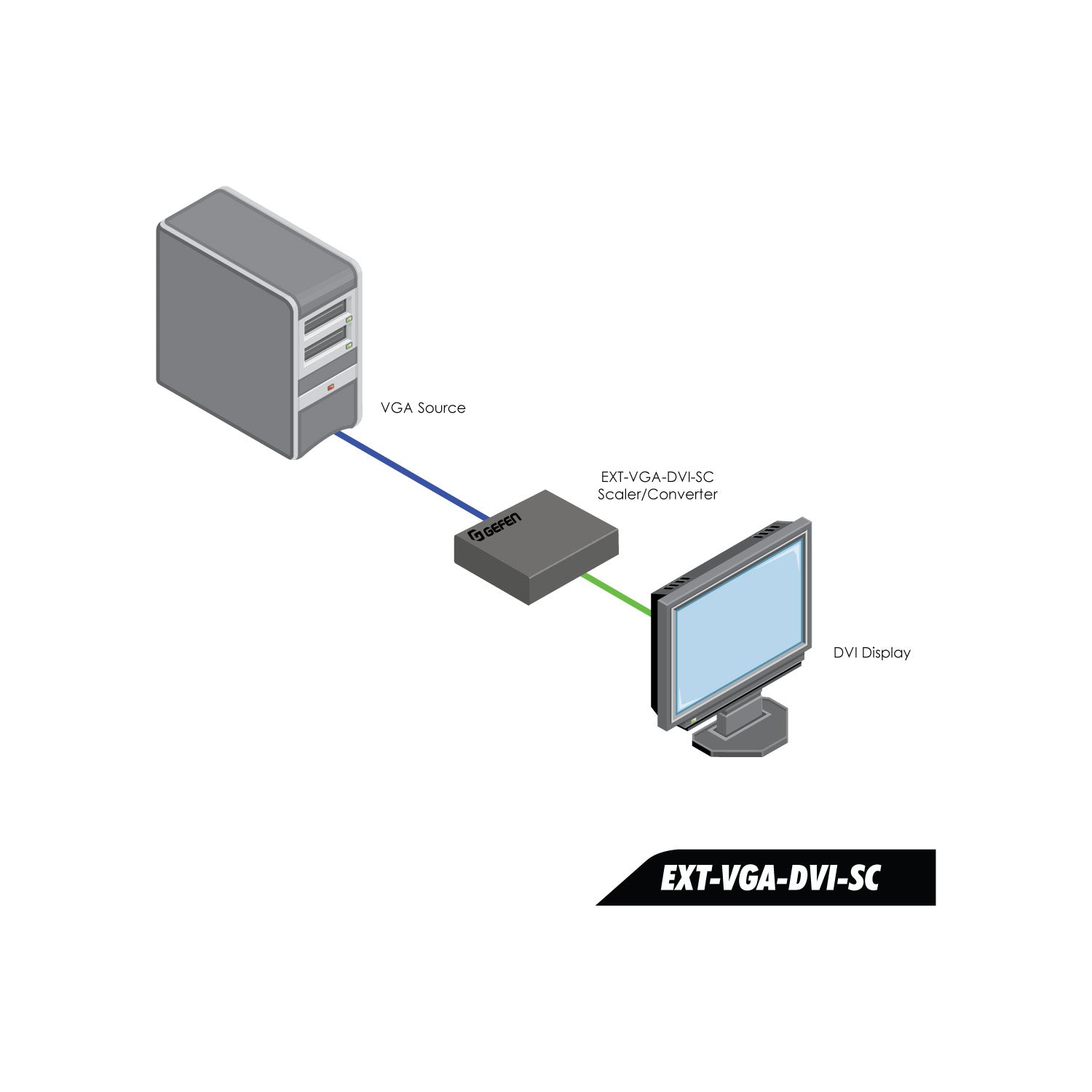

To operate the VGA to DVI Scaler/Converter, begin by connecting your computer or other VGA source to the VGA In port using the included 6 ft. VGA cable. Next, use a DVI cable to connect the DVI Out port to your DVI display. Secure the included 12V DC locking power supply to the unit and plug it into an available electrical outlet; the power indicator LED will illuminate in blue to confirm the unit is active. Once a video signal is present, you can press the Menu button on the unit to access the On-Screen Display (OSD), which allows you to navigate and adjust all video settings using the Up and Dn buttons to perfectly match the source to your display.

Additional Information

Specifications

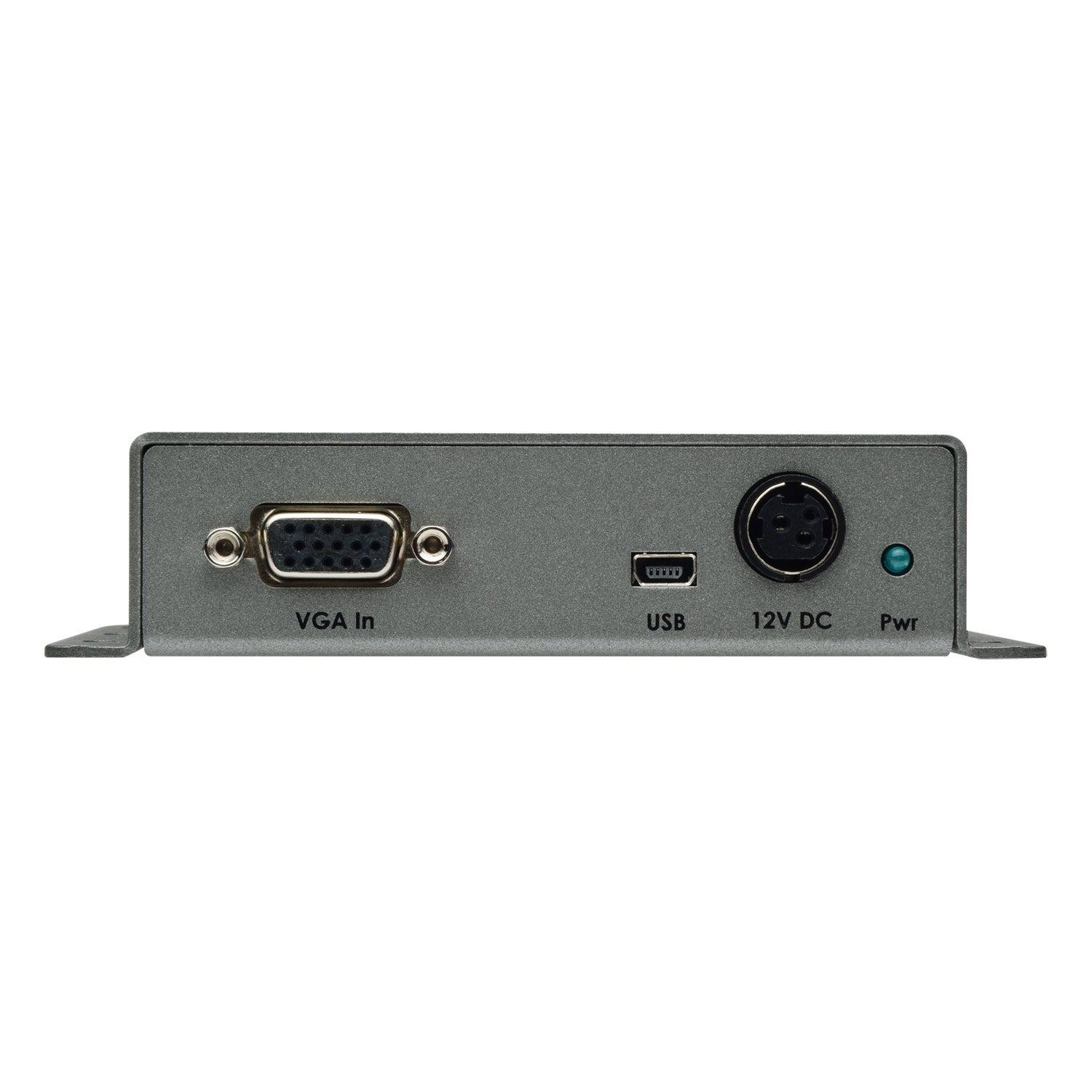

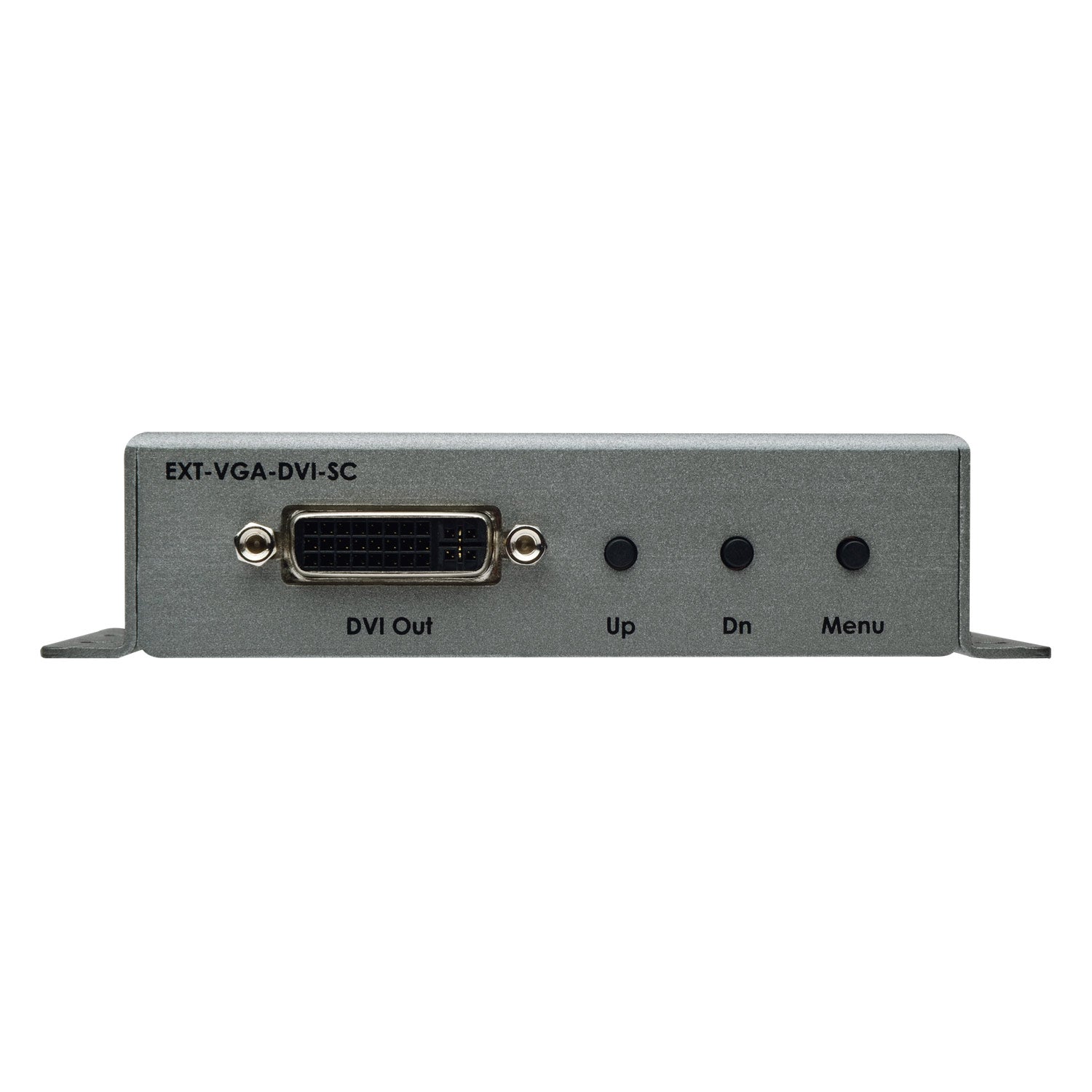

Connectors, Controls, and Indicators

Video Input: 1 x VGA HD-15, female
Video Output: 1 x DVI 29-pin, female (digital only)
USB: 1 x USB Mini-B, female
Menu Navigation: 3 x push button, tact-type (Menu, Up, Dn)
Power Receptacle: 1 x 3-pin, locking
Power Indicator: 1 x LED, blue

Operational

Maximum Pixel Clock: 165 MHz
Maximum TMDS Clock: 165 MHz
Power Input: 12V DC (nominal), 6V to 24V operating range
Power Consumption: 2W (max.)
Operating Temperature: +32 to +122°F (0 to +50°C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185°F (-20 to +85°C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 Hours

Physical

Dimensions (W x H x D): 4.9" x 1" x 3.2" (123mm x 26mm x 82mm)
Unit Weight: 0.4 lbs (0.2 kg)

UPC: 888814063073

System Requirements

For Basic Operation:

A video source with a VGA output.
A display with a DVI input.
A DVI cable (not included).
An available electrical outlet for the power supply.

For Advanced Configuration and Firmware Updates:

A computer running the Gefen Syner-G™ Software Suite.
A mini-USB-to-USB cable (not included) to connect the scaler to the computer.

What's in the Box

1 x VGA to DVI Scaler/Converter

1 x 6 ft. VGA cable (M-M)

1 x 12V Power Supply

1 x Quick-Start Guide

Warranty

3 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-VGA-DVI-SC Datasheet
Gefen EXT-VGA-DVI-SC Manual
Gefen EXT-VGA-DVI-SC Declaration of Conformity
