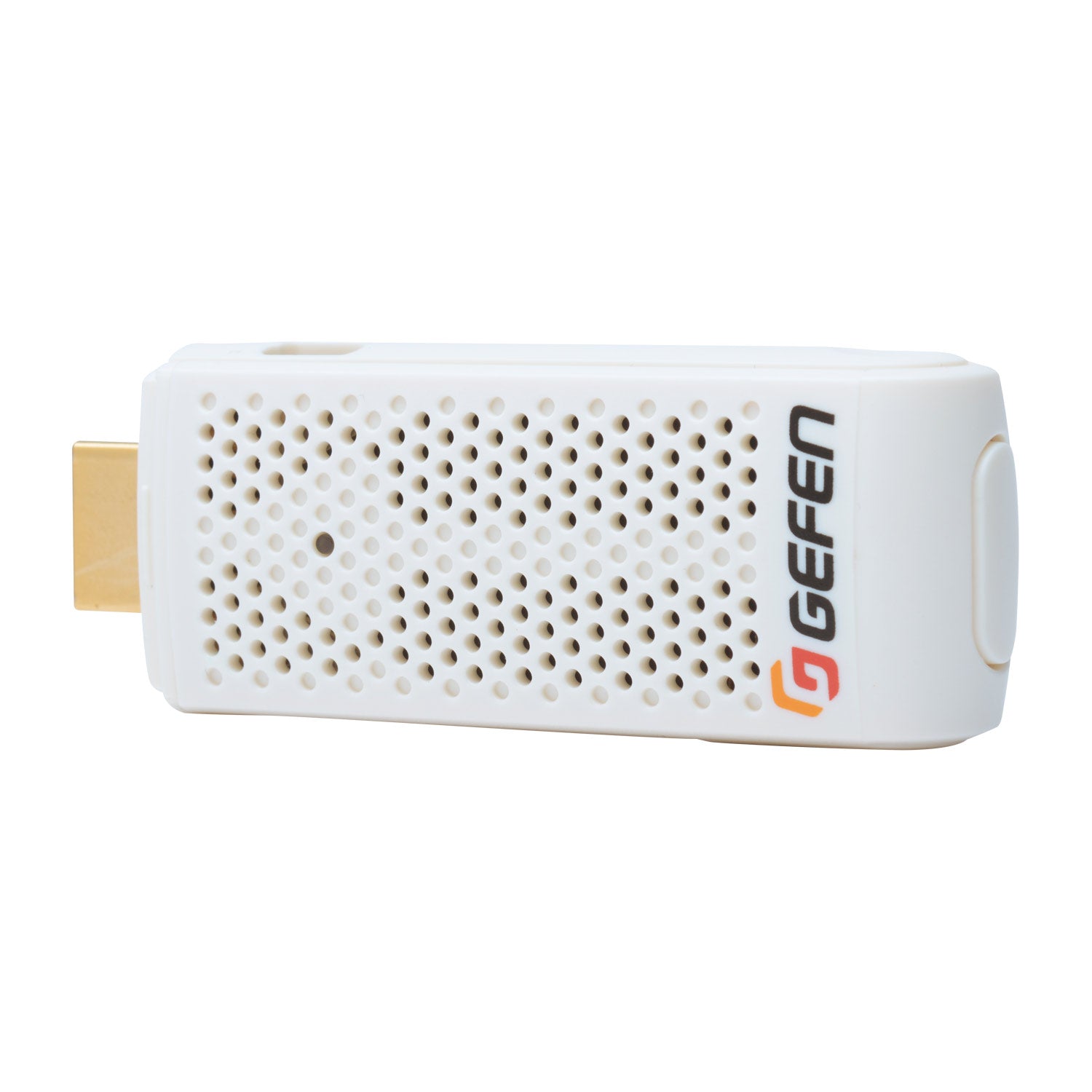

Wireless for HDMI 5 GHz Short Range Sender Unit (EXT-WHD-1080P-SR-TX)

Name: Wireless for HDMI 5 GHz Short Range Sender Unit (EXT-WHD-1080P-SR-TX)
Brand: Gefen
SKU: EXT-WHD-1080P-SR-TX
Price: 309.75 USD
Availability: InStock

EXT-WHD-1080P-SR-TX

The Gefen Wireless for HDMI 5 GHz SR (Short Range) Extender system sends high-definition audio and video to any HDTV screen up to 33 feet (10 meters) away. It extends HDCP-compliant HDMI A/V content from sources like computers, game consoles, set-top boxes, and Blu-ray players to a remote display, supporting resolutions up to 1080p Full HD and 7.1-channel LPCM audio. The system includes a compact "Stick" Sender that connects directly to an HDMI port and can be powered via USB, making it ideal for connecting portable devices like laptops and cameras. Paired with a receiver, this system provides a flexible, high-quality solution for conference rooms and home theaters where temporary connections are frequently needed.

⚠️Comes with Sender only. EXT-WHD-1080P-SR-RX is required (sold separately).

$309.75

Wireless for HDMI 5 GHz Short Range Sender Unit (EXT - WHD - 1080P - SR - TX) - EXT - WHD - 1080P - SR - TX - Gefen

Key Features

Wireless HD Extension: Wirelessly extends HDMI signals up to 33 feet (10 meters).

High-Resolution Video: Supports resolutions up to 1080p Full HD, ensuring crystal-clear video quality.

Immersive Audio Support: Delivers up to 7.1 channels of LPCM digital audio and up to 5.1 channels of Dolby® and DTS® formats.

Non-Line-of-Sight Transmission: Transmits effectively through obstacles without requiring a direct line-of-sight between the sender and receiver.

Full HDMI Feature Support: Provides pass-through for 3DTV, HDCP, and Lip Sync.

Lossless Quality: Transmits uncompressed High Definition A/V from the source to the display with less than one frame of latency.

Secure Connection: Features AES 128 Encryption to protect the wireless signal.

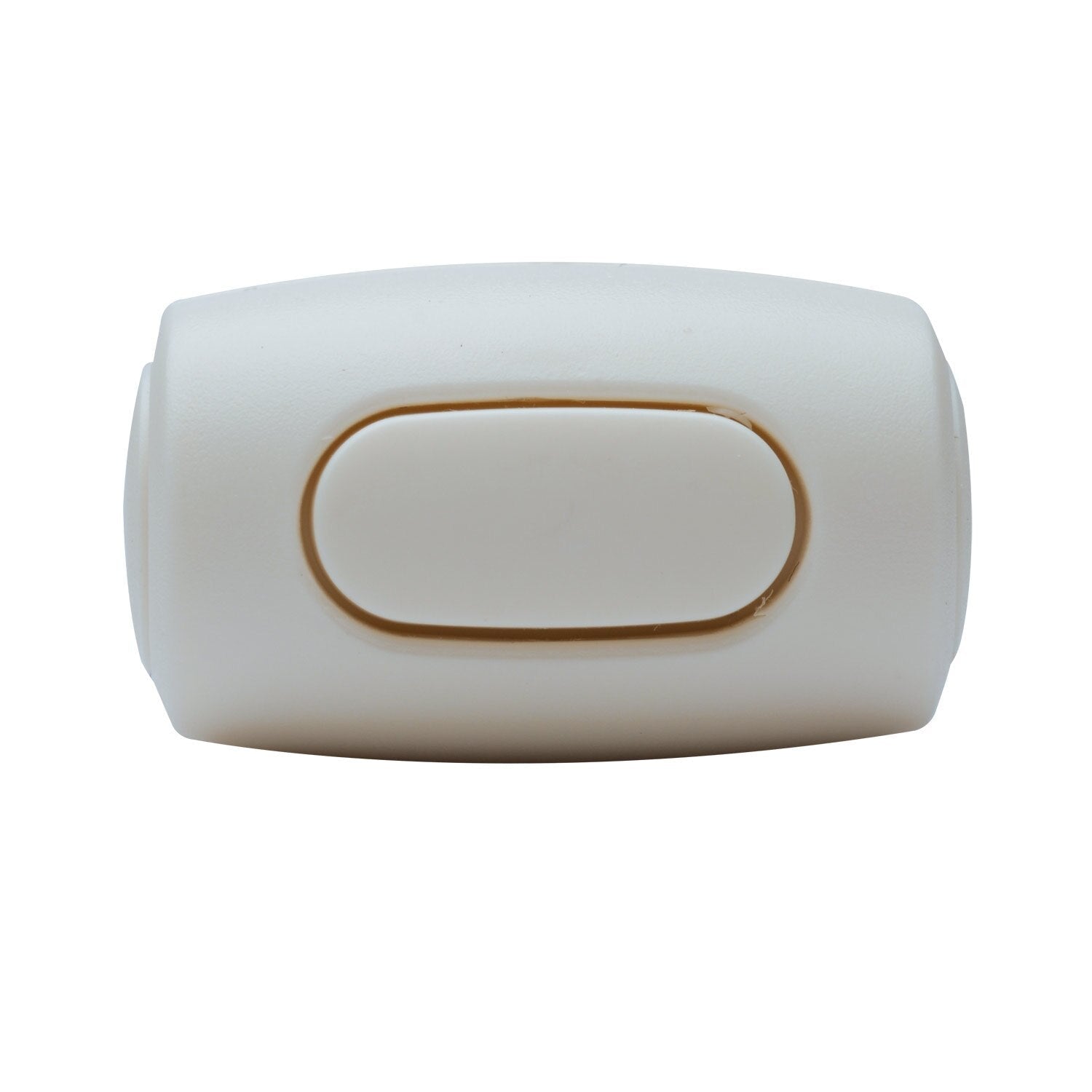

Compact Sender Design: The small "Stick" sender connects directly to an HDMI port and can be powered by a USB port or the included power supply.

Multi-Sender Capability: Allows up to 8 Sender units to be paired with a single Receiver unit for easy source switching.

Firmware Upgradable: The unit's firmware can be updated via its Mini-USB port using the Gefen Syner-G™ software.

How It Works

The Gefen Wireless for HDMI 5 GHz Short Range system operates with two main components: a Sender unit and a Receiver unit. First, connect the compact Sender unit directly to the HDMI port of your HD source, such as a presentation laptop or camera. The Sender can be powered either from a USB port on the source device or with the included 5V DC power supply. The Receiver unit connects to your HD display via an HDMI cable. Once powered on, the Sender wirelessly transmits the uncompressed audio and video signal to the Receiver on the 5 GHz frequency band, displaying your content on the screen from up to 33 feet (10 meters) away. For multi-source environments, up to eight Sender units can be registered to a single Receiver, allowing you to easily switch between different sources using the included IR remote control.

Additional Information

Specifications

Operational

Channel Frequencies (US): 5.19 GHz, 5.230 GHz, 5.755 GHz, 5.795 GHz (Maximum four Receivers)
Channel Frequencies (EU): 5.19 GHz, 5.230 GHz (Maximum two Receivers)
Maximum Senders per Receiver: 8
Power Input: 5V/2A DC
Power Consumption (Sender): 3W (max.)
Operating Temperature: +32 to +104 °F (0 to +40 °C)
Operating Humidity: +10 to +85%, RH (non-condensing)
Storage Temperature: +14 to +140 °F (-10 to +60 °C)
Storage Humidity: +5 to +90%, RH (non-condensing)

Connectors

Video Input Connector (Sender): (1) HDMI Type A, 19-pin, male
Power Connector (Sender): (1) USB Mini-B

Physical

Dimensions (W x H x D): 1.2" x 0.65" x 3.2" (30mm x 16mm x 80mm)
Unit Weight: 0.06 lbs (0.03 kg)
Shipping Weight (EXT-WHD-1080P-SR-TX): 0.6 lbs (0.3 kg)

UPC: 888814401318

System Requirements

An HD source with an HDMI output port.
A power source, which can be either a USB port on a computer or an available electrical outlet for the 5V DC power supply.
A Gefen Wireless for HDMI 5 GHz Short Range Receiver unit (EXT-WHD-1080P-SR-RX)

What's in the Box

1 x Wireless for HDMI 5 GHz Short Range (Sender unit)

1 x 5 ft USB-to-Mini B cable

1 x 1.5 ft USB-to-Mini B cable (angled)

1 x 5V DC power supply

1 x Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-WHD-1080P-SR Sender-Receiver System Manual
Gefen EXT-WHD-1080P-SR Sender-Receiver System Data Sheet
Gefen EXT-WHD-1080P-SR-TX Declaration of Conformity
